Once suitable location is determined, drill the hole and
secure the stereo using the metal mounting bracket.
If the bracket needs to be shorted,
remove the appropriate
number of breakaway
segments using a pair
of pliers.
Mounting Bracket

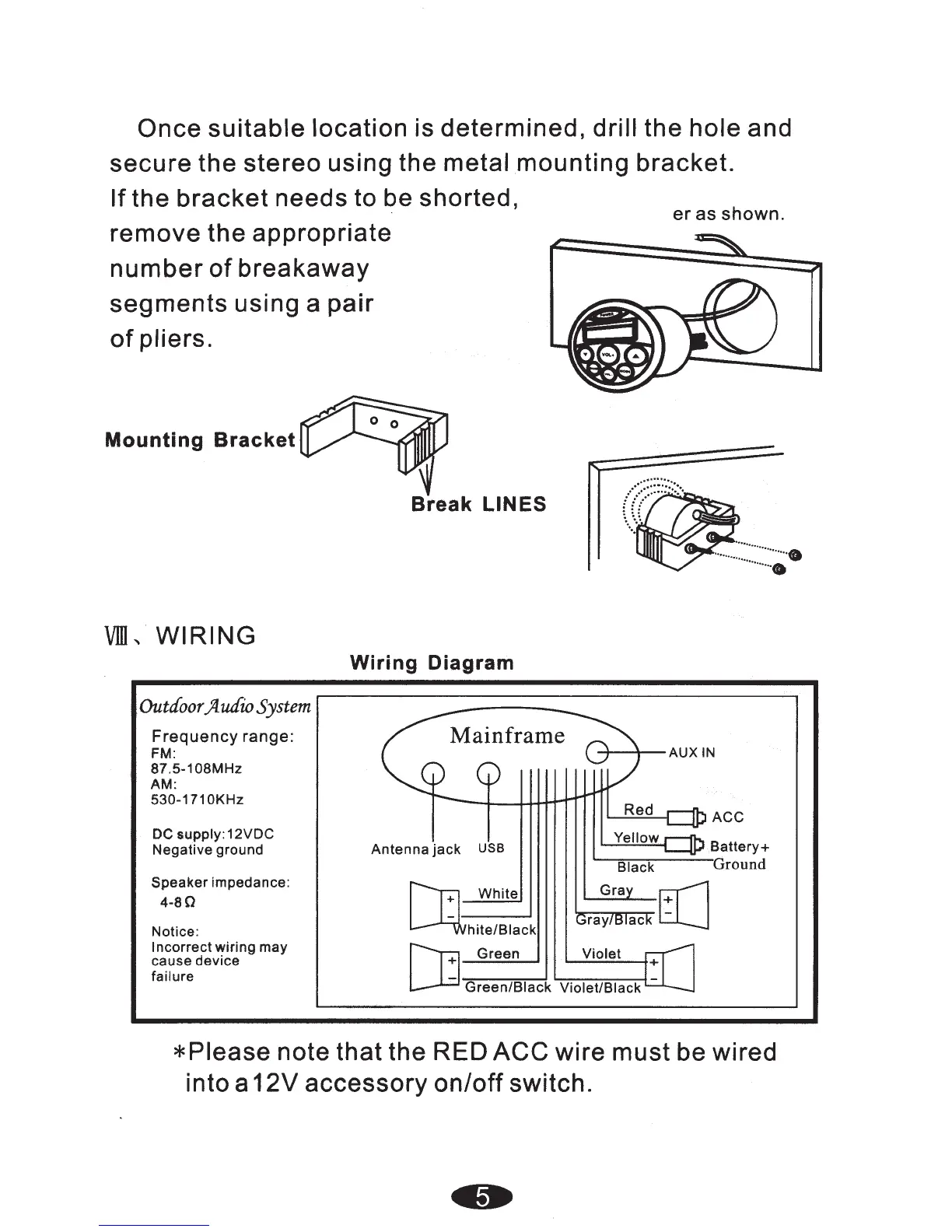

Vlll, WIRING
Outaoor }ltufio System
Frequency range:
FM:
87.5-108MHz
AM:
530-171 OK Hz
DC supply: 12VDC
Negative ground
Speaker impedance:
4-80
Notice:
Incorrect wiring may
cause device
failure
Break LINES
Wiring Diagram
Antenna jack USB
11+1- White
L-J..:Jvhite/Biack
eras shown.
((.~/'"' · :::·.
·.• .
.. . ..... ::::: :::·· ··· .. . .... .
.......
Red
ACC
*Please note that the RED ACC wire must be wired
into a
12V accessory on/off switch.
