Prostat PSP2100 User Manual
5
of 1
of 1 rating
24 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
7

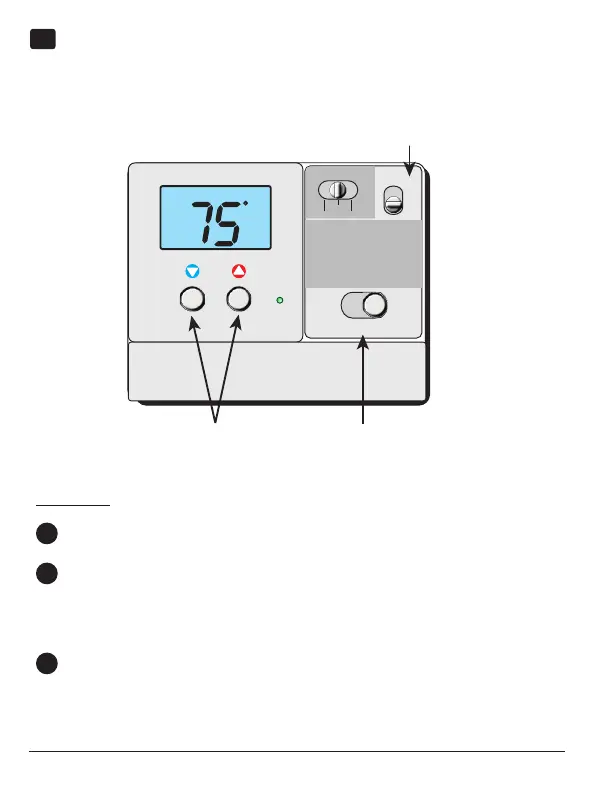

Installer Guide
1
Select Cool or Heat with the Mode Switch.
2
Normally leave the fan s
witched to
Auto.
In Fan
Auto, the fan will turn on only with a heat or cool demand.
When Fan On is selected,
the fan will run continuously
.
3
Adjust the desired set temperature with the
COOLER and
W
ARMER buttons.
Operation
2
Normal Operation
COOLER &
WA
RMER
BUT
TO
NS
HE
AT
BATTERIES
COOL
OFF
FA
N
HE
AT
AU
TO
ON
On or
Auto
FA
N SWITCH
MODE SWITCH
Cool, Of
f,
or Heat
AUX HE
AT
NORM
EMRGC’Y LOCKOUT
6
8
Table of Contents
Table of Contents
3
Safety Warnings
4
About Your Thermostat
5
Front Panel
5
Display
6
Normal Operation
7
Fahrenheit or Celsius
8
Aux Heat
9
Preparation and Installation
10
Remove Old Thermostat
10
Battery Replacement
11
Wire Connections
12
Thermal Insulating Sheet
13
Sample Wiring Diagrams
14
Sample Wiring Diagrams for PSP1100
14
Sample Wiring Diagrams for PSP2100
16
Jumper Configuration
17
Test Operation
18
Troubleshooting
20
Warranty
21
5
Based on 1 rating
Ask a question
