TEKTINO AC-200-dual USER MANUAL V2.30
7
/14

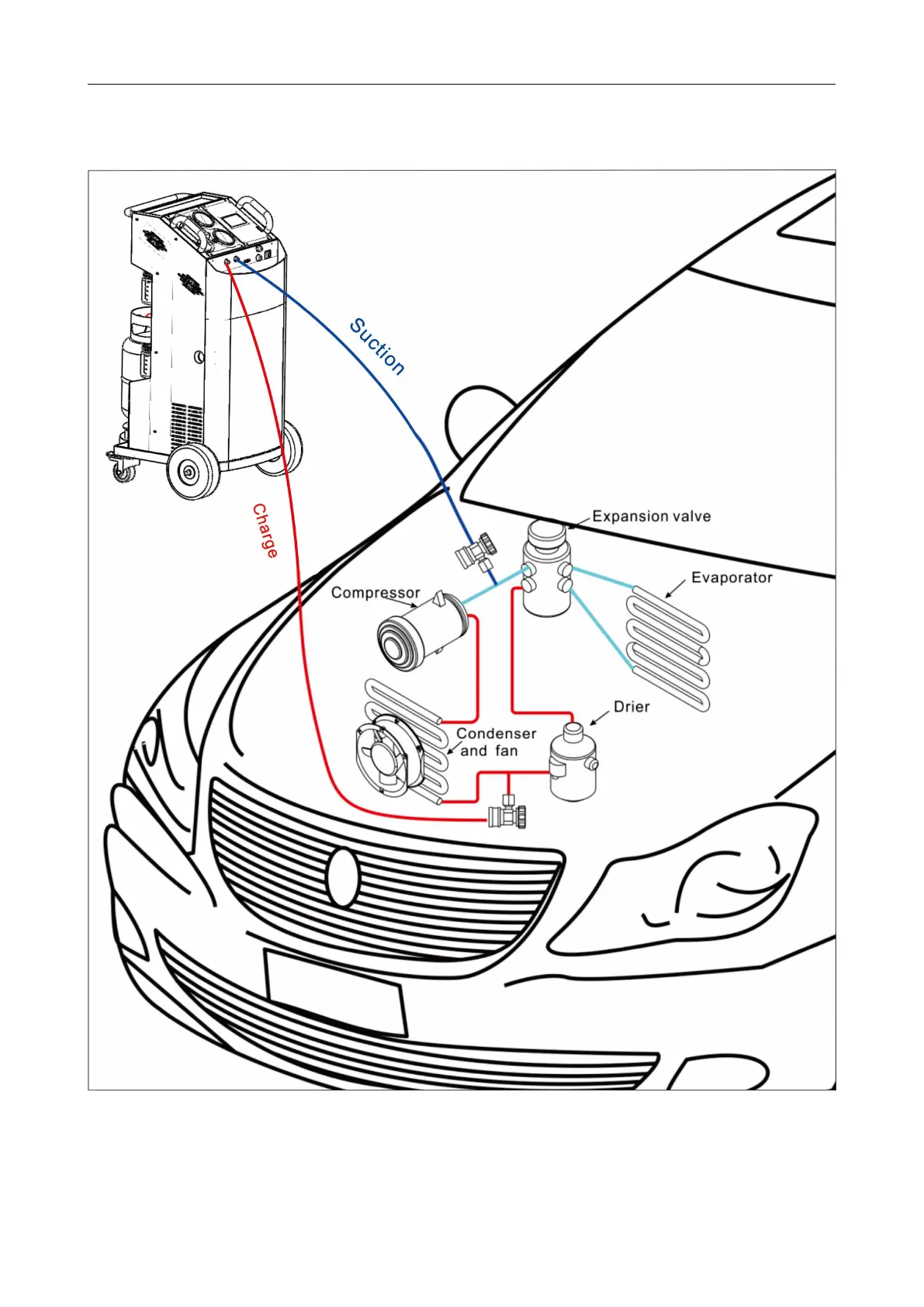

Equipment Connection (For recovery/vacuum/oil injection/charge/Auto. Mode)
Warning: Except the situations clearly stated in the manual, during all equipment operations, please maintain
the vehicle engine and A/C off, otherwise unexpected damages may be caused.
