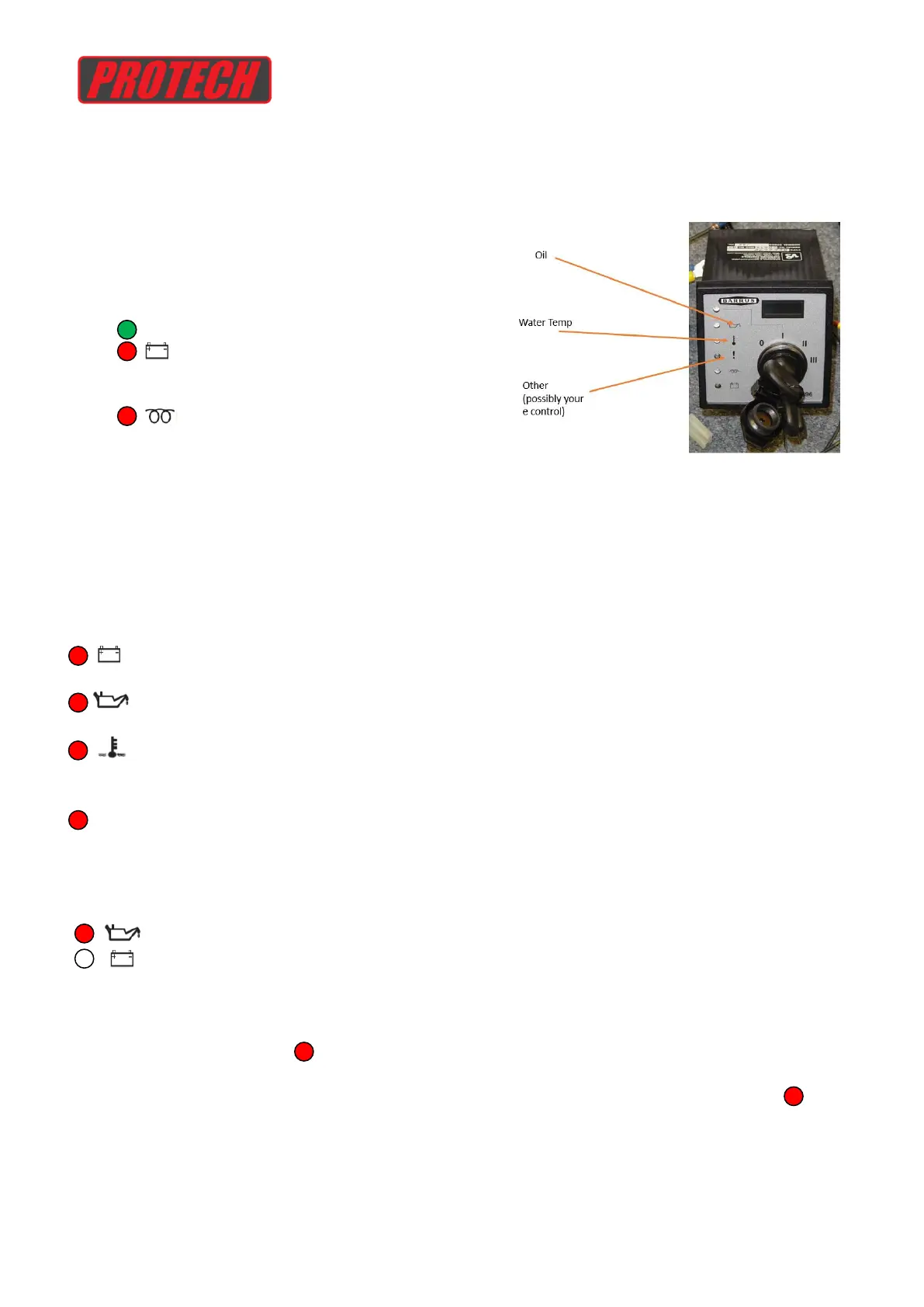

Engine control box.
Normal operation
“0” : standby
“I” : LED on top
energise battery
“II” : pre-heating
is on
“III” : engine kick-starts, release to position “I”
Engine monitoring / issues
In the event of an engine shutdown, the fuel solenoid de-energises and the engine stops.
The appropriate LED displays.
Battery charge fail (battery or alternator) / flashes if fan belt fails
Low oil pressure (pressure sensor)
High engine temperature (temp sensor) / Cooling fault (radiator defect) /
Engine shut down without standard fault (running out of fuel or other)
! Emergency button was hit / e-circuit is open
If position “I” > 25 seconds
Without cranking and running the engine, the control module with shutdown
ON
WILL EXTINGUISH,
If the key switch is held in position at start up, the starter will automatically disengage at
600 RPM. If engine does not reach 600 RPM despite staying on position “III” for 25 s, the
engine will shutdown and ! will display. Return key to “0”.
If the engine has run >25 s, and key switch is turned to “III”, engine will shutdown and !
will display. Return key to “0”.
