21
M5 X 5 Set screw
Vis allen
Stelschroef
Gewindestifte
Joint cup
Noix de cardan
Aandrijfhuls
Antriebsgelenk
T54.016
7 X 19 X 6 mm
ball bearing
Roulement à billes
Kogellager
Kugellager
T54.064
Gear box
Carter
T
andwielkast
Getriebe gehäuse
T54.001
Bevel gear (small)
Pignon conique (petit)
T
andwiel (klein)
Kegelzahnrad (Klein)
T54.024
7 X 19 X 6 mm
ball bearing
Roulement à billes
Kogellager
Kugellager
T54.064
M3 X 3 Set screw
Vis allen
Stelschroef
Gewindestifte
M3 X 3 Set screw
Vis allen
Stelschroef
Gewindestifte
Gear box
Carter
T
andwielkast
Getriebe gehäuse
T54.001
Stabilizer ball end
Rotule de barre
stabilisatrice
Kogel voor torsi-
estang
Kugel für Stabi-
lisator
4 X 20mm T/P screw (counter sunk)
Vis (Tête conique)
Zelftapschroef (Verzinkkop)
Blechschraube (Senk)
Rear stabilizer
Barre stabilisatrice arrière
Stabilisatorstang achter
Stabilisator hinten
T54.045

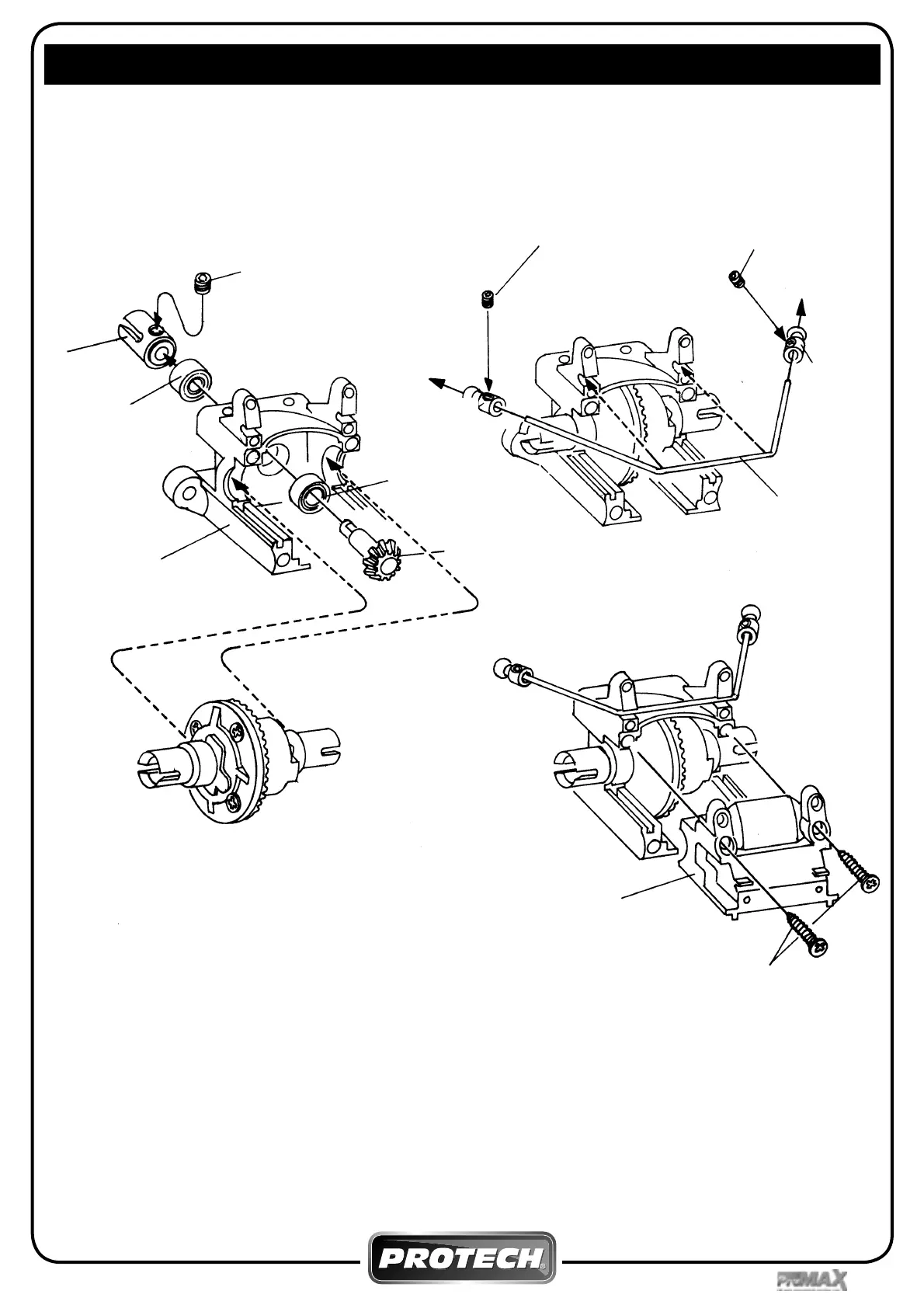

Assembly of the rear gearbox and stabilizer / Montage van de achterste versnelling /
Assemblage du réducteur AR / Montierung des Getriebe hinten
20
22
Table of Contents
Safety Precautions
2
Before Driving Checks
2
Maintenance
2
Assembly
2
Tools Required
3
Assembly of the Front and Rear Shock Absorbers
6
Mounting of the Front and Rear Shock Absorbers
7
Installing the Servos
8
Installing the Receiver and Receiver Battery
8
Switch and Antenna Installation
8
Mounting of the Tank
9
Mounting of the Brake Levers
9
Throttle and Brake Linkage
10
Tuned Pipe Assembly
11
Finishing
12
Painting
12
Assembly of the Front and Rear Shocks
13
Assembly of the Differential (X3)
14
Assembly of the Differential (X2)
14
Table of Contents
15
Assembly of the Spur Gear
15
Assembly of the Brake Joint Cup
15
Disque de Frein Remschijf Bremsscheibe
15
Assembly of the Center Diff and Brake Unit
16
T54.028
16
T54.033
16
T54.032
16
T54.022
16
Assembly of the Front Gearbox and Shock Stay
17
Assembly of the Front Steering Knuckles
17
Assembly of the Front Suspension
18
Assembly of the Front Stabilizer
20
Assembly of the Front Shocks
20
Assembly of the Rear Gearbox and Stabilizer
21
T54.064
21
Noix de Cardan Côté Frein
21
Assembly of the Rear Up-Right
22
Assembly of the Rear Suspension Arms
23
Assembly of the Rear Shocks
24
Assembly of the Servo Saver
25
Assembly of the Steering Tie Rod
25
Assembly of the Servo Tie Rod
25
Mounting of the Front Suspension
27
Mounting of the Rear Suspension
27
Buiding the Clutch
28
Assembly of the Air-Filter
28
Installation of the Engine
29
Assembling the Radio Plate
30
Assembly of the Radio Plate and Throttle Linkage
31
Assembling the Plastic Side Guards
32
Connecting the Fuel Tubing
33
Assembly of the Front Stiffener
33
Assembly of the Front Steering Rod
33
Align Throttle Servo and Brake
34
Mounting the Body Posts
34
Mounting the Wing
35
Exploded Diagram and Parts List
36
2-Speed Gearbox Instructions
38
2 Speed Gear Ration Combinations
39
Bodies
40
2-Speed Gearbox Parts
41
