protech ProMAX User Manual

- 38

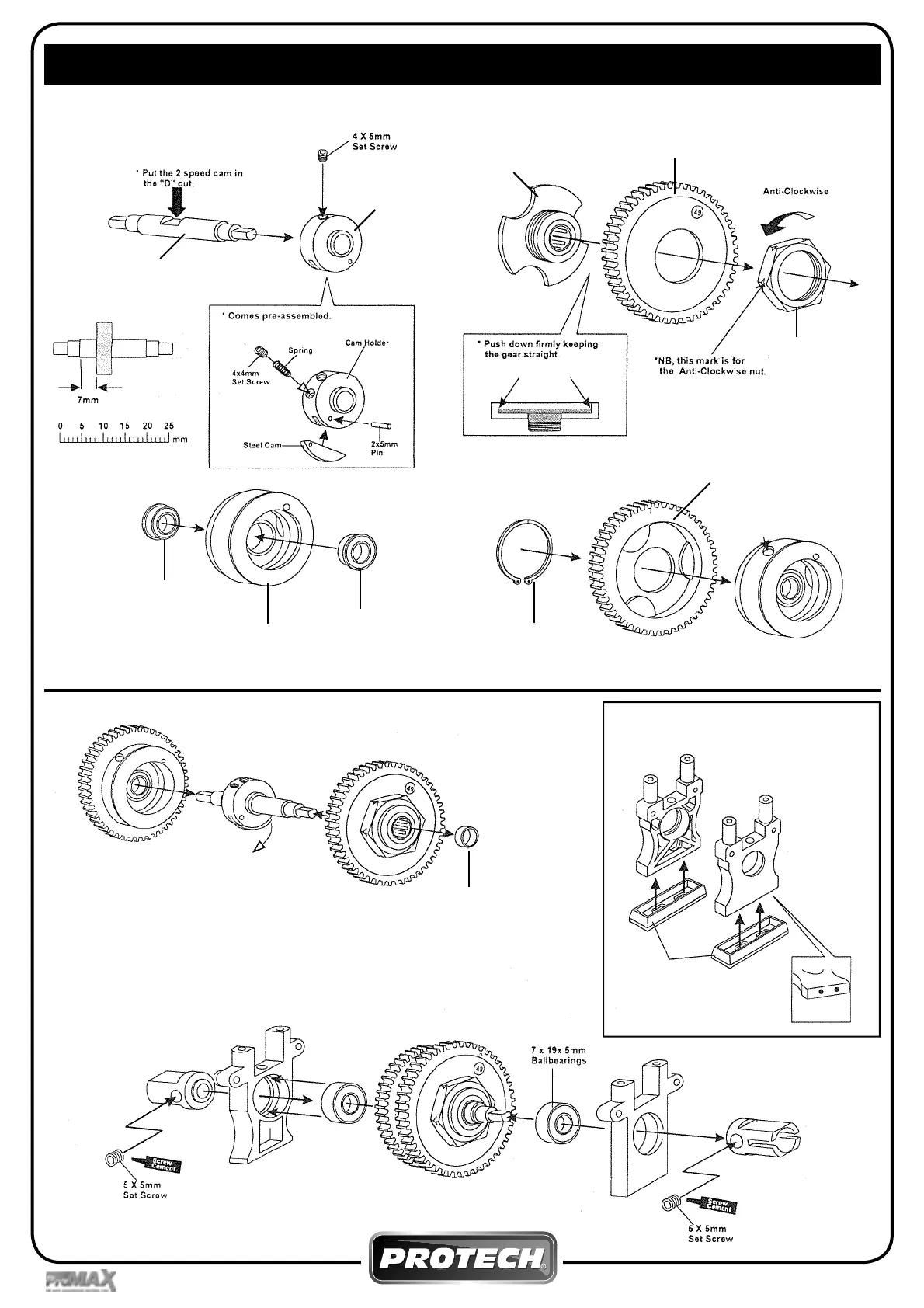

2-speed gearbox instructions (optional part) / Instructies voor een tweeversnellingsbak (in optie) /
Boîte de vitesse à 2 rapports (en option) /
Center gear shaft
T54.503
Clutch cam
T54.506
1St Spur Gear Holder
(One-Way)
T54.504
1St Spur Gear 49T
T54.511
Alum. Nut
T54.507
Push bearing into the gear holder.
•
8x12mm Flange
Ballbearing
T54.509
8x12mm Flange
Ballbearing
T54.509
2nd Spur Gear Holder
(Ballbearing type)
T54.505
18mm E-Ring
T54.508
2nd Spur gear 45T
T54.512
Adjustment Hole
For some car kits come with new center diff.mount,
please put the center diff. mount adapter under the
center diff. mount.
Note the direction.
If the Cam Holder is installed around the wrong way, the
transmission won’t shift and you will hear a clicking sound
when driving.
Respectez le sens de rotation.
Si la pièce est installée dans le mauvais sens, la transmis-
sion ne se fera pas et vous entendrez des “CLICS” quand
vous roulerez.
•
ATTENTION
8x10x3mm Alum. Ring
T54.509
Note: The holes for the rear diff.
mount are closer together.
Use ballbearings that
comewith your car.
•
•
