Chapter 2 Hardware Configuration
Prox-1260 USER ′ S MANUAL
Page: 2-7

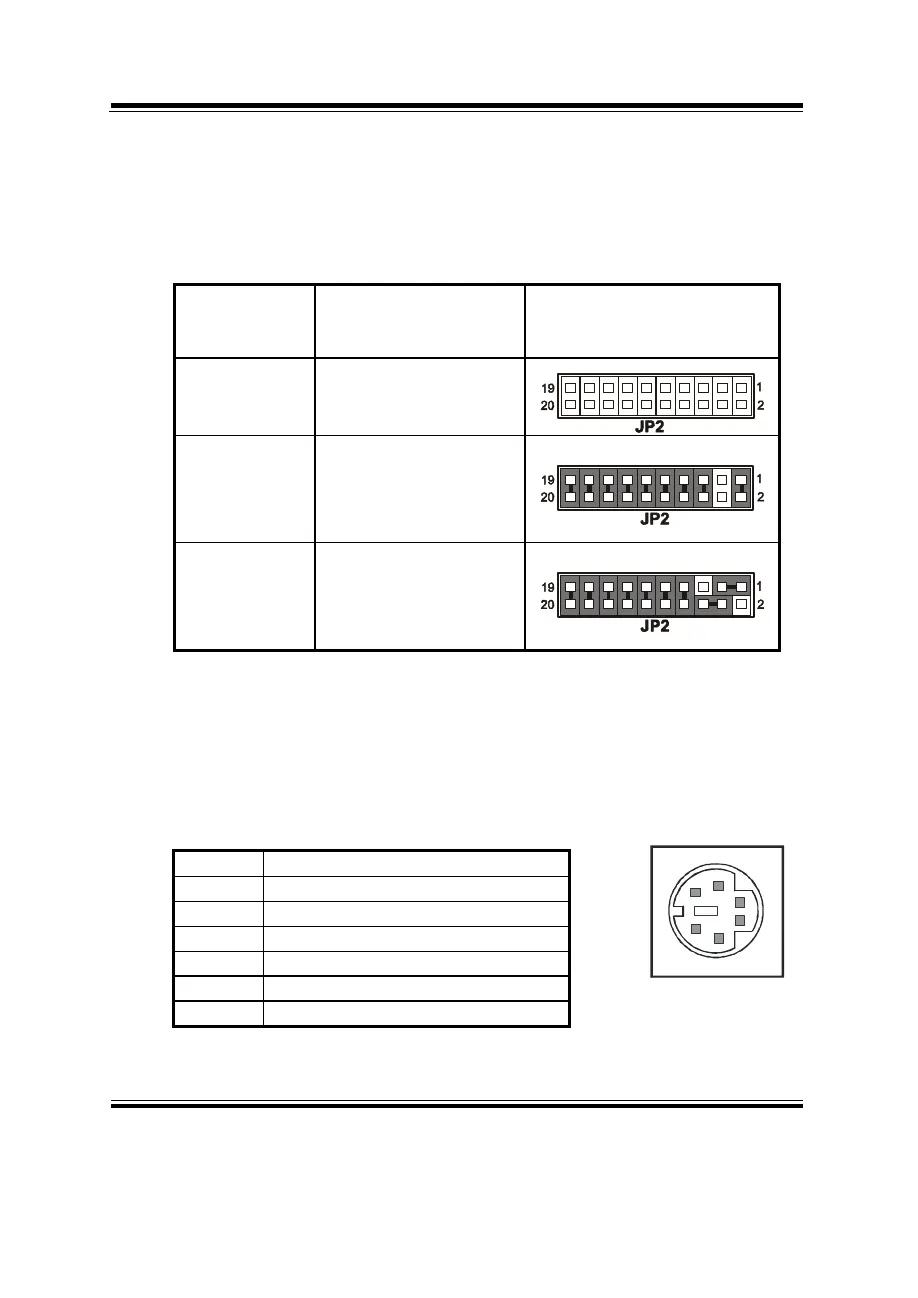

2-5. RS232/422/485 (COM2) SELECTION
JP2 : RS-232/422/485 Selection
COM2 is selectable for RS-232, 422, 485 function.
The jumper settings are as follows :
COM 2
FUNCTION
JUMPER SETTING
(pin closed)
JUMPER
ILLUSTRATION
RS-232
Open
RS-422
1-2, 5-6, 7-8, 9-10
11-12, 13-14, 15-16
17-18, 19-20
RS-485
1-3, 4-6, 7-8, 9-10
11-12, 13-14, 15-16
17-18, 19-20
*** Manufactory default --- RS-232.
2-6. KEYBOARD/MOUSE CONNECTOR
KB1 : Keyboard/Mouse Connector
The jumper settings are as follows:
PIN ASSIGNMENT
1 KBDATA
2 MSDATA
3 GND
4 KBVCC
5 KBCLK
6 MSCLK
1
2
34
5
6
KB1
