Chapter 2 Hardware Configuration
Page: 2-20
Prox-1260 USER
′ S MANUAL

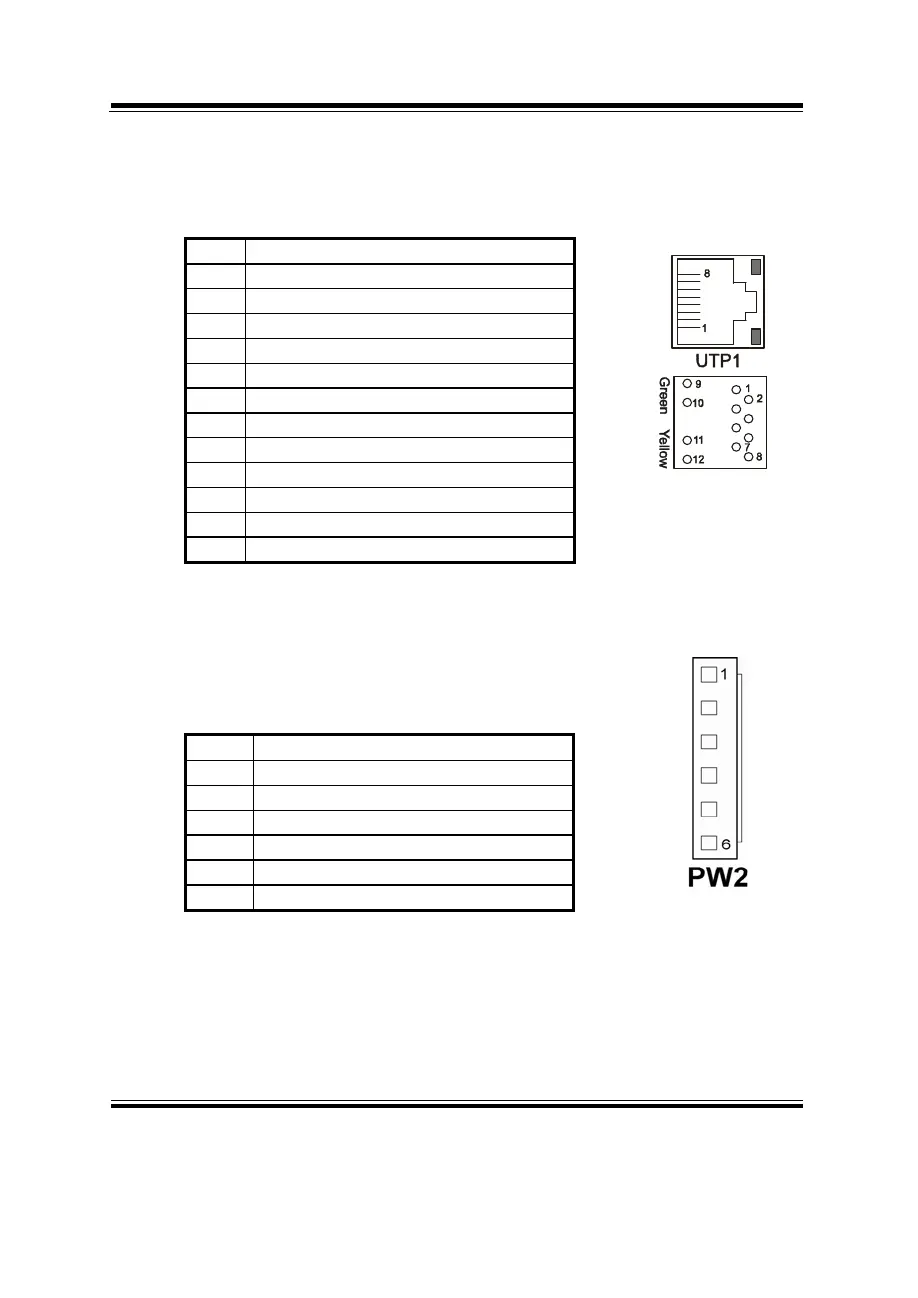

2-26. LAN CONNECTOR
UTP1 : LAN Connector
The pin assignments are as follows:
2-27. ATX POWER CONNECTOR
PW2 : Power Connector
The pin assignments are as follows :
PIN ASSIGNMENT
1 VCC
2 GND
3 +12V
4 5V_SB
5 GND
6 VCC
PIN ASSIGNMENT
1 TX+
2 TX-
3 RX+
4 ISOLATED GND
5 ISOLATED GND
6 RX-
7 CT
8 CT
9 PULL HI
10 LED-Green (Speed)
11 PULL HI
12 LED-Yellow (Link)
