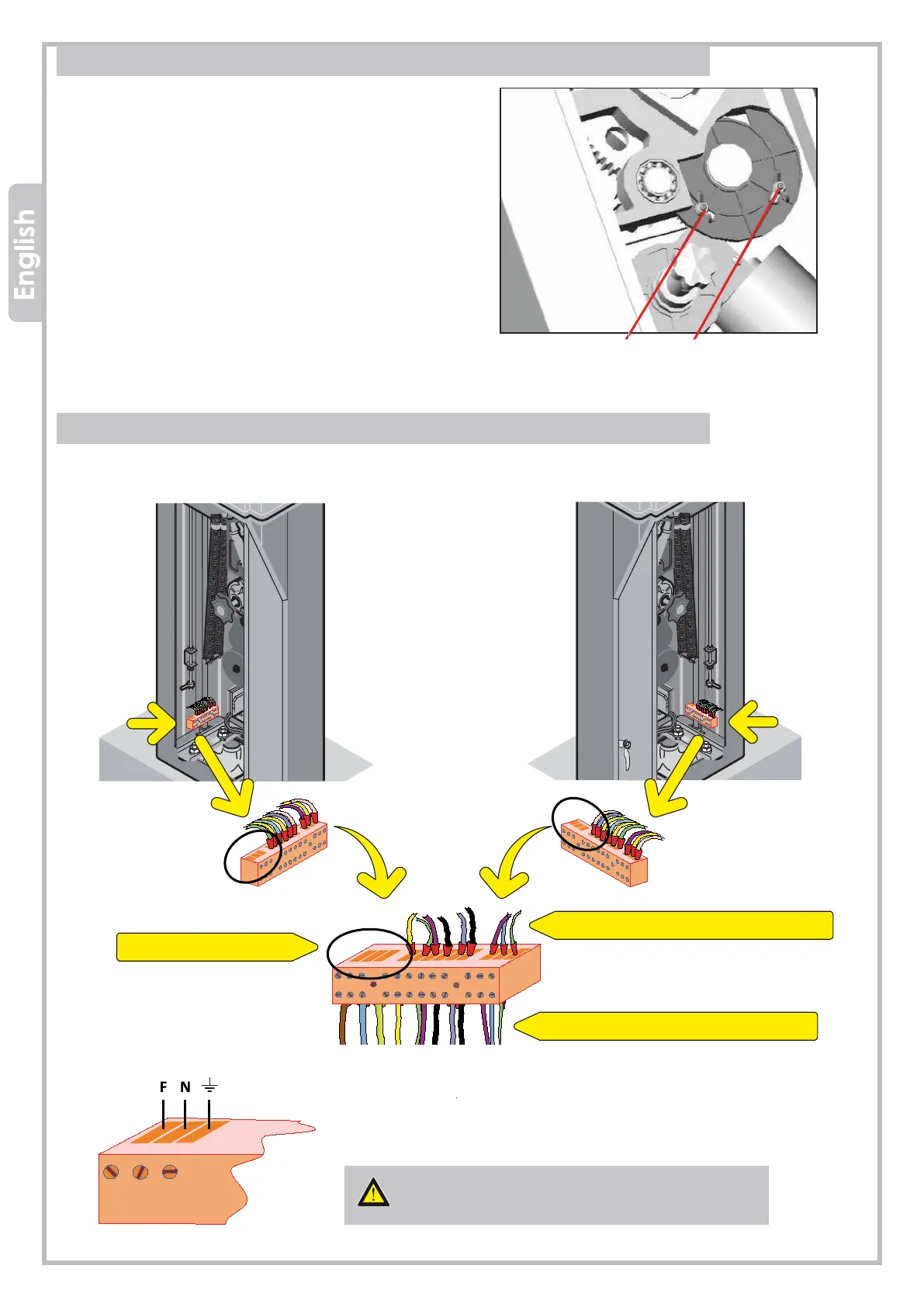

7. LIMIT SWITCHES
The barrier comes with both magnetic and mechanical
limit switches, pre-set by factory.
Normally it is not necessary to adjust them.
However if this were the case, see how to proceed as
shown in the below picture:
CLOSING position OPENING position
8. MAIN POWER (230V + GROUNDING)
The barrier can be powered both 230V and 115V AC, and main power has to be wired as shown in the below picture:
LH BARRIER - control unit positioned on the left RH BARRIER - control unit positioned on the right
Factory wiring
Main power
Factory wiring
Terminals are partially factory prewired, just wire Phase, Common
and Ground as shown below:
Always wire the GROUND!
The ground wire section has to be of the same
size of Phase and Common wires.
