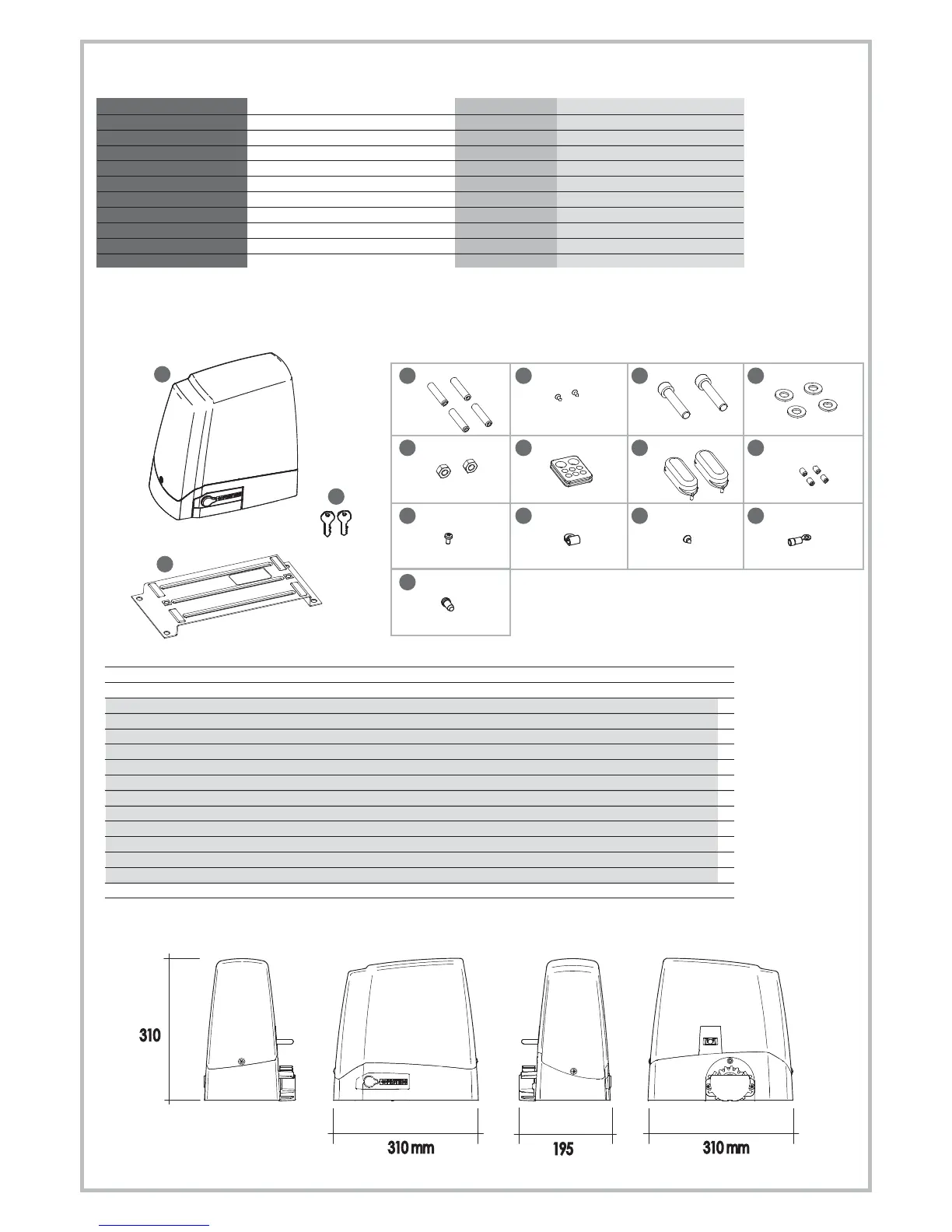

Proteco MEKO - 2.1 Technical Specifications; 2.1 PACK CONTENTS; 2.3 DIMENSIONS

1
2
16
13
3 4 5 6
7 8 9 10
11 12 14
15
195
310
310 mm 310 mm
Meko manuale 1_2011 2
2.1 Technical Specifications
Power Supply
Current
Motor Power
Capacitor
Thermic Protection
Maximum Thrust
Class IP Protection
Revolutions (speed)
Opening Speed
Gate Maximum Weight
Duty Cycleo
MEKO 5 MEKO 8 MEKO 4 MEKO 5 110V MEKO 8 110V
2.3 DIMENSIONS
2.1 PACK CONTENTS
1 Meko Gear motor
2 MPIS05 Anchor plate
3 MGR0840Z Grub screw 8x40
4 MVI3995E Screw 3,9x9,5 for cover
5 MVI1050CZ Screw Ø10 10x50 for motor-anchor plate fixing
6 MRO10Z Washer Ø10 for motor-anchor plate fixing
7 MDAM10Z Nut Ø10 for motor-anchor plate fixing
8 MPC06 Cable grommet SH70
9 MTP22 Slot-cover
10 MGR0610Z Limit bracket fixing screw 6x10 (for B102 metal rack only)
11 MVI0510BZ Screw TC 5x10 for cable-block
12 MBC01 Black cable block
13 MVI4895DZ Self-tapping screw 4,8x9,5 for lug
14 MFAG01 Yellow lug for earth system
15 MMA02 Limit-switch tip
16 Release Key
sacchetto accessori
230V ~ 50Hz 230V ~ 50Hz 24Vdc 110V ~ 60Hz 110V ~ 60Hz
1,2 - 1,7A 1,2 - 2A 0,7 - 10A 2 - 2,3A 2,8 - 3,2A
250W 300W 80W 280W 330W
8µF 10µF -- 30µF 30µF
150°C 150°C -- 150°C 150°C
350 N 440 N 350 N 380 N 460 N
44 44 44 44 44
1400 rpm 1400 rpm 1600 rpm 1700 rpm 1700 rpm
10,5 m/min 10,5 m/min 11 m/min 13 m/min 13 m/min
500 Kg 800 Kg 450 Kg 500 Kg 800 Kg
40% 40% 80% 40% 40%
