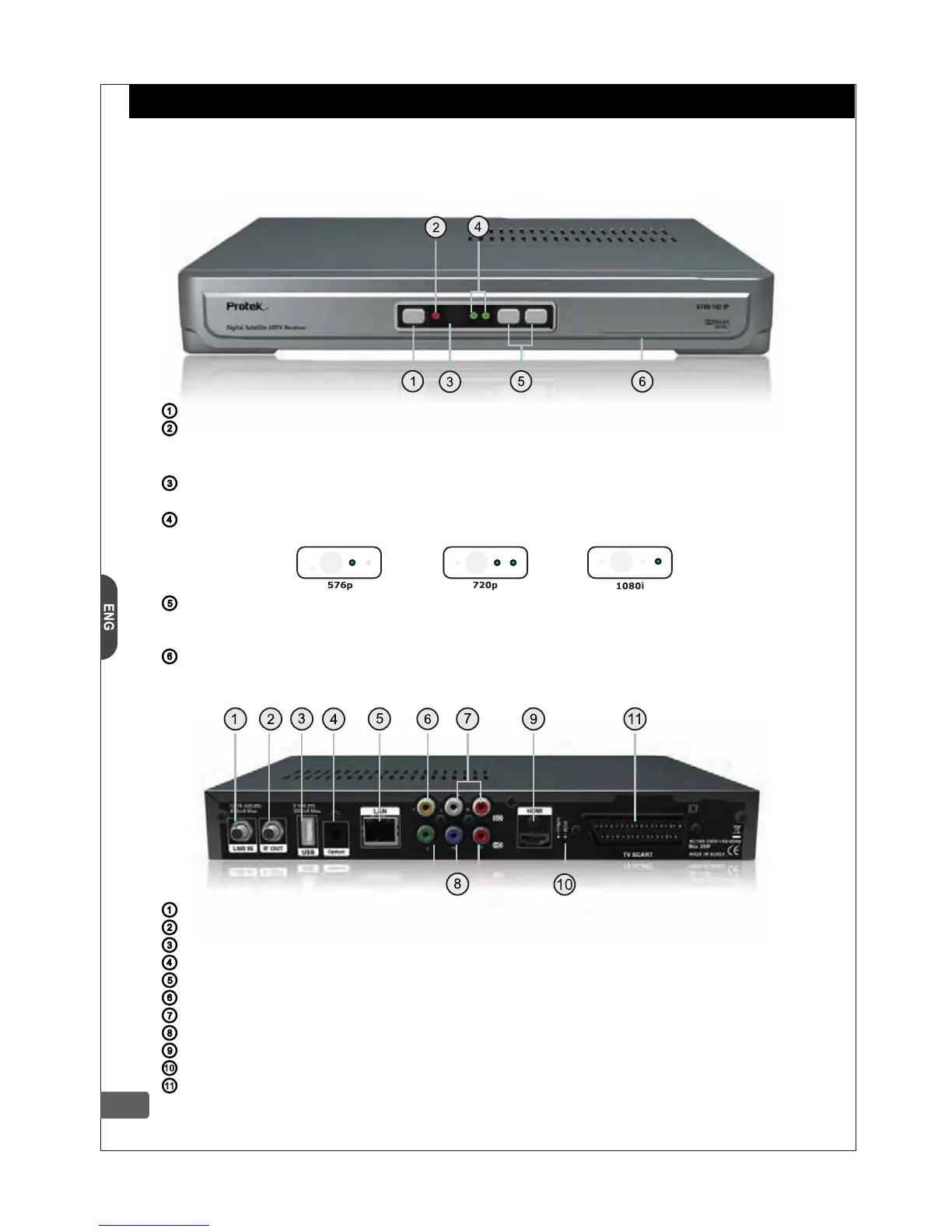

1-2. Rear Panel
LNB IN :Connect the satellite antenna cable from the LNB.
IF OUT :Connect to another digital satellite receiver.
USB :Connect USB Device such as USB Memory for software
upgrade or channel data exchange.
S/PDIF Optical :Output the S/PDIF Optical digital audio signal.
LAN :Connect Internet Cable.
VIDEO :Provide SD composite video output to the TV or VCR equipments.
AUDIO L/R :Provide stereo audio output to the TV or VCR equipments.
Y/Pb/Pr :Provide HD component video output to the TV or other equipments.
HDMI :Connect to the TV using HDMI Cable.
Output Select Switch :Select Output to HD YPbPr or SCART RGB
TV SCART :SCART Output to the TV or other equipments
1. Overview of the equipment
1
This section summarize HD-Receiver Buttons, Remote Control and the Terminals.
1-1. Front Panel
STAND-BY :
Press to turn the HD-STB on or Stand-by
POWER Indicator :Displays STB operation status. In Stand-by mode, STB will display
a RED light. In power on mode, the RED light will flash to acknowlege a
remote control key press.
Remote Sensor :
Infrared Remote Control sensor. To ensure reliable remote control operation,
do not place any objects in front of the sensor.
Video Display Mode Indicators :
Two green LEDs indicate the current HD video display
mode setting, LED combination.
UP / DOWN :Channel up or down movement. These two buttons also change the HD video
display mode. Press UP/DOWN button simultaneously more than 3 sec, then
VIDEO FORMAT menu will activate.
SMART CARD Slot : One SMART CARD Slot
