Protekt RJ200 - Page 17

DAVIT
INSTRUCTION MANUAL
EN 795:2012 Class B
Reference number:
RJ200
BEFORE USE READ THIS MANUAL CAREFULLY
edition: 3/25.02.2019 pl
p.
17

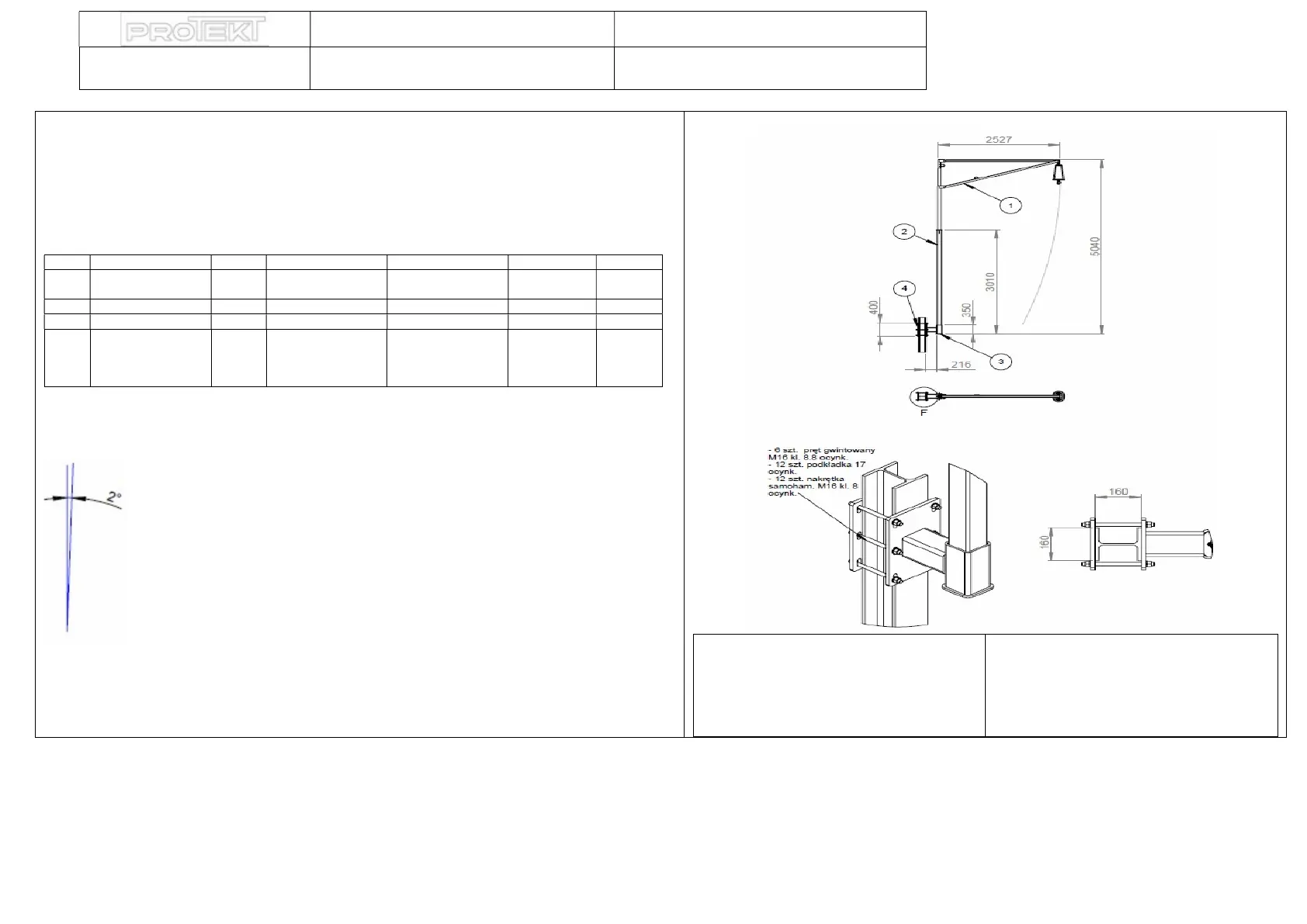

INSTALLATION OF THE DEVICE (Method of use no. 4)
Order of installation
Before installing the device RJ200 prepare necessary tools as follows:
• Hammer
• Spirit level
• Set of combination open-end wrenches
List of elements:
4
Płyta (Plate)
1
S235 (steel)
RJ200.11.002
11.900
3 Gniazdo boczne
(Side seat)
1 S235 (steel) RJ200.11.000 25.380
2
Gniazdo (Socket)
1
S235 (steel)
RJ200.05.000
76.400
1
Ramię (Arm)
1
S235
(steel)
RJ200.06.000
65.000
Nr.
częś.
(Part
No.)
Nazwa części /
zespołu
(Part / Assembly
name)
Sztuk
(pcs).
Materiał (Material) Nr rys. / Nr normy
(Drawing No /
Standard No)
Ciężar [kg]
(Weight)
Uwagi
(Notice)
1. Fix side seat “3” on column using plate “4” on vertical column (use it as a clamp).
Minimum requirements for column are given in the figure.
Plumb the mounted socket. Maximum deviation angle from the vertical cannot exceed 2°.
2. Mount rotary arm “1” in the previously mounted socket “3”.
3. The socket can be used several times by moving the arm between sockets.
Method of use no. 4
-6 szt. pręt gwintowany M16 kl. 8.8 ocynk.
- 12 szt. podkładka 17
ocynk.
- 12 szt. nakrętka samoham. M16 kl. 8
ocynk.
- 6 pcs. threaded rod M16 cl. 8.8
galvanized
- 12 pcs. washer 17
galvanized
- 12 pcs. self-locking nut M16 cl. 8
galvanized
