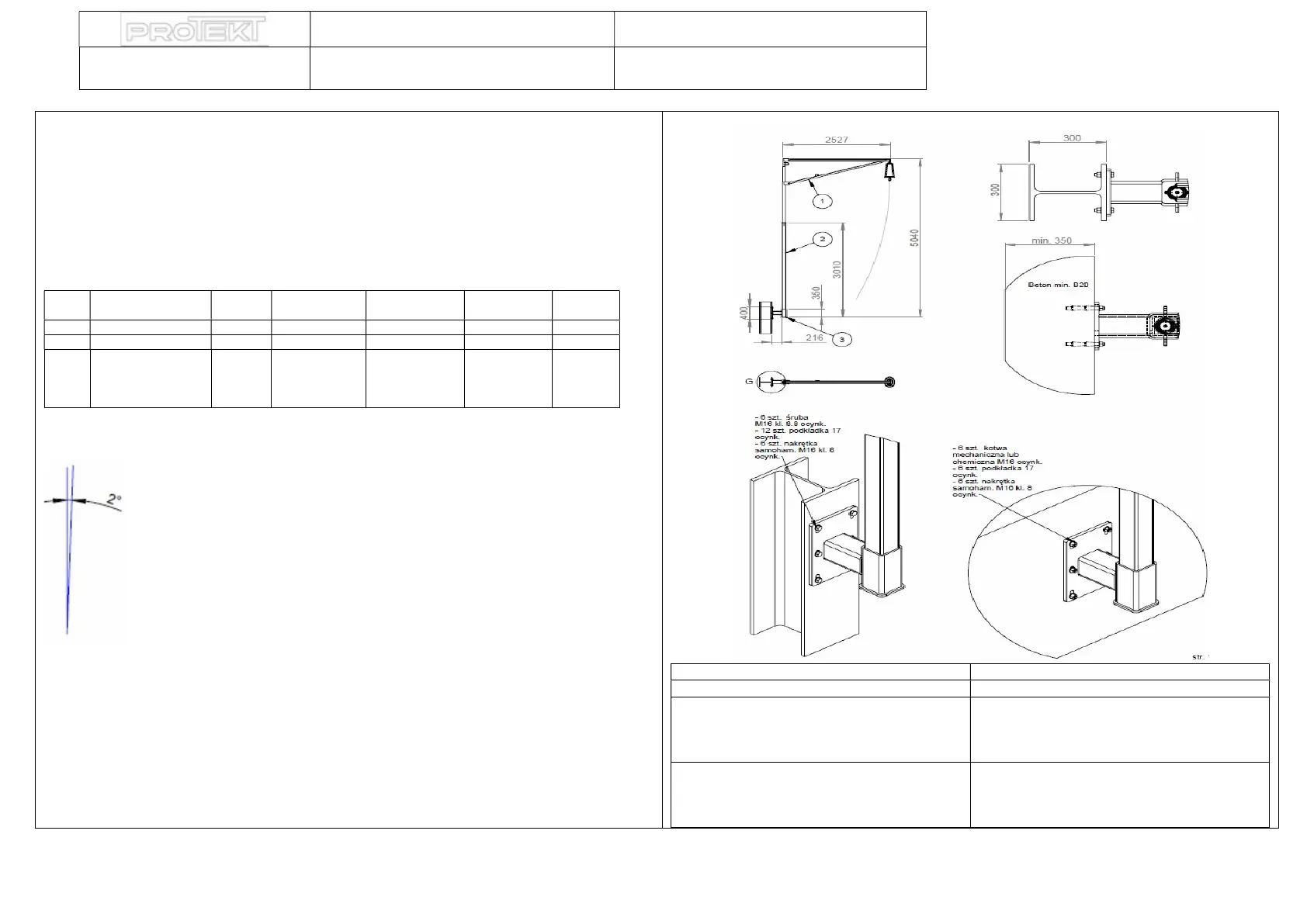

INSTALLATION OF THE DEVICE (Method of use no. 5 and 6)
Order of installation
Before installing the device RJ200 prepare necessary tools as follows:
• Hammer
• Spirit level
• Set of combination open-end wrenches
• Hammer drill (for mounting in concrete)
• Masonry drill Ø18mm (for fixing of chemical anchors in concrete)
• Masonry drill Ø16mm (for fixing of mechanical anchors in concrete)
List of elements:
3 Gniazdo boczne
(Side seat)
1 S235 (steel) RJ200.11.000 25.380
2
Gniazdo (Socket)
1
S235 (steel)
RJ200.05.000
76.400
1
Ramię (Arm)
1
S235 (steel)
RJ200.06.000
65.000
Nr.
częś.
(Part
No.)
Nazwa części /
zespołu
(Part / Assembly
name)
Sztuk
(pcs).
Materiał
(Material)
Nr rys. / Nr
normy
(Drawing No /
Standard No)
Ciężar [kg]
(Weight)
Uwagi
(Notice)
1. Fix side seat “3” on column. Minimum requirements for column are given in the figure.
Plumb the mounted socket. Maximum deviation angle from the vertical cannot exceed
2°.
2. Mount rotary arm “1” in the previously mounted socket “3”.
3. The socket can be used several times by moving the arm between sockets.
4. After all works employing the arm are completed the socket can be removed or left for
further use.
Method of use no. 5 and 6
Min. Min.
Beton min. B20 Concrete min. B20
- 6 szt. śruba M16 kl. 8.8 ocynk.
- 12 szt. podkładka 17
ocynk.
- 6 szt. nakrętka samoham. M16 kl. 8 ocynk.
- 6 pcs. bolt M16 cl. 8.8 galvanized
- 12 pcs. washer 17
galvanized
- 6 pcs. self-locking nut M16 cl. 8 galvanized
- 6 szt. kotwa mechaniczna lub chemiczna
M16 ocynk.
- 6 szt. podkładka 17 ocynk.
- 6 szt. nakrętka samoham. M16 kl. 8 ocynk.
- 6 pcs. mechanical or chemical anchor M16
galvanized
- 6 pcs. washer 17 galvanized
- 6 pcs. self-locking nut M16 cl. 8 galvanized
