- 5 -

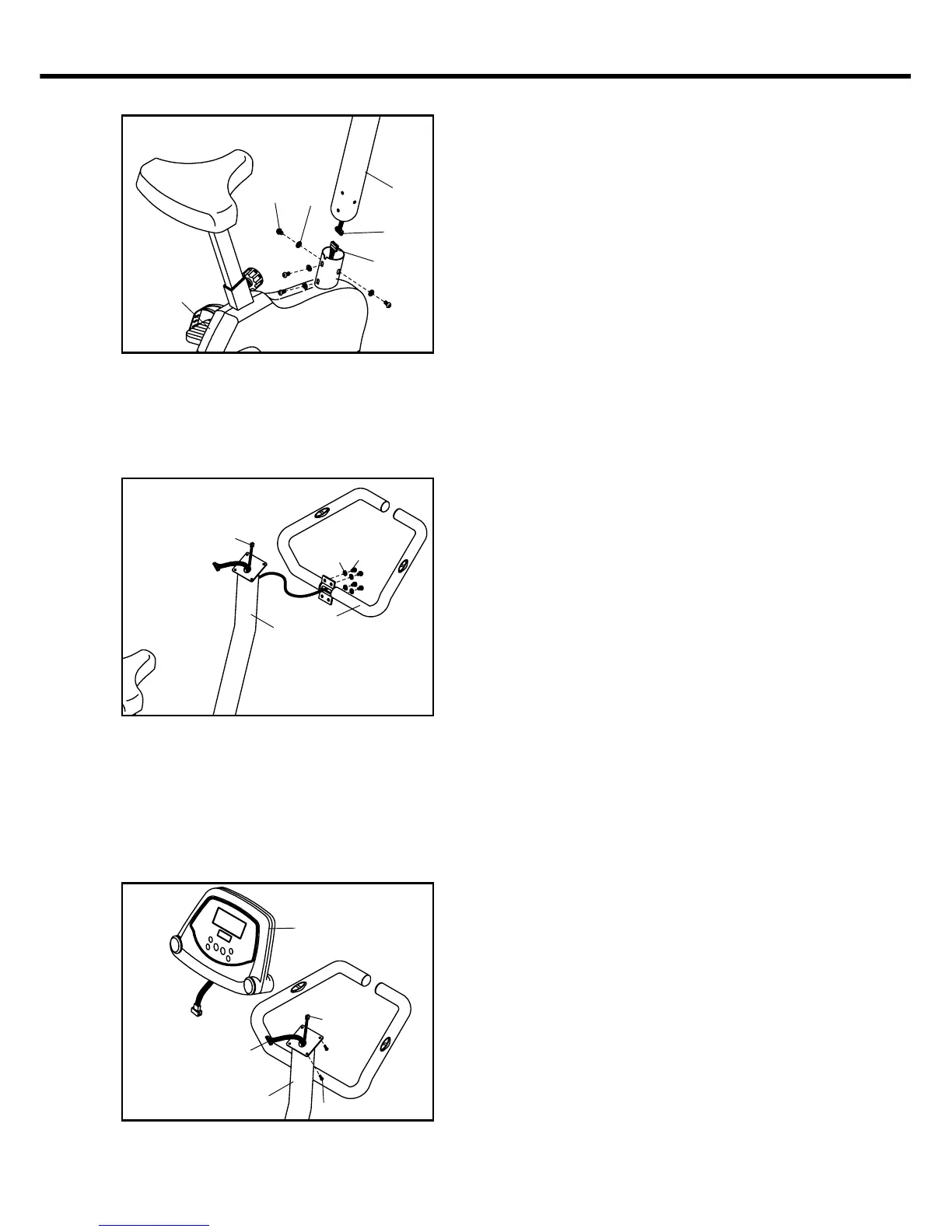

STEP 4: ASSEMBLE HANDLEBAR POST
CONNECT EXTENSION MONITOR
CABLE ( 09 ) AND LOWER MONITOR
CABLE ( 10 ), THEN FIT HANDLEBAR
POST ( 05 ) TO MAIN FRAME ( 01 )
WITH BOLTS ( 28 ) AND WASHERS
( 29 ), FULLY TIGHTEN THEM WITH
ALLEN KEY.
STEP 5: ASSEMBLE HANDLEBAR
INSERT PULSE WIRE ( 36 ) INTO
HANDLEBAR POST ( 05 ) AND LET IT
THROUGH THE TOP OF MONITOR
MOUNTING PLATE. ATTACH
HANDLEBAR ( 06 ) ONTO
HANDLEBAR POST ( 05 ), FIX WITH
WASHERS ( 29 ) AND BOLTS ( 28 ).
FULLY TIGHTEN THEM WITH ALLEN
KEY.
STEP 6: ASSEMBLE CYCLE MONITOR
a. CONNECT PULSE WIRE ( 36 ) &
EXTENSION MONITOR CABLE ( 09 )
TO MONITOR ( 08 ), THEN ATTACH
MONITOR ( 08 ) TO HANDLEBAR
POST ( 05 ), FASTEN WITH SCREW
( 22 ). THEN TIGHTEN THEM WITH
SCREWDRIVER.
b. TENSION ADJUSTMENT
OPERATING BY THE MOTOR.
PLEASE REFERS TO THE
OPERATING INSTRUCTION OF
MONITOR.
NOW YOUR PEC-4655 HAS BEEN FULLY
ASSAMBLED. THANK YOU FOR CHOOSING
PROTEUS PRODUCT !
STEP 4
28
29
5
9
10
1
STEP 5
5
6
36
29
28
STEP 6
5
9
22
36
8
