1. After opened the carton, check all parts/components according to the parts list. Make sure
all parts/components are present correctly before assembly.
2. Do not firm tighten all bolts/nuts until the machine is fully assembled.

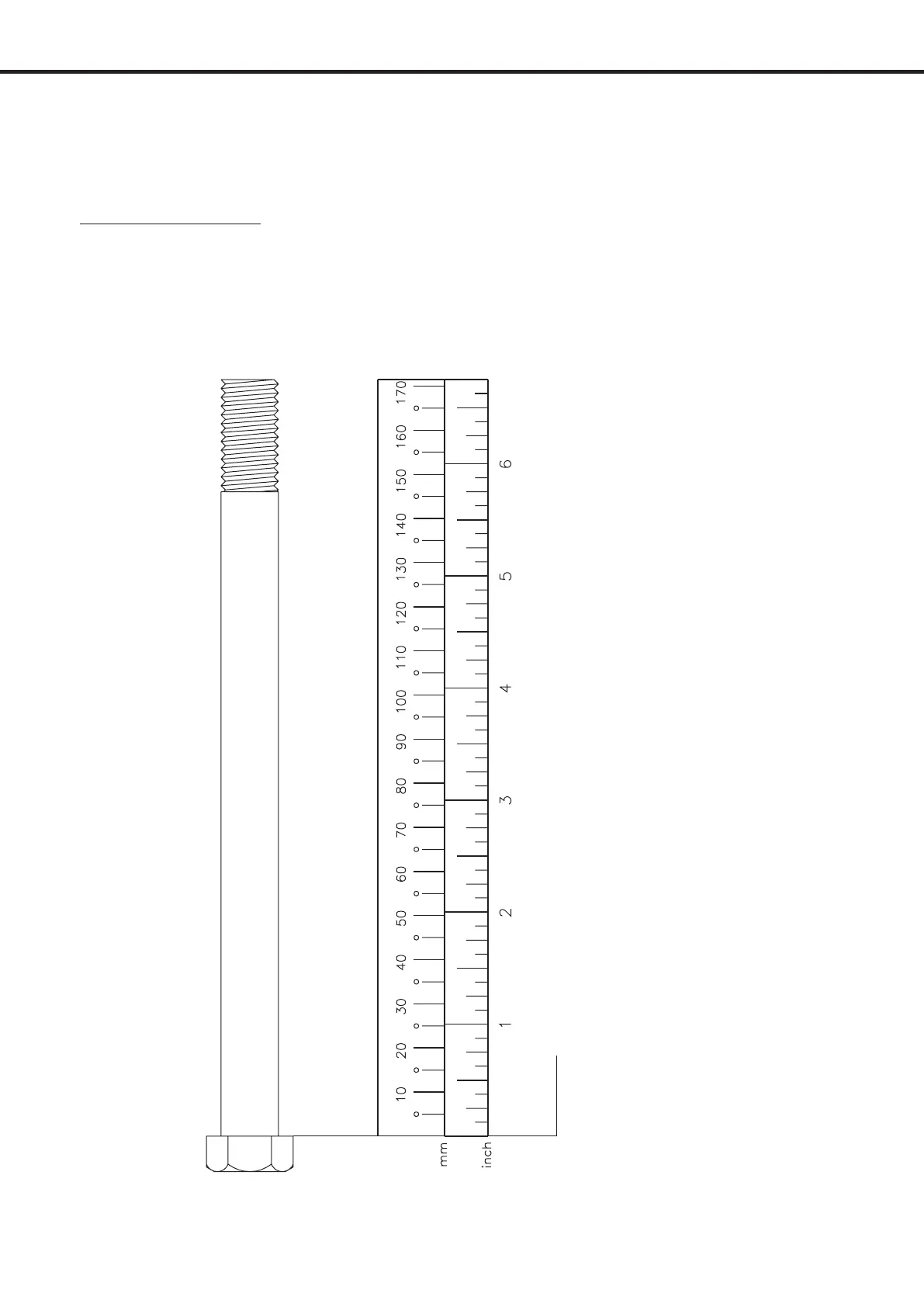

Bolt length indicator
Note: Bolt lengths are manufactured in metric (mm) so imperial length (inches) is
approximate. Eg. 65mm =2 - 1/2"
IN - LINE WITH UNDERSIDE OF HEAD
BEFORE ASSEMBLY
- 3 -
