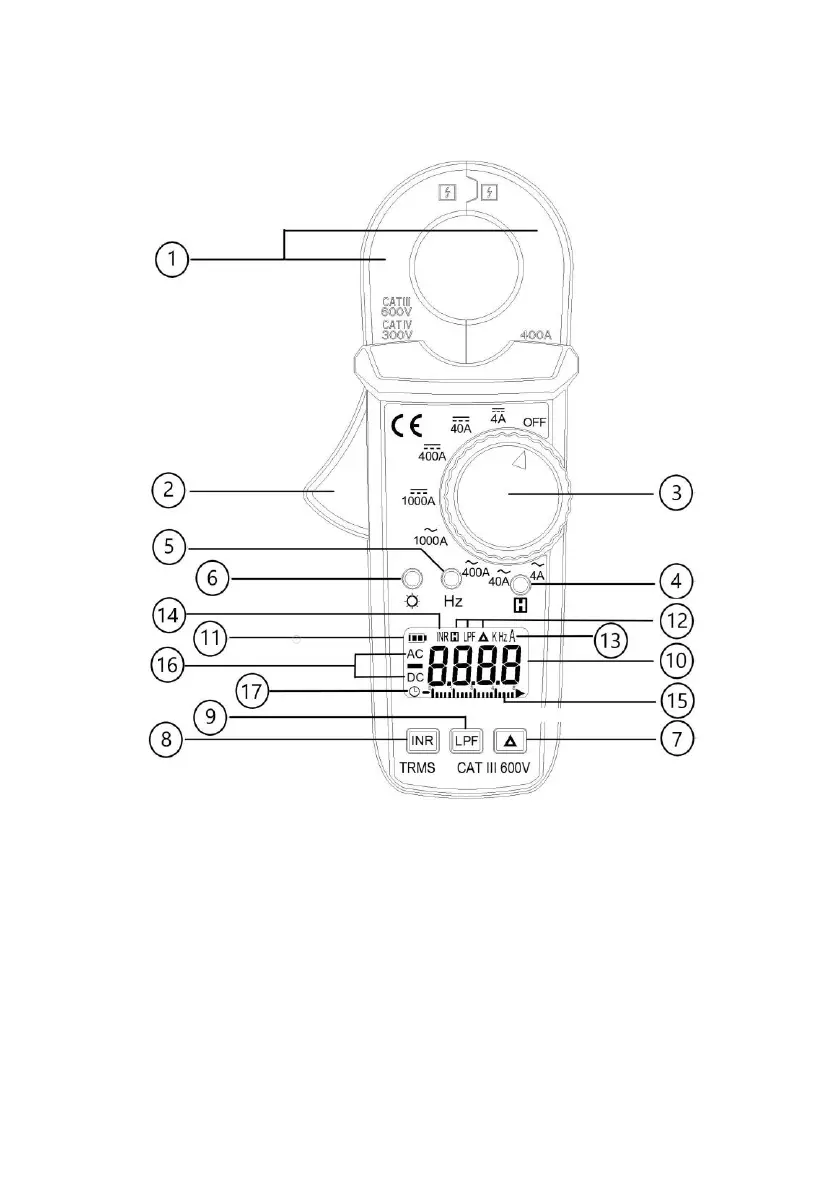

II. Panel Description
1. Moving and Stationary Jaws
This is used to pick up current signal. To measure DC/AC current, conductor
must be enclosed by the jaw.
2. Moving Jaw Trigger
This is used to open the jaw.
3. Rotary Switch
This is the on/off switch and used to select the function user desired, such as DCA,
or ACA.
4. Data Hold (H) Button
Once this button is pushed, reading shall be held on the LCD. Press again to
