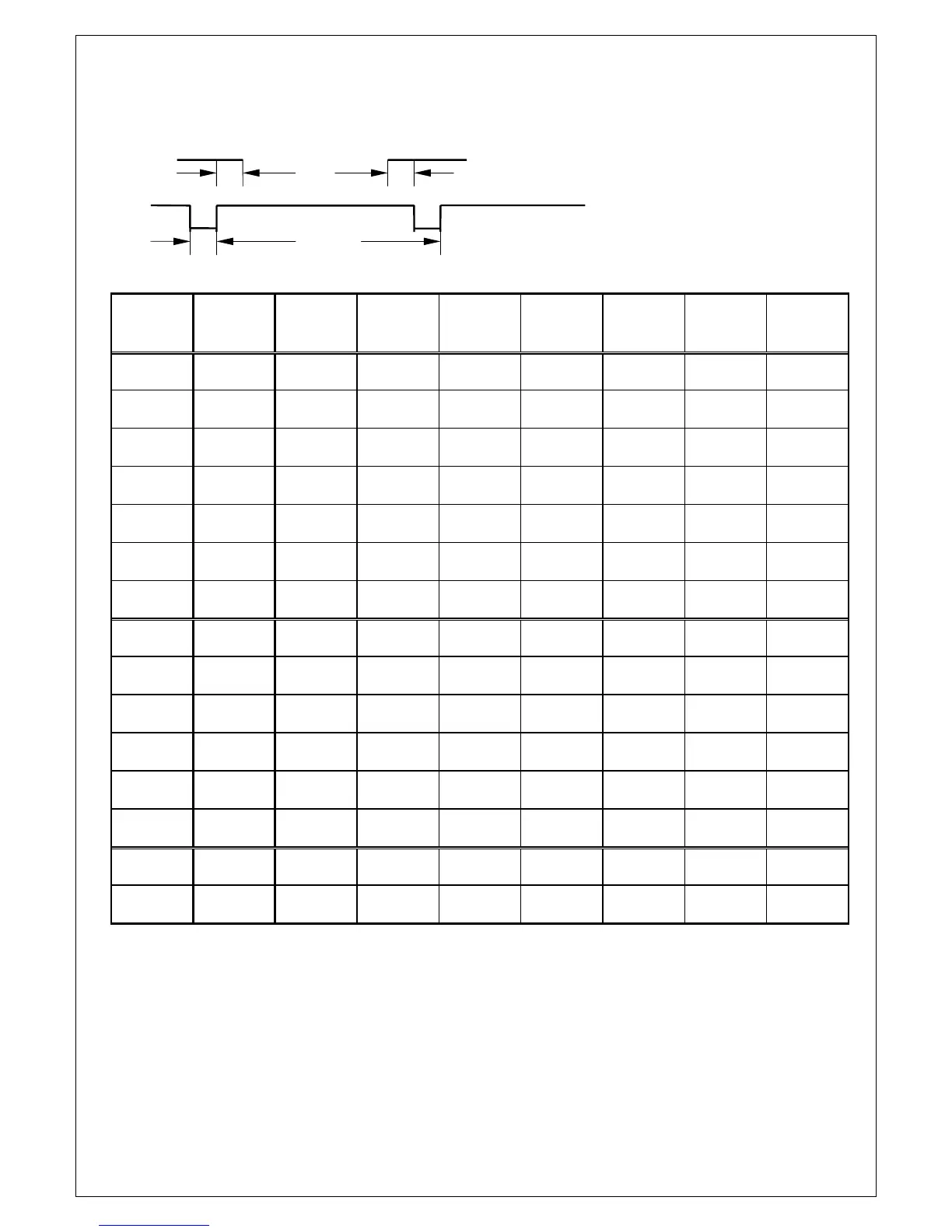

C . TIMING CHART
Video A: Period
D B E B: Active
C: Sync Width
Sync. D: Back Porch
C A E: Front porch
Preset
Modes
VGA
720X400
VGA
640X480
VESA
640X480
VESA
640X480
VESA
800X600
VESA
800X600
VESA
800X600
VESA
800X600
Pixel Rate
28.322MHz 25.175MHz 31.500MHz 31.500MHz 36.000MHz 40.000MHz 50.000MHz 49.500MHz
F.H
31.469KHz 31.469KHz 37.861KHz 37.500KHz 35.156KHz 37.879KHz 48.077KHz 46.875KHz
A-period
31.777us 31.778us 26.413us 26.667us 28.444us 26.400us 20.800us 21.333us
B-Active
25.422us 25.422us 20.317us 20.317us 22.222us 20.000us 16.000us 16.162us
C-
Sync.width
3.813us 3.813us 1.270us 2.032us 2.000us 3.200us 2.400us 1.616us
D-Back
Porch
1.907us 1.589us 3.810us 3.810us 3.556us 2.200us 1.280us 3.232us
E-Front
Porch
0.635us 0.954us 1.016us 0.508us 0.666us 1us 1.12us 0.323us
F . V
70.087Hz 59.941Hz 72.810Hz 75.000Hz 56.250Hz 60.317Hz 72.188Hz 75.000Hz
A-Period
14.268ms 16.683ms 13.734ms 13.333ms 17.778ms 16.579ms 13.853ms 13.333ms
B-Active
12.711ms 15.253ms 12.678ms 12.800ms 17.067ms 15.840ms 12.480ms 12.800ms
C-
Sync.width
0.064ms 0.064ms 0.079ms 0.080ms 0.057ms 0.106ms 0.125ms 0.064ms
D-Back
Porch
1.112ms 0.794ms 0.528ms 0.427ms 0.626ms 0.607ms 0.478ms 0.448ms
E-Front
Porch
0.381ms 0.572ms 0.449ms 0.026ms 0.028ms 0.026ms 0.77ms 0.021ms
H/V
SYNC
－ ＋ － － － － － － ＋ ＋ ＋ ＋ ＋ ＋ ＋ ＋
Interlaced
NON NON NON NON NON NON NON NON
