800 and 8000 Series - Hardware Installation Guide 65
3. Fix the mounting bracket (C) to fixed extension arm with the provided screw, nut and washers.
4. Tighten the assembled parts (Torque 15 N
.
m/130 in-lbs).
The following figure shows the full assembled mounting hardware fixed to the device.

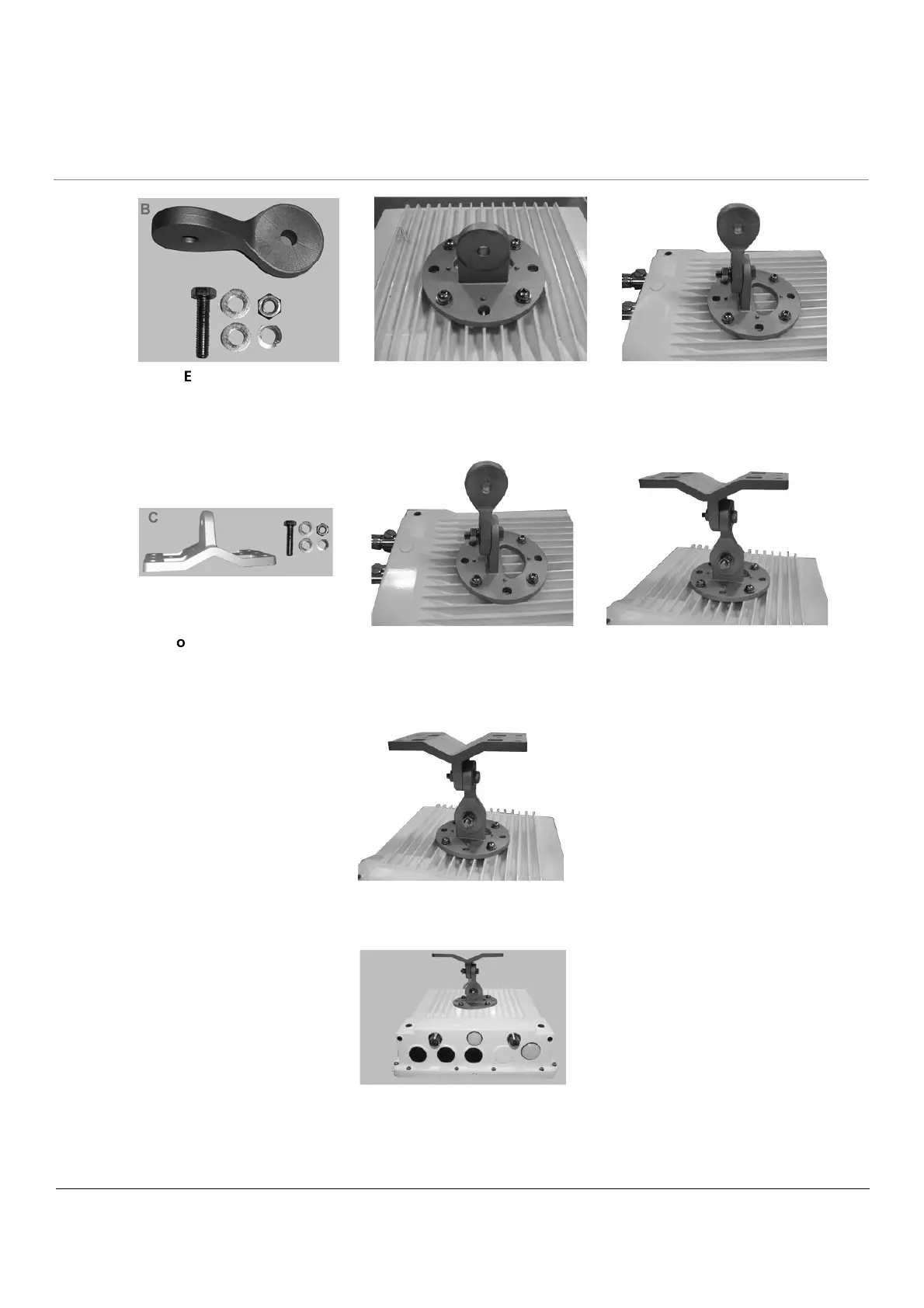

Figure 3-18 Assembled Device

Extension Arm
Mounting Plate fixed to the
device
Extension Arm fixed to
Mounting Plate
®
Mounting Bracket
Extension Arm fixed to
Mounting Plate
Mounting Bracket fixed to
Extension Arm
