800 and 8000 Series - Hardware Installation Guide 43
Step 11: View LEDs
When the device is powered on, it performs startup diagnostics. When startup is complete, the LEDs show the device’s
operational status. The LEDs are available at the device’s Ethernet connector inside the enclosure. You can see the LED
through the Ethernet connector. The LEDs will not be visible if the RJ45 connector is weatherproofed.

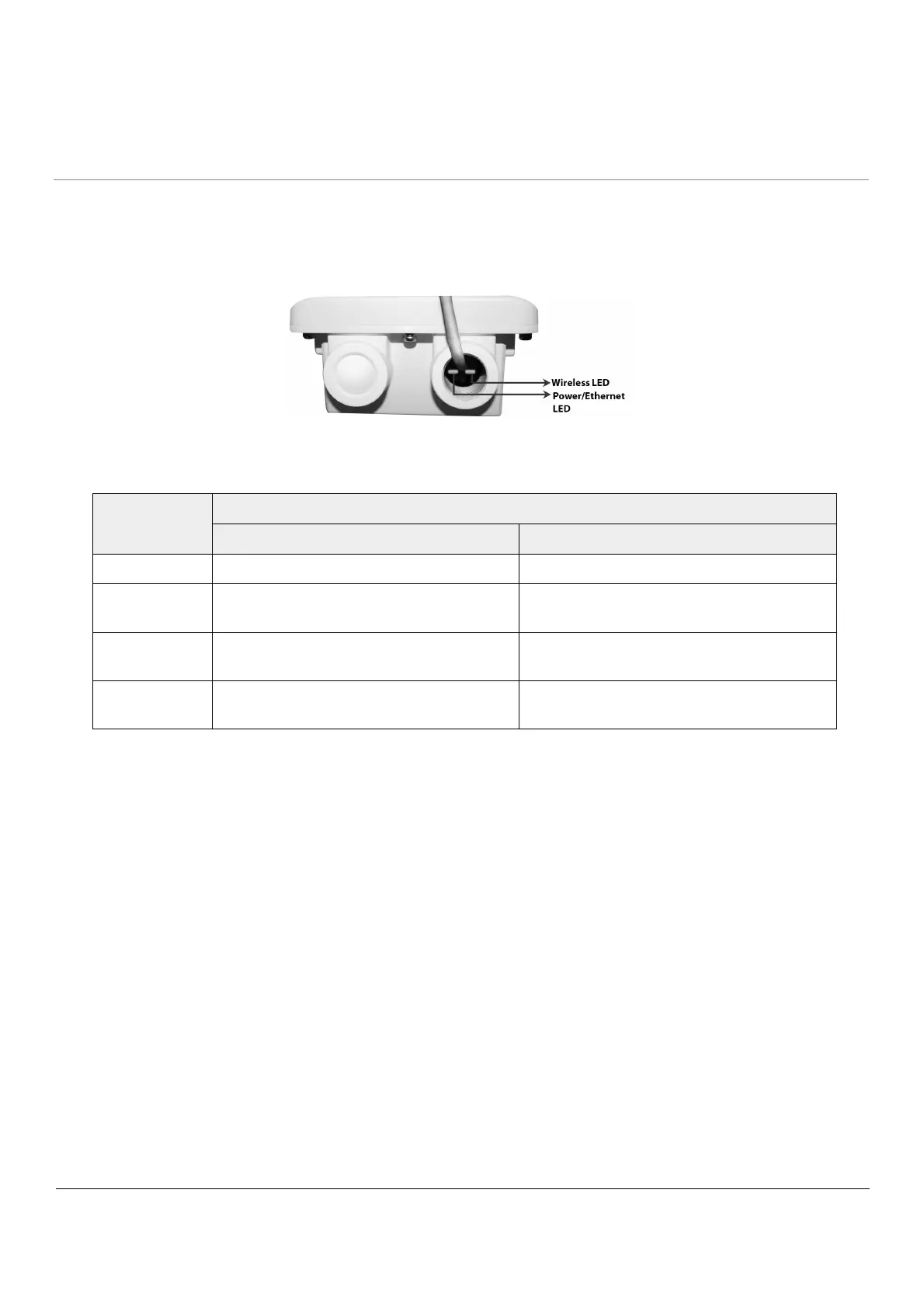

Figure 2-26 LED Indicators
The following table describes the status of LED:
LED State Ethernet Interface
Power/Ethernet LED Wireless LED
Off No Power Radio is not present or failed to detect
Amber No Application Image detected (ScanTool
mode)
Power is ON and device detects Reload signal
Blinking Green Power is ON and the Ethernet link is DOWN Radio is detected but wireless link has not
been established yet
Solid Green Power is ON and the Ethernet link is up Radio is detected and wireless link has been
established
