800 Series - Hardware Overview and Installation
Tsunami
®
800 and 8000 Series - Hardware Installation Guide 21

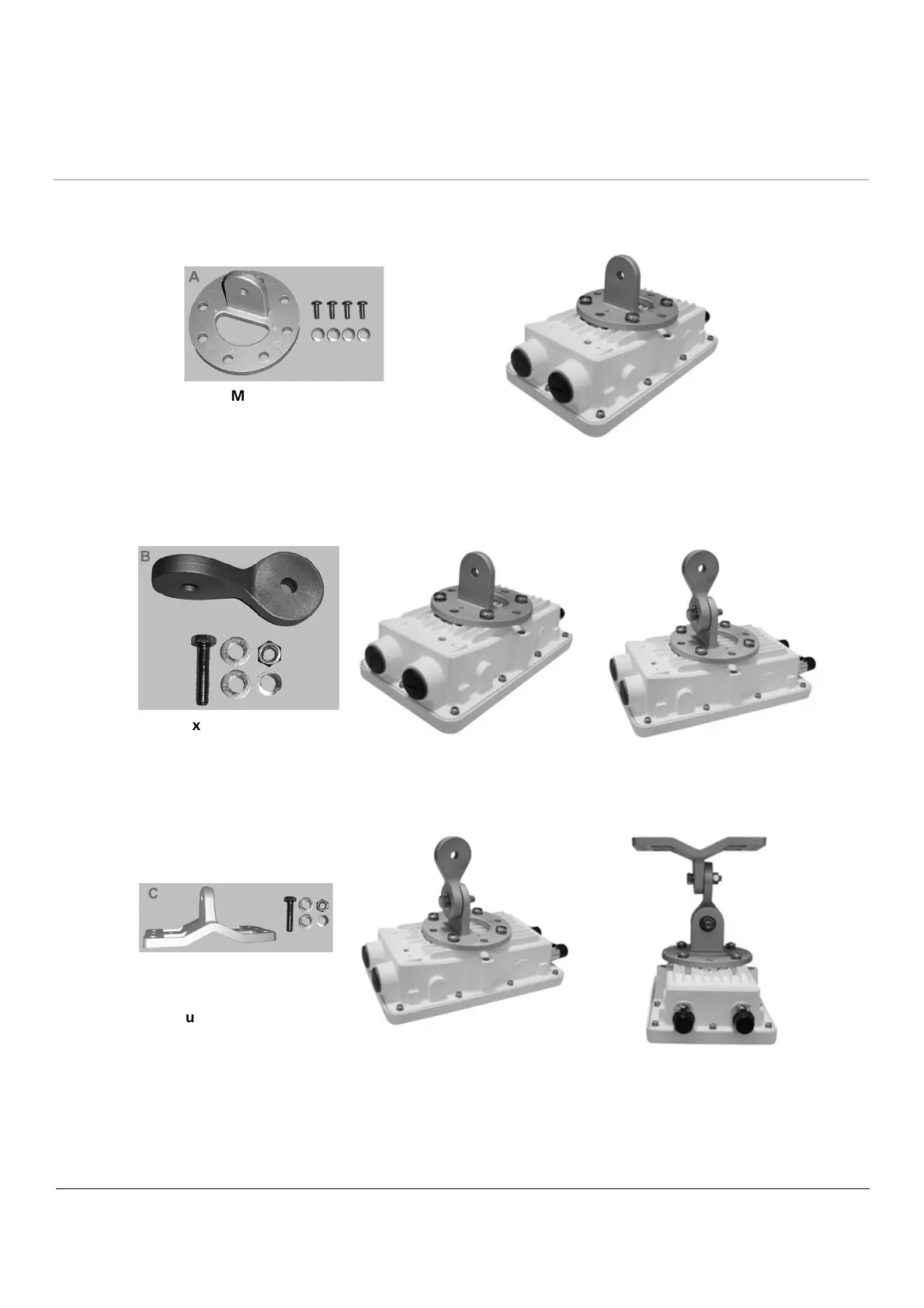

Step 6: Assemble Mounting Hardware
1. Fix the mounting plate (A) by using the provided screws and washers (Torque 9 N
.
m/75 in-lbs).
2. Fix the extension arm (B) to the fixed mounting plate with the provided screw, nut and washers. The extension arm
gives the device more possible tilt, letting you adjust for azimuth or elevation over a larger angle.
3. Fix the mounting bracket (C) to fixed extension arm with the provided screw, nut and washers.
¬
Mounting Plate
Mounting Plate fixed to the device

Extension Arm
Mounting Plate fixed to the
device
Extension Arm fixed to
Mounting Plate
®
Mounting Bracket
Extension Arm fixed to
Mounting Plate
Mounting Bracket fixed to
Extension Arm
