Tsunami
®
800 and 8000 Series - Hardware Installation Guide 51
Additional Weatherproofing Steps
To add an additional layer of protection to the connectors against the environment, see
b   O \ M R  ¢ b M M R Y R ^ \ K a
ª O K Y [ O L  L ^ ^ « R \ W
`
Y O  c
.
For detailed explanation to weatherproof RF connections, refer to Antenna Installation Guide, which is available at
[ Y Y       S  L ^  R  S g ^ 
.

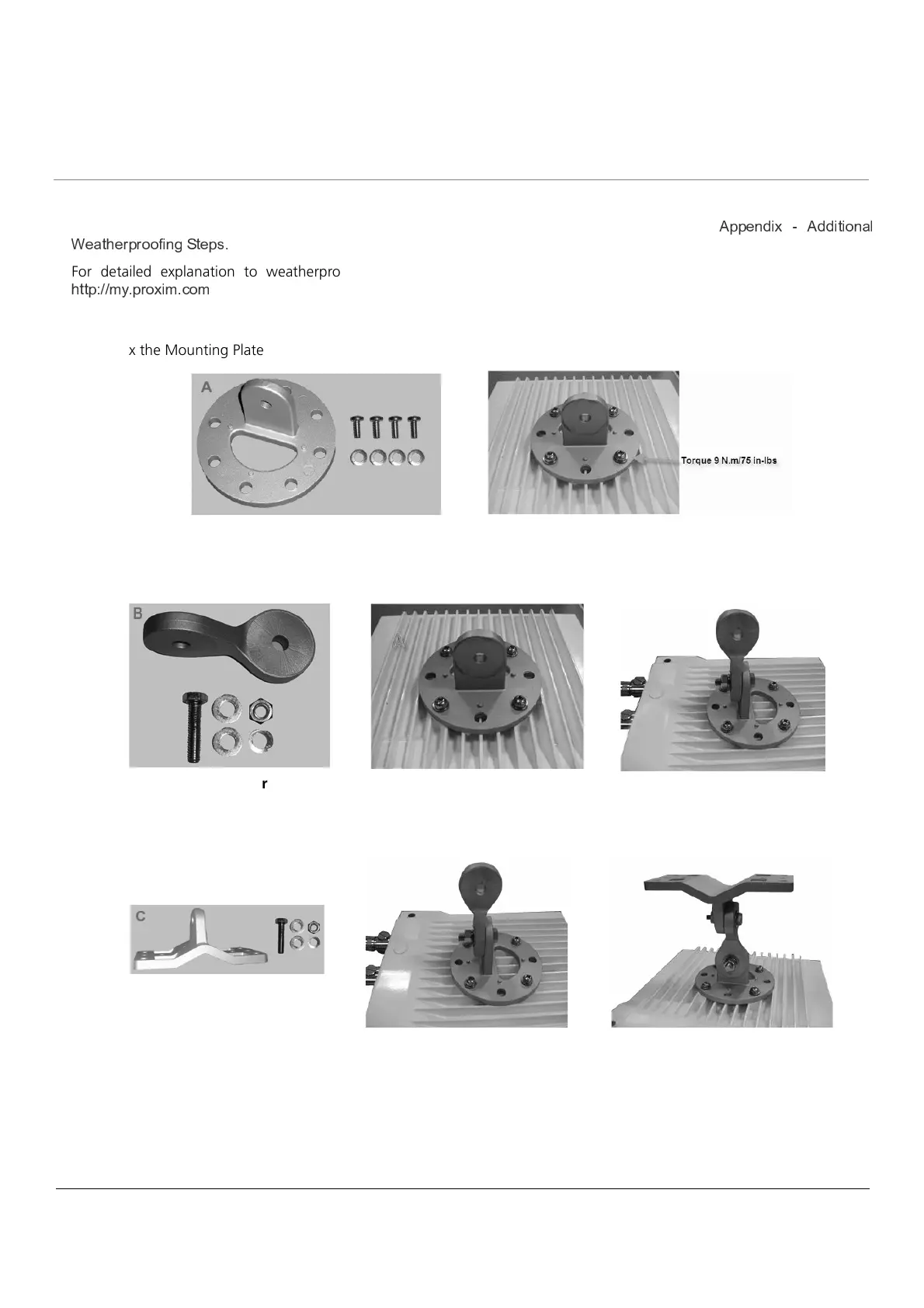

Step 6: Assemble Mounting Hardware
1. Fix the Mounting Plate (A) by using the provided screws and washers (Torque 9 N
.
m/75 in-lbs).
2. Fix the Extension Arm (B) to the fixed Mounting Plate with the provided screw, nut and washers. The Extension Arm
gives the device more possible tilt, letting you adjust for azimuth or elevation over a larger angle.
3. Fix the Mounting Bracket (C) to fixed Extension Arm with the provided screw, nut and washers.
4. Tighten the assembled parts (Torque 15 N
.
m/130 in-lbs).
¬
Mounting Plate
Mounting Plate fixed to the device
°
Extension Arm
Mounting Plate fixed to the device Extension Arm fixed to
Mounting Plate
±
Mounting Bracket
Extension Arm fixed to
Mounting Plate
Mounting Bracket fixed to
Extension Arm
