Fig.4
Fig. 5
Connecting the dividing head to the control
The plug of the dividing head must be inserted into the provided socket at the rear of the

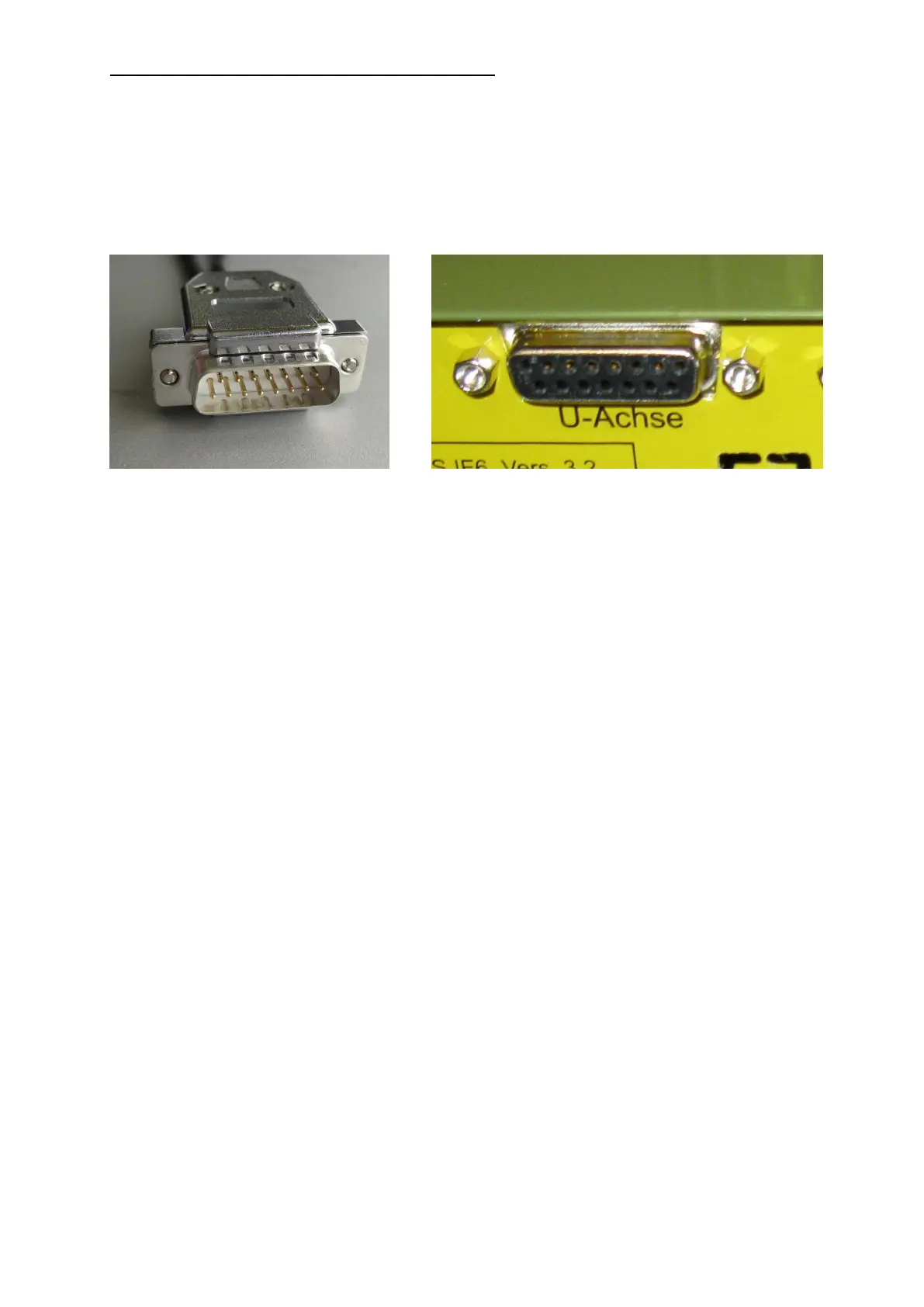

control. Figures 4 and 5 show the plug (top) and the socket labelled “u-Axis”.
For safety reasons, please screw the slotted screws of the plug into the designated
threads at the control and tighten carefully. This prevents the plug from falling out on its
own or from being pulled out accidentally.

Proxxon UT 400 CNC Specifications

General

Brand	Proxxon
Model	UT 400 CNC
Category	Lathe
Language	English
