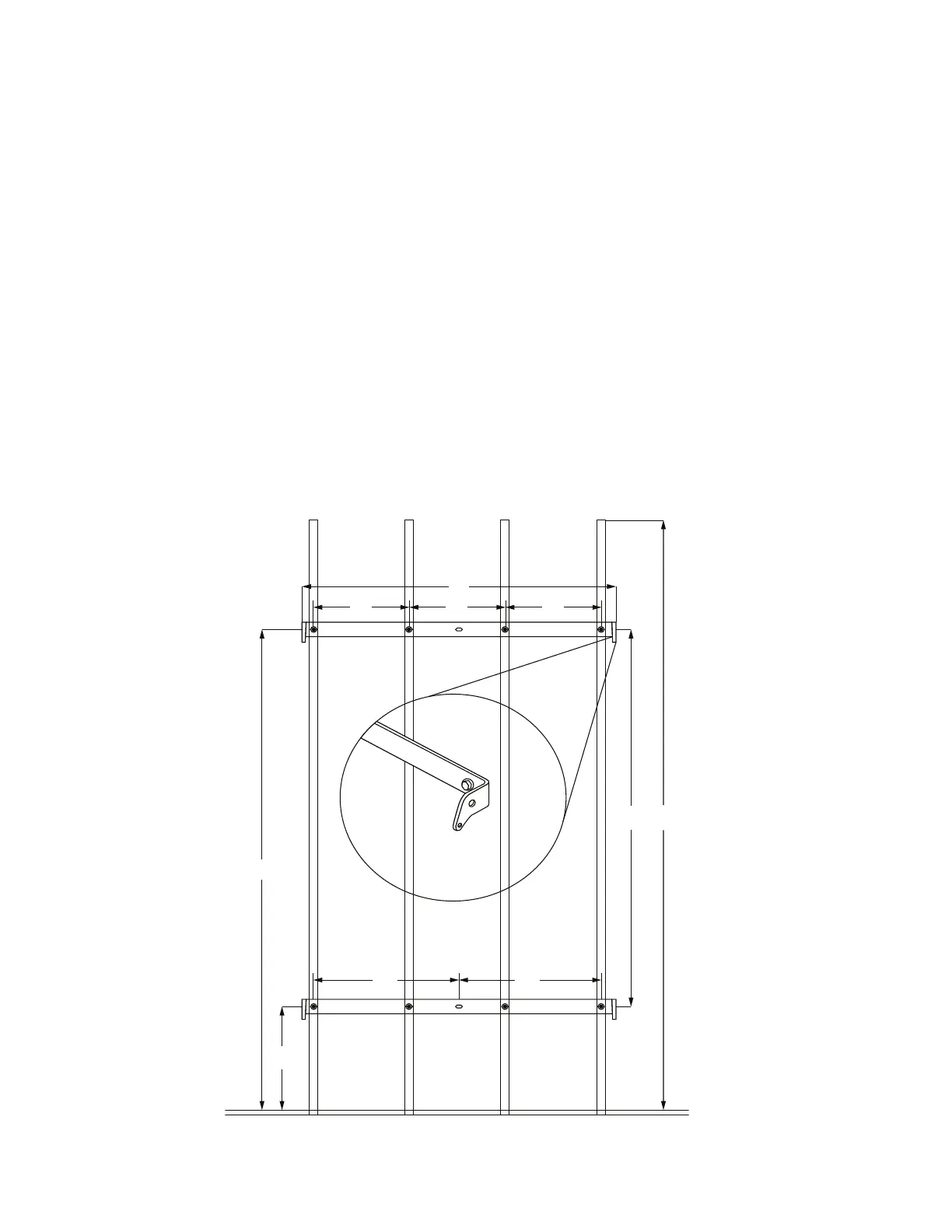

Mount Lower Bracket
1. Beginning with the right stud, measure 19” up from the oor and drill a pilot hole into the stud
2. Fasten a wall bracket to this stud with an M8 x 65 Lag Screw (5) and M8 Washer (6), but do not
tighten all the way
3. Using the same measurement on the leftmost stud, drill a pilot hole and fasten the left side of the wall
bracket in the same fashion. Use a level to ensure the bracket is level horizontally
4. Finally, drill pilot holes through the remaining hole(s) and fasten M8 x 65 Lag Screws (5) with M8
Washers (6) into remaining stud(s), but do not fully tighten
Mount Upper Bracket
1. Using the same procedure as with the lower bracket, attach the upper bracket exactly 69” up from
center to center of the lower bracket, or about 88” above the oor
2. Level the top bracket rst. Fully tighten the top lag screws. **DO NOT OVERTIGHTEN**. Hang a
plumb line from the left ear and align the bottom bracket
3. Once in line and level, tighten all remaining screws
4. If, for any reason, you can’t mount the brackets at the recommended height, please refer to page 12
for installation modications or email support@prxperformance.com
