Electric installation as well as over-current and overvoltage protection devices must be conform to the standard DIN
IEC 60364-4-41, protective class I resp. protection class 3 (24VAC/24VDC) and also to the standard DIN IEC 60364-4-
44 according to the applied overvoltage category of the actuator.
Please protect all of the power supply and control cables in front of the
terminals mechanically by using suitable measures against
unintentional loosening. Never install the power supply and the control
cables together in one line but instead please always use two different
lines.

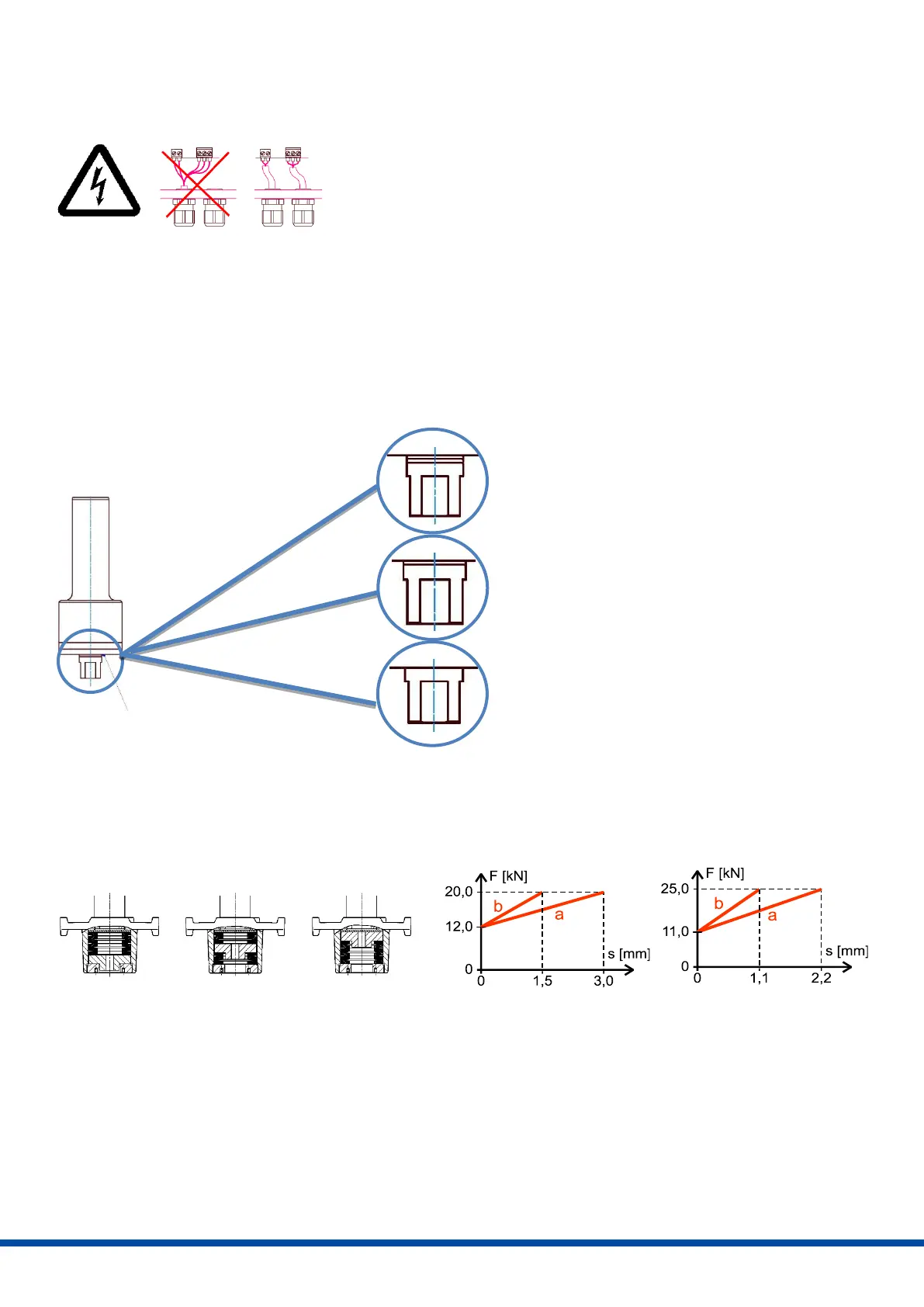

5. Setting of the Limit Switches
Only when supplied without valve!
PSL201-214
Nominal force is applied when respective groove is reached.
PSL320-330
a b a PSL320 PSL325-330
Unlock switching cam and move until the switch contact clicks.
