PSB Synchrony One - Bi-Wire Connections; Bi-Amp Connections

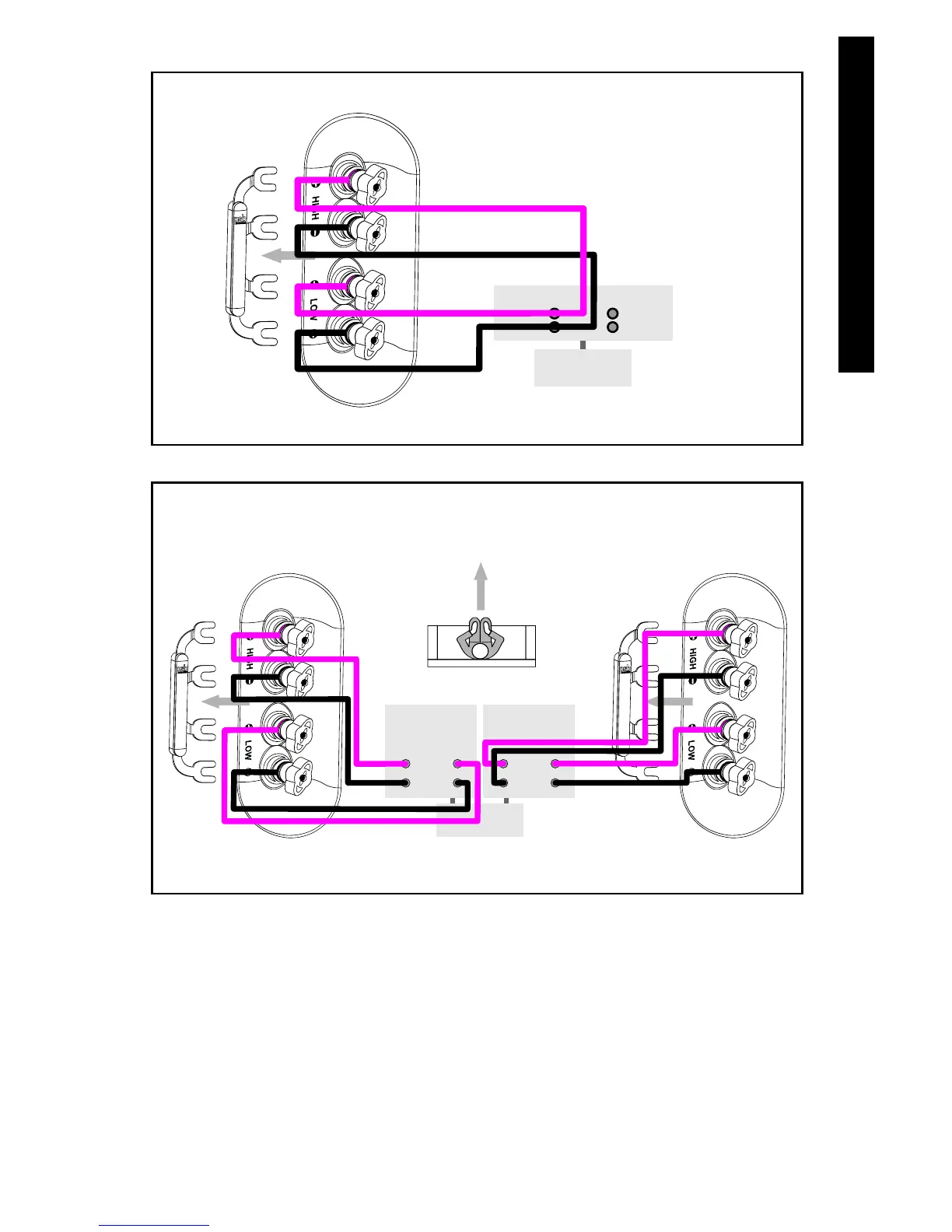

Bi-Amp Connections
First
remove
jumper
Front
Right
+
-
Left
Right
+
-
Left
Pre-amp
Left Amplifier Right Amplifier
First
remove
jumper
First
remove
jumper
Amplifier
Right
Left
Pre-amp
+
-
Bi-Wire Connections
Speaker Connection Options (For Synchrony S
Surrounds)
The captioned illustrations below show the following multi-channeled
configurations:
1. Bipole or direct radiating surround mode
2. Dipole surround mode
3. 6.1/7.1 system utilizing two (2) Synchrony S surrounds
4. 6.1/7.1 system utilizing three (3) Synchrony S surrounds
5. 6.1/7.1 system utilizing four (4) Synchrony S surrounds
15
Owner’s Manual
