Farmer Chamber
Ionization Chamber
Type 30010, 30011, 30012, 30013
Technical Manual - Technical Specifications
24 D596.131.00/05 en

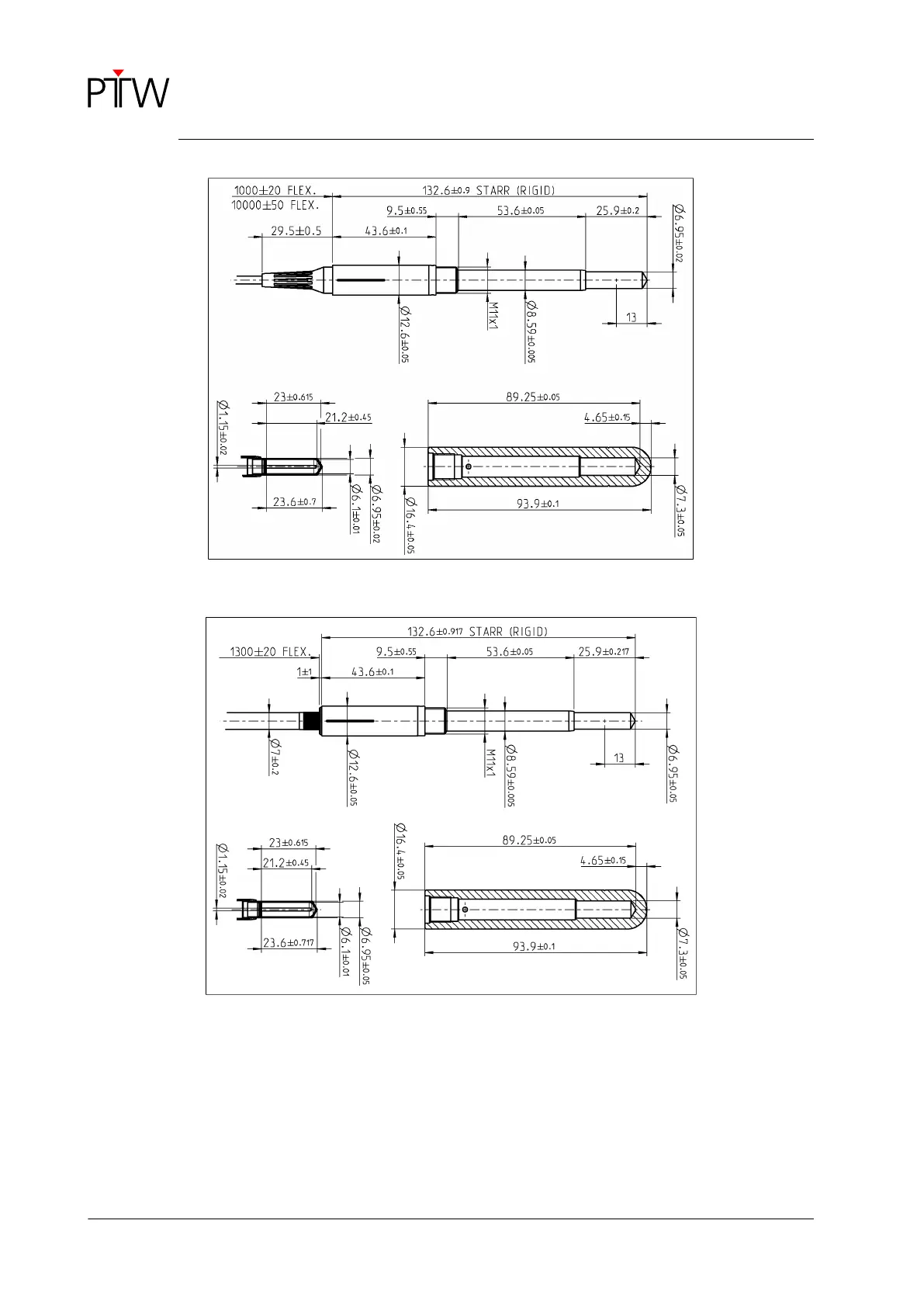

Figure 4: Drawing of the Farmer chamber type 30010 (dimensions in mm)
Figure 5: Drawing of the Farmer chamber type 30013 (dimensions in mm)
