PTW 30013 - Figure 6: Drawing of the Farmer Chamber Type 30011 (Dimensions in MM); Figure 7: Drawing of the Farmer Chamber Type 30012 (Dimensions in MM)

Farmer Chamber
Ionization Chamber
Type 30010, 30011, 30012, 30013
Technical Manual - Technical Specifications
28 D596.131.00/05 en

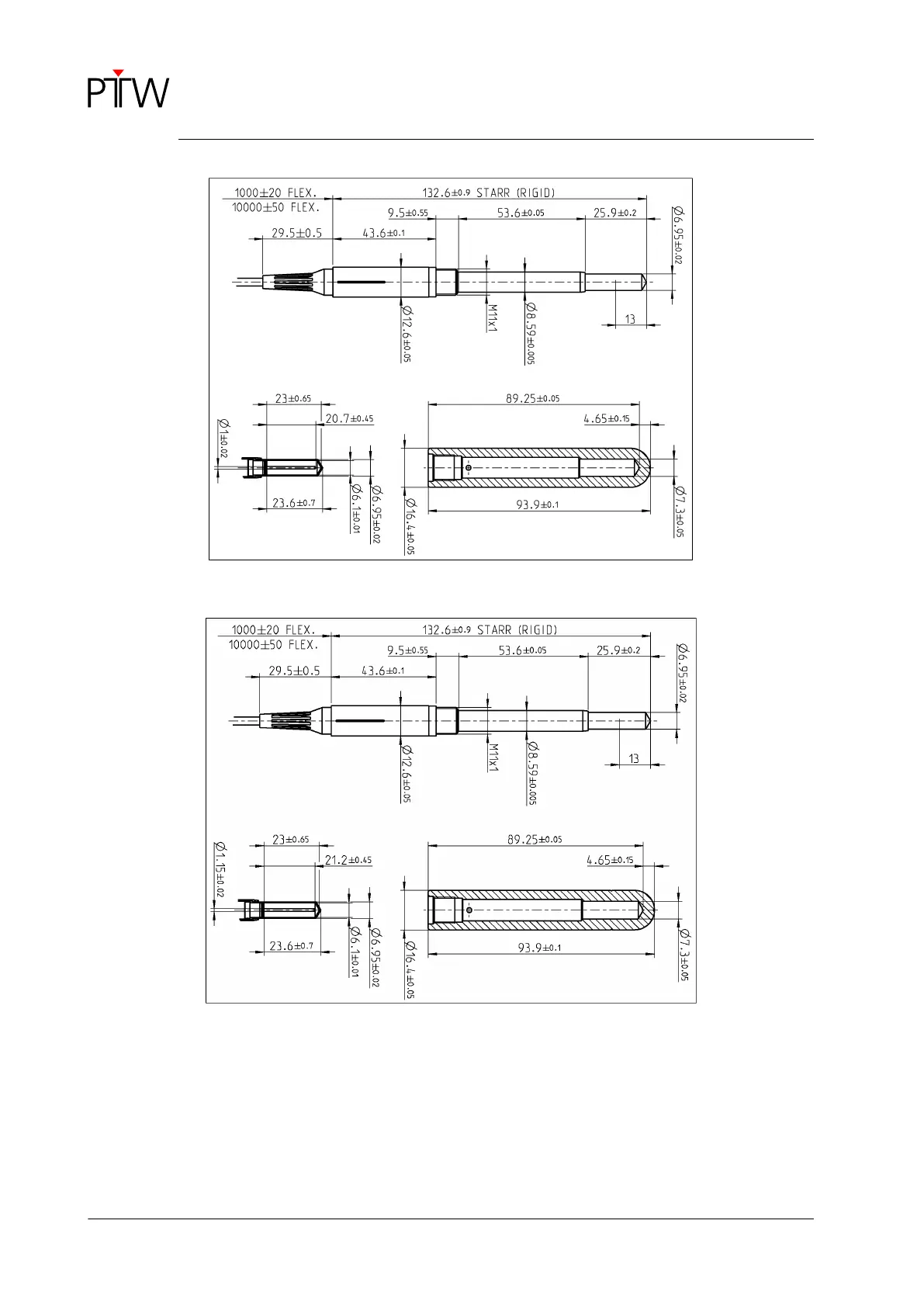

Figure 6: Drawing of the Farmer chamber type 30011 (dimensions in mm)
Figure 7: Drawing of the Farmer chamber type 30012 (dimensions in mm)
