Connection Guide
1. To start your camera, please connect the power adapter to the DC-12V power connector port on
the back of the camera, ensuring all connections are correct and secure.
2. The power indicator on the front panel of the camera will illuminate.
3. Once powered on, the camera will initialize. During this phase, it will rotate to the left
and right limit positions, then both horizontal and vertical limit positions. After these limit
checks, it will stop at the center position. Once the camera has stopped moving, the
initialization will be complete.
(Note: If preset 0 is saved, The camera will stop at preset 0)

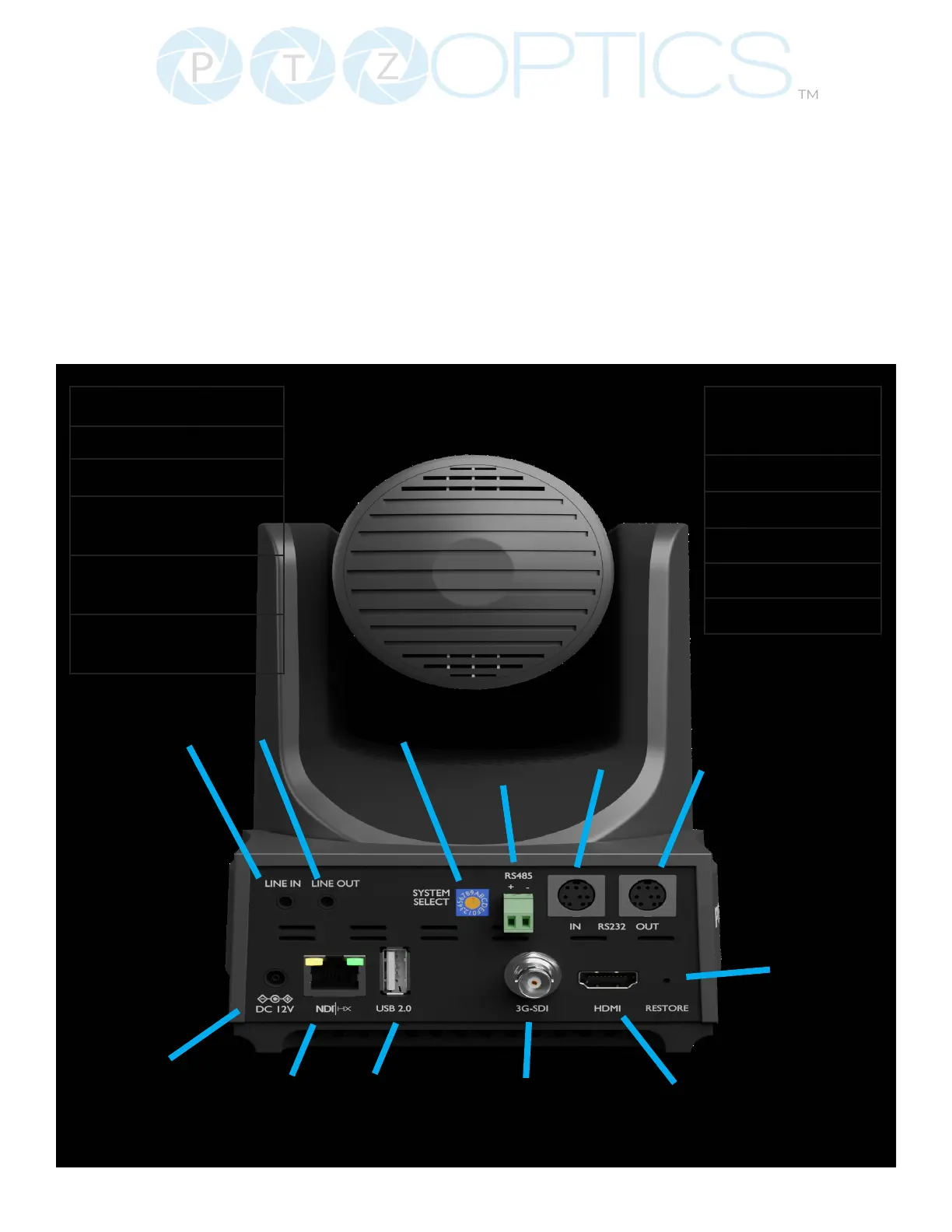

1
2
1. DC 12V
2. Line In
3. Line Out
4. Resolution
Dial
5. RS485
Interface
6. RS232 IN
Interface
3
5
4
6 7
8
9
10
11
12
7. RS232 OUT
Interface
8. Restore
9. HDMI
10. 3G SDI
11. Service Port
12 LAN
