1. 气压表 Air pressure gauge
2. BIAS 旋钮 BIAS control knob
3. 工作气压调节旋钮 Air pressure control knob
4. 电源开关 Power On/Off button
5. 雕刻手柄切换旋钮 Handpiece selector knob for 8 and 9
6. 雕刻手柄调速旋钮 Strokes per minute selector knob
7. 辅助压力调节旋钮 Auxiliary air open/close knob for 10
8. 雕刻手柄快速接口Ⅰ Handpiece quick connect fittings Ⅰ
9. 雕刻手柄快速接口Ⅱ Handpiece quick connect fittings Ⅱ
10. 辅助压力快速接口 Auxiliary air quick connect fitting

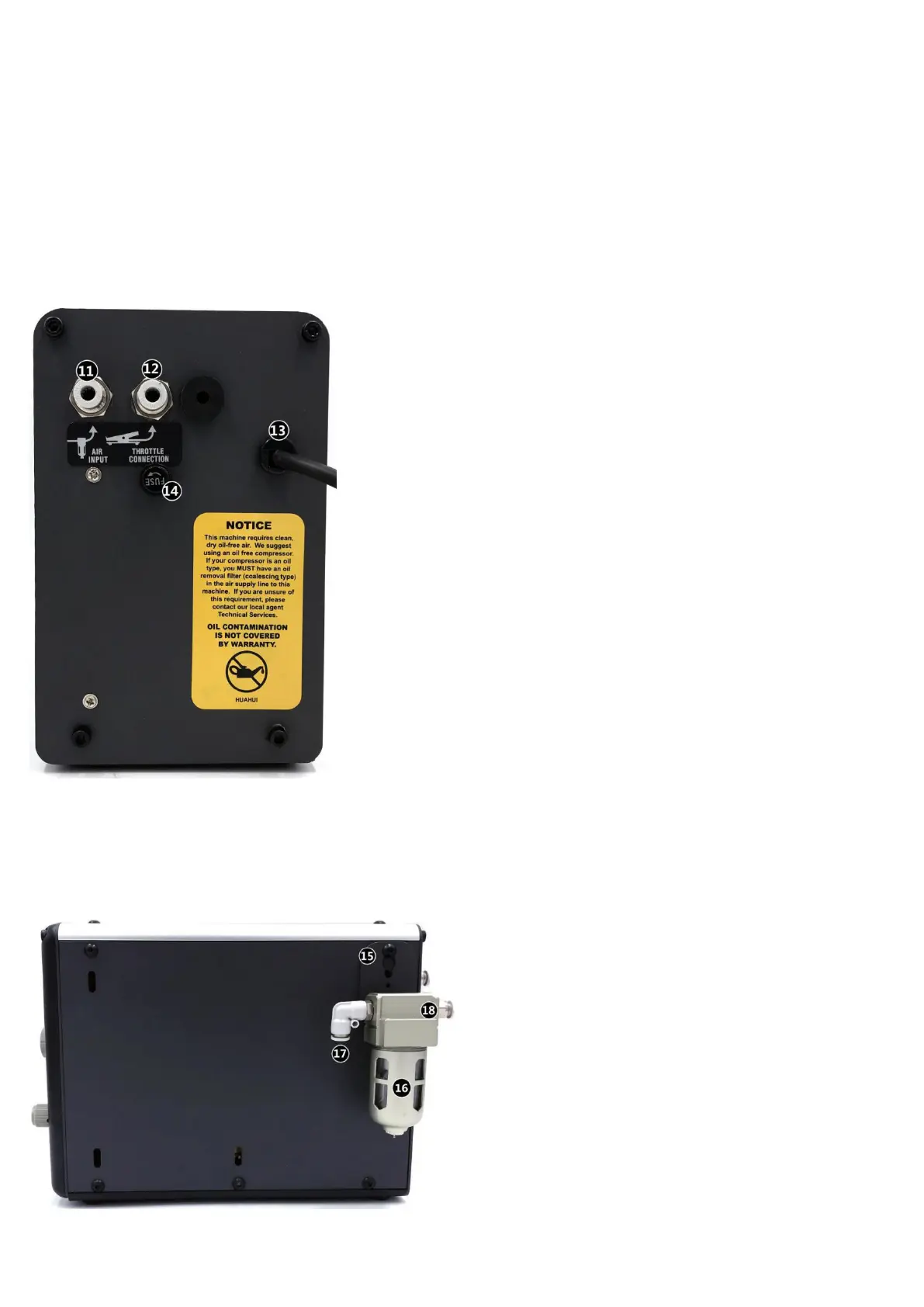

pic.2
11. 过滤气源输入快速接口 Air input quick connect fitting
12. 脚踏开关快速接口 Foot throllte quick connect fitting
13. 电源输入插头 Power connect
14. 保险丝 Fuse
pic.3
15. 气源过滤器固定螺丝 Screw
