Page 4

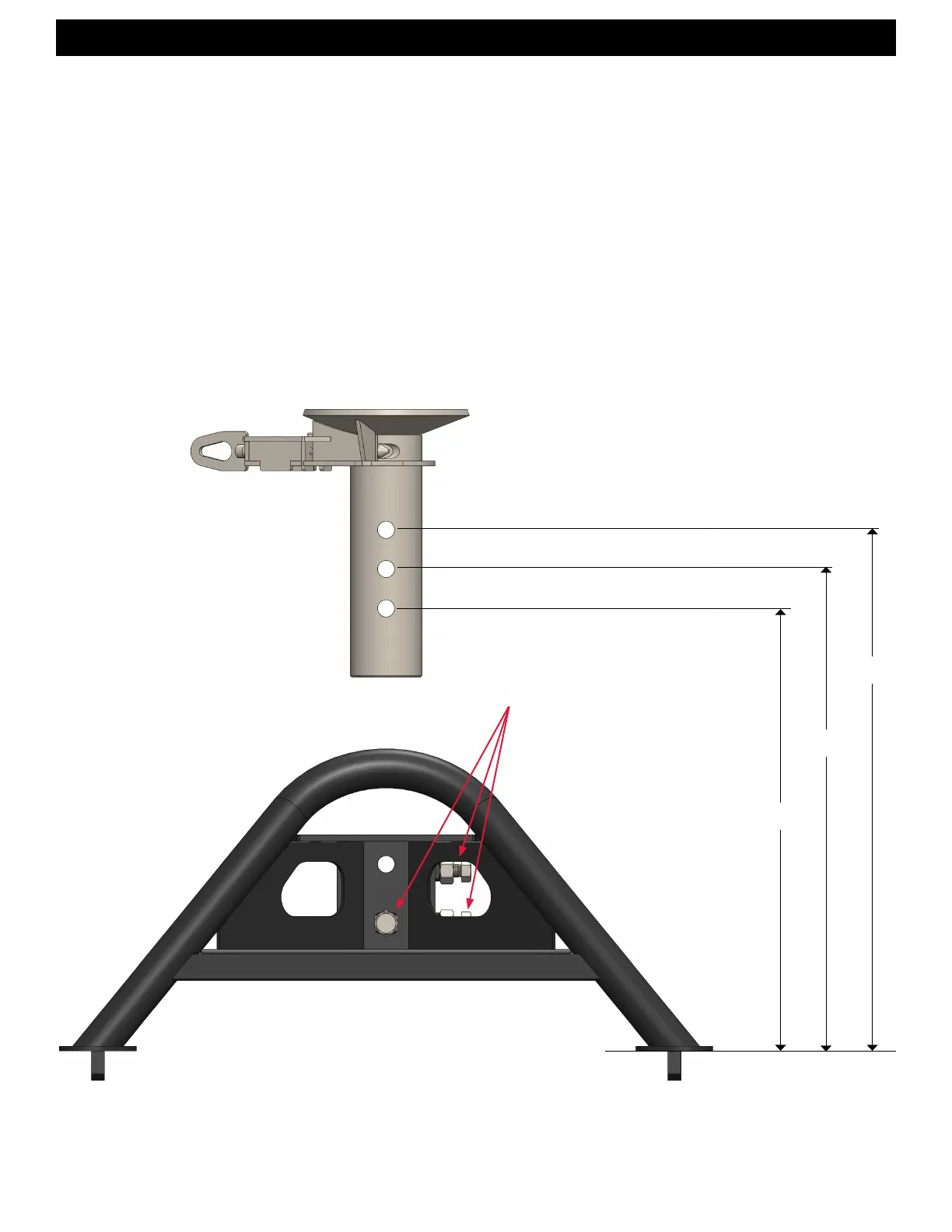

The #2400 SuperLite is height adjustable and can be set at three positions. Refer to the illustration below and the “#2400
Exploded View” drawing on page 8, following each step below to adjust your hitch’s height:
1. Loosen the three coupler jam nuts (7/8” socket) as well as the three coupler bolts (3/4” socket). It is not necessary to
remove the bolts - just back out about two complete turns or until the coupler is loose in the base.
2. Remove the clevis pin and clip and adjust to the desired height.
3. Re-pin and clip
4. Torque the three bolts rst to 45 ft. lbs., then tighten the jam nuts to 45 ft. lbs. as well. Over-tightening these bolts
could cause damage to the base. Always torque properly.
HEIGHT ADJUSTMENT
18.7”
17.2”
15.7”
NOTE: Heights shown here
are installed heights. To
obtain the correct height
needed for towing, choose
the corresponding hole in the
Coupler Tube.
The installed heights listed
here are measured from the
base of the hitch to the top
of the Coupler Tube once
properly installed.
Different base rails have
different heights above
the truck bed, such as
SuperRails, so be
certain to add that
height value to the
measurements
provided here.
coupler bolts and jam nuts
