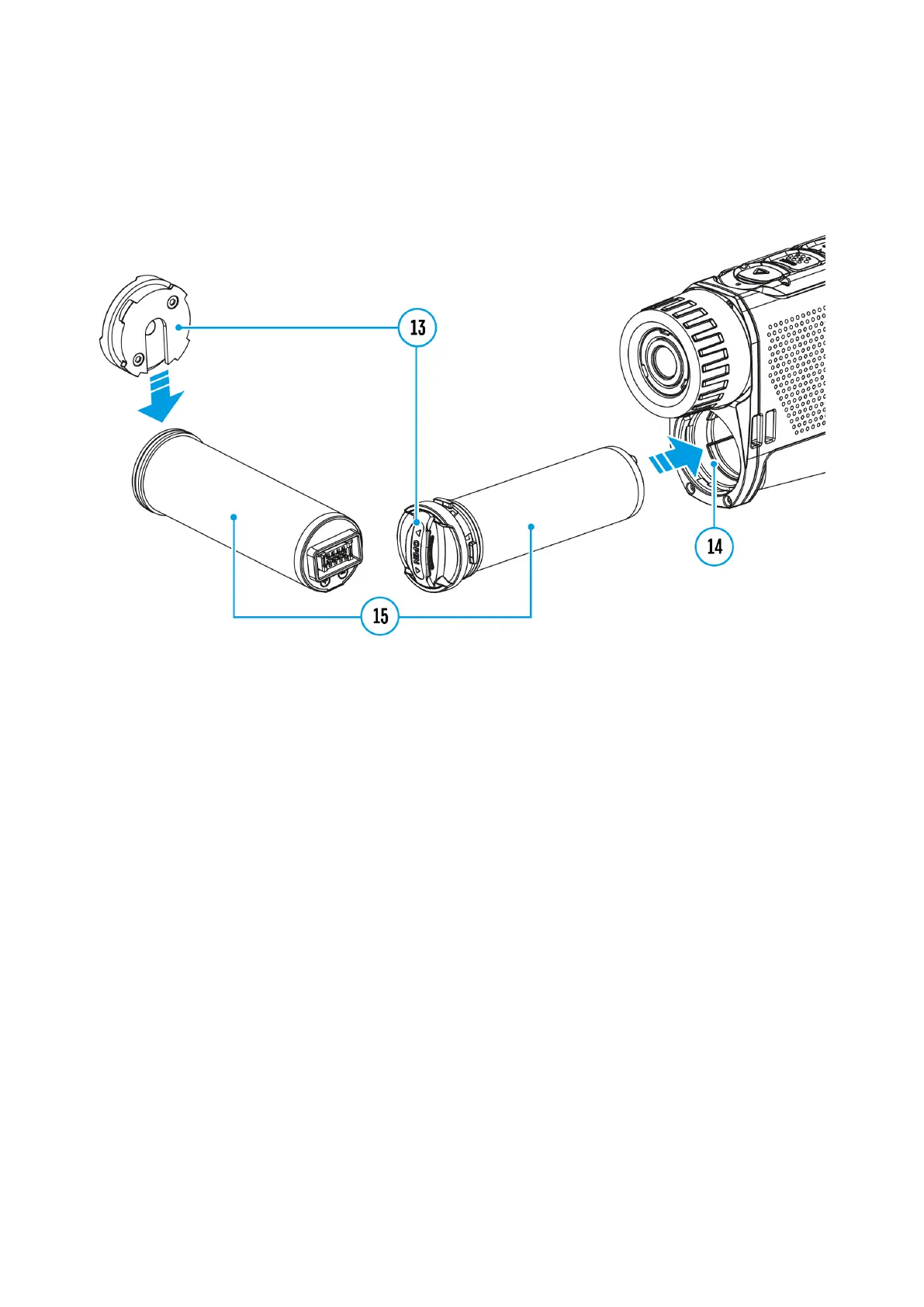

Battery Installation
1.
Put the Lock-cover (13) on the rechargeable APS 5 battery (15).
2.
Insert the APS 5 battery (15) along the guide into the battery compartment (14).
3.
Lock the battery (15) by turning the Lock-cover (13)clockwise until it stops.
4.
Turn the Lock-cover (13) counter-clockwise to remove the battery (15).

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Pulsar Axion 2 LRF XQ35 and is the answer not in the manual?

Pulsar Axion 2 LRF XQ35 Specifications

General IconGeneral
Sensor Resolution384x288
Pixel Pitch17 µm
NETD<40 mK
Objective LensF35/1.0
Magnification2x - 8x
Display TypeAMOLED
Built-in memory16 GB
Wi-FiYes
Protection degreeIPX7
Weight0.35 kg
Laser RangefinderYes
Wavelength905 nm
Accuracy±1 m
Frame Rate50 Hz
Display Resolution640x400
Video / Photo resolution528x400
Video / Photo formatMP4, JPG
Frequency2.4 GHz
Battery TypeAPS5
Battery Life11 hours
LRF Range1000 m
Field of View10.7x8°
Operating temperature-25°C to +50°C
