External Power Supply

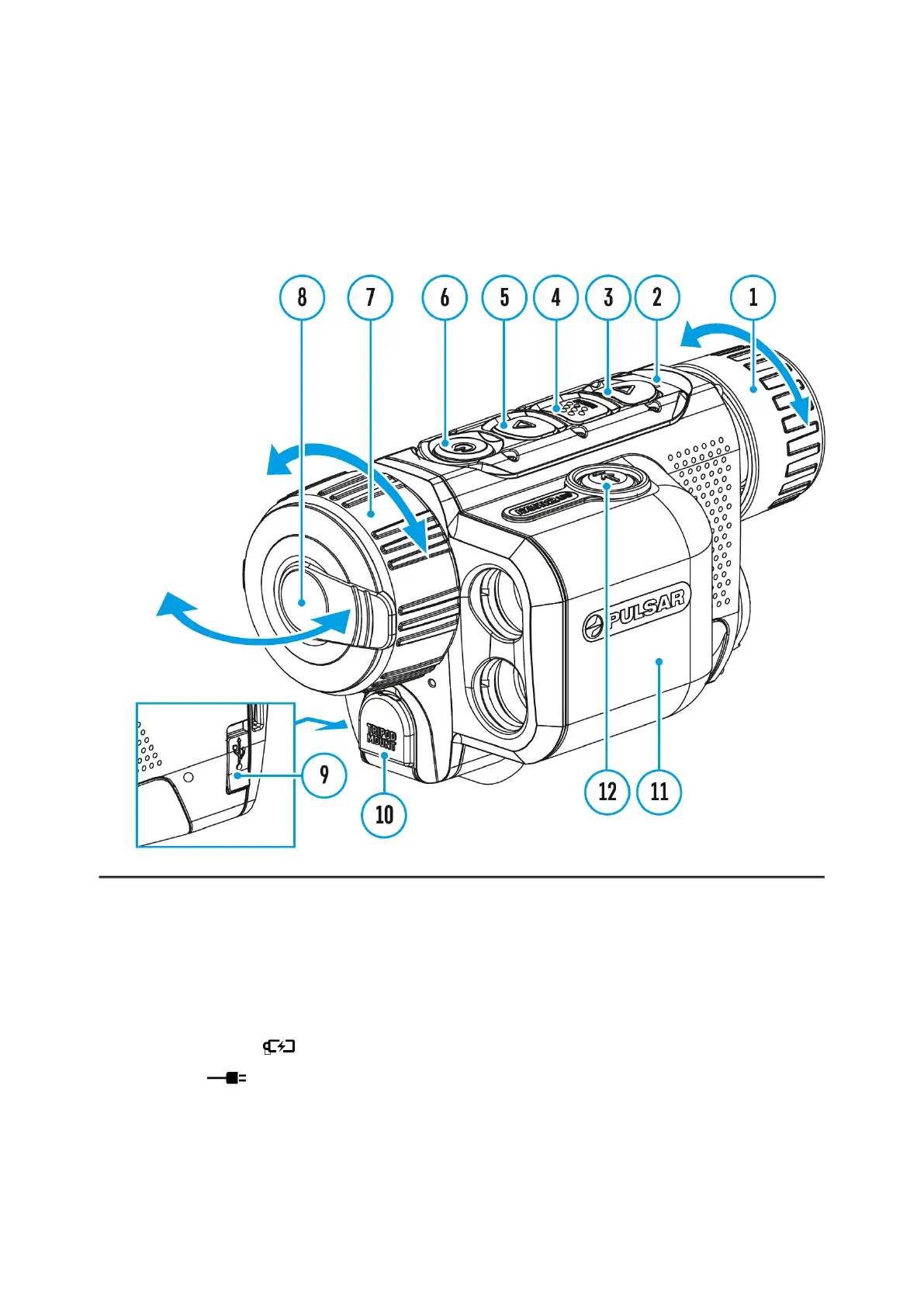

Show device diagram
External power can be supplied from an external source, such as a Power Bank (5 V, 9 V).
1.
Connect the external power source to the USB Type-C connector (9) on the device.
2.
The device will switch to draw power from the external source while the АPS5
battery is gradually recharged.
3.
A battery icon will appear on the display showing the percentage-charged level.
4.
An icon will be displayed when the device is powered by an external power
source and the АPS5 battery is not connected.
5.
The device automatically switches to the APS 5 battery when the external power
supply is disconnected.
