OPERATION
9
Unit CORE can be used as a monocular or front attachment for day device.
Original design allows the monocular to be quickly converted into attachment
and vice versa.
8.1. CORE as monocular.
Detailed description of the monocular CORE can be found in section
9 “OPERATION. CALIBRATION”.
8.2. CORE as front attachment.
CORE as attachment is designed to use a day device both in the nighttime
and daytime in inclement weather (fog, smog, rain etc.).
To convert the monocular into attachment and to mount it on a day device,
please follow instructions as follows:

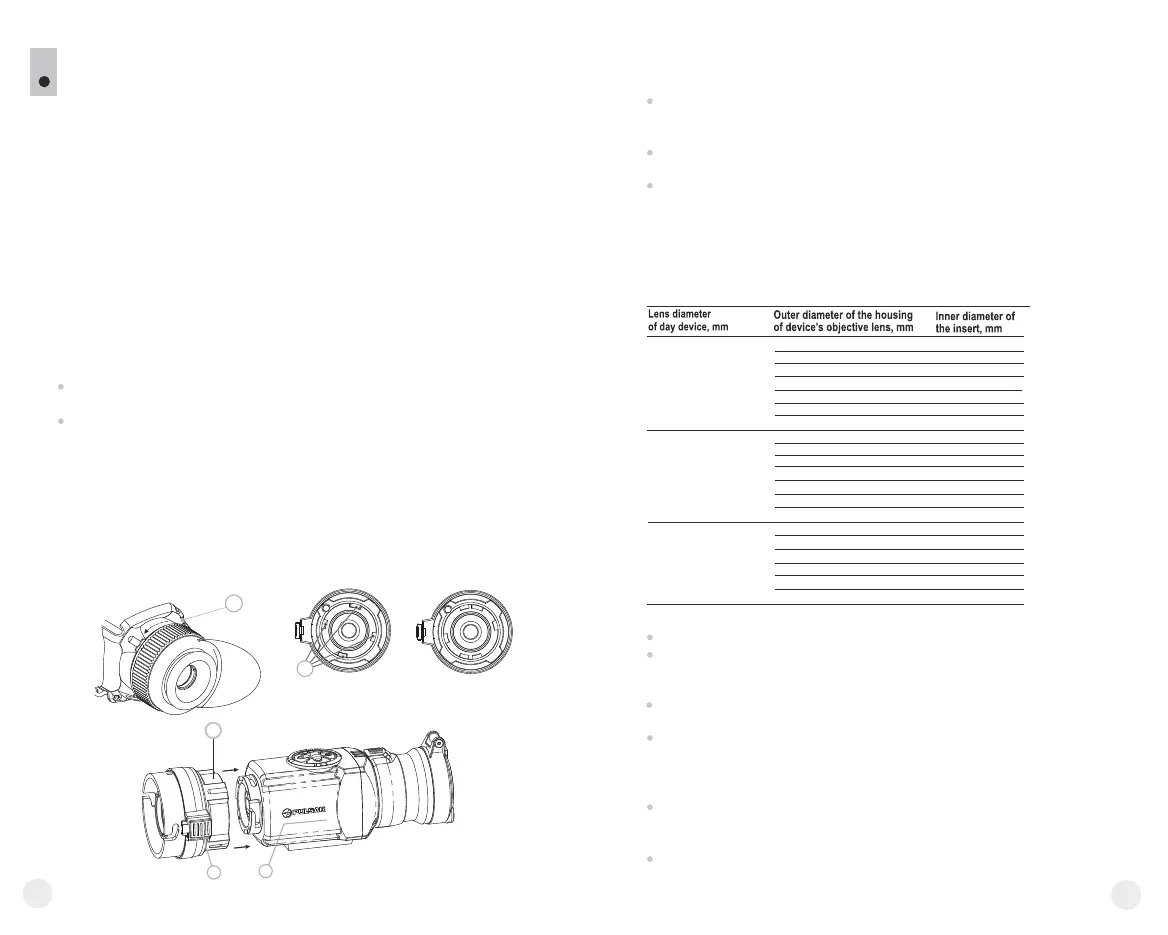

Stage 1. Mounting attachment’s eyepiece on CORE unit.
Rotate the eyepiece locking ring (5) counterclockwise until you hear a
click and remove the eyepiece (Fig. 4).
Mount the on the unit as follows:attachment’s eyepiece
- Make sure that the salients (A)of the are located attachment’s eyepiece
above the lower salients (see Fig. ). 5
- Locate the so that the lock (B) is parallel to the attachment’s eyepiece
Pulsar logo (L) on unit’s body (Fig. ). 6
- Insert the into unit’s body until stop and secure it attachment’s eyepiece
by turning the b (7) clockwise.ayonet-type ring
Fig.4
Fig.5
Fig.6
correct
wrong
5
А
L
B
7
Stage 2. Installing the cover adapter on day device (using metal
Cover-adapters DN42/50/56 mm” (SKU#79124/79125/79126)
Select a cover adapter with an insert (bought separately) of the
required diameter depending on the outer diameter of the objective
lens of the day device.
The figures 42 mm, 50 mm, 56 mm in adapter's model name
correspond to the optical diameter of the lens of your day device.
Measure the outer diameter of the housing of the lens of your day
device and select an insert based on the data in the table below.
Example. If the lens diameter of your day device is 42mm, and the
measured outer diameter of the housing of the lens of your day device
is 47.2 mm, you need to use an insert with marking “Ø 47”.
Compatibility chart of inserts for day devices
Remove the cover (13) from the Cover by turning it counterclockwise.
Install the insert (14) into the adapter (15) all the way in (Fig.4)
Important! The insert must be installed with the narrowed part
facing downward.
Install firmly the adapter with the insert onto the objective lens (17) of
an day device (Fig.7).
Snap the lever (18) from the original OPEN position to the CLOSE
position (Fig.7). Check that the adapter firmly fits the objective lens.
If you see there is a clearance, please:
- Loosen the locking screw (19) with the hex-nut wrench (S=2mm).
42
50
56
59.7-60.6
60.7-61.6
61.7-62.6
60
61
62
62.7-63.6
63
64
63.7-64.6
65
64.7-65.6
46.7-47.6
47.7-48.6
48.7-49.6
47
48
49
49.7-50.6
50
54.7-55.6
55.7-56.6
56.7-57.6
55
56
57
57.7-58.6
58
59
58.7-59.6
45.5
45.5
46
46
46.5
46.5
51.6
51.6
53.4
53.4
Tighten the screw (20) with hex-nut wrench (S=4mm) with a clamping
force necessary to ensure that the adapter fits tightly the objective
lens.
Tighten the locking screw (19).
8
9
