4
THERMAL IMAGING SCOPE HELION 2 XP50 PRO

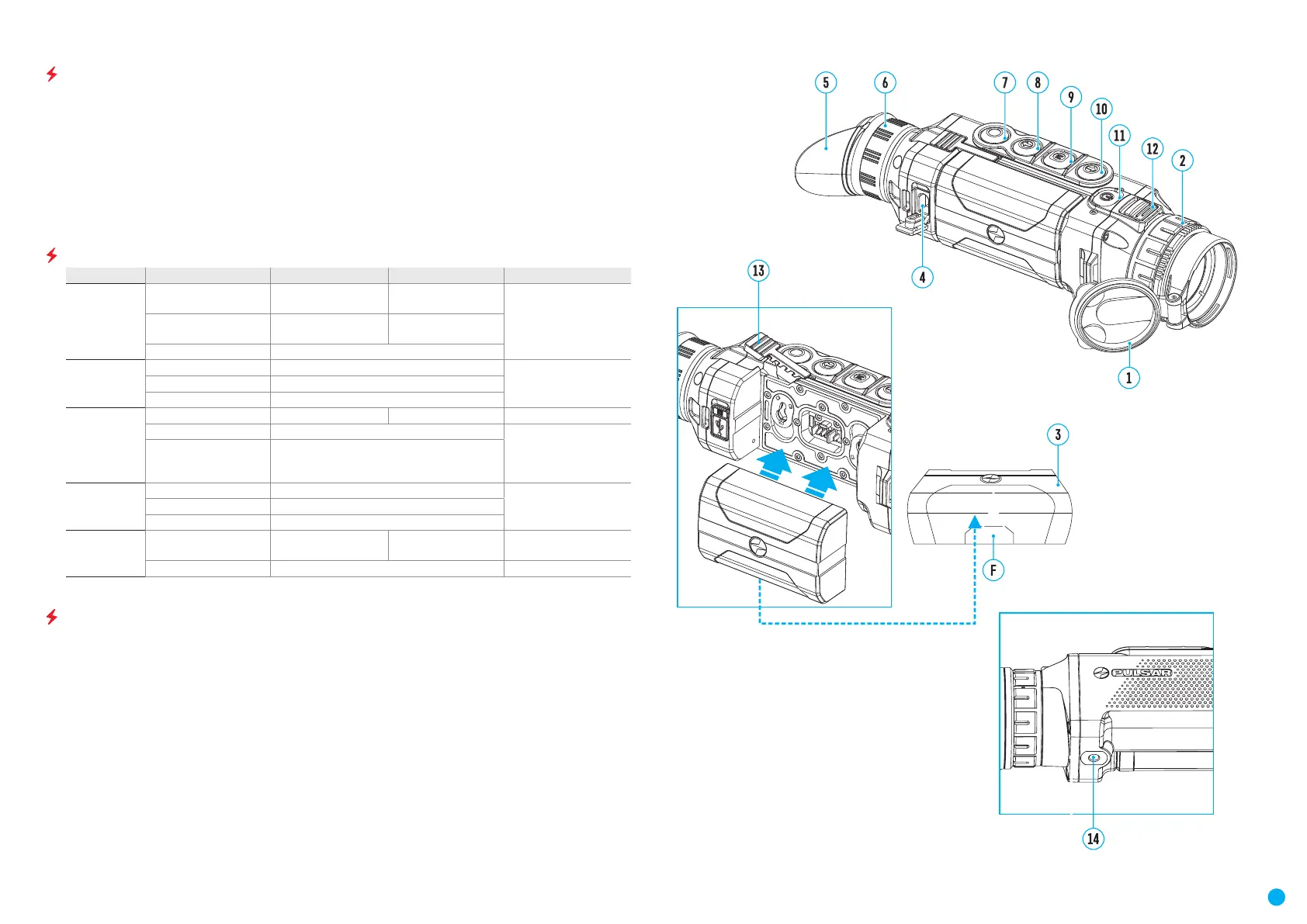

EXTERNAL VIEW AND CONTROLS
1. Lens cover
2. Lens focus ring
3. Battery Pack
4. Micro-USB connector
5. Eyeshade
6. Diopter adjustment ring
7. Record button REC
8. Navigation button DOWN
9. Button MENU
10. Navigation button UP
11. Activation / calibration button ON
12. Latch for lens change
13. Lever for Battery Pack
14. Tripod socket
DESCRIPTION OF CONTROLS
Button Device status First short press: Other short presses Long press:
Button
ON / OFF
(11)
Device is off Power device on Microbolometer
calibration
Turn display off / Power
device off
Display OFF mode Turn display on Microbolometer
calibration
Device is on Microbolometer calibration
Navigation
button
UP (10)
Regular (observation) Switch observation modes Switch colour palettes
Main menu Navigation up / right
Quick menu Change parameters
Button
MENU
(9)
Regular (observation) Enter quick menu Enter main menu
Main menu Conrm selection Exit submenu without
conrming selection
/ Exit menu (switch to
observation mode)
Quick menu Switch between quick menu options
Navigation
button
DOWN (8)
Regular (observation) Control discrete zoom PiP on / off
Main menu Navigation down / left
Quick menu Change parameters
Record
button
REC (7)
Video Start video recording Pause / resume video
recording
Stop video recording /
Switch to photo mode
Photo Take a photograph Switch to video mode
USING THE BATTERY PACK
Helion 2 PRO thermal imaging scopes are supplied with a rechargeable Li-Ion Battery Pack IPS7 which allows
operation for up to 8 hours. Please remember to charge the Battery Pack before rst use.
CHARGING
•
Lift the lever (C) of the charging base.
•
Remove the protective cover from the Battery Pack.
•
Insert the battery into the charger until it stops, as shown in Fig., lower the lever (C).
•
Upon installation, a green indicator (D) on the charger will start to glow and begin ashing:
once if the battery charge ranges from 0% to 50%;
twice if the battery charge ranges from 51 and 75%;
three times if the battery charge ranges from 76% to 99%.
•
If the indicator lights green continuously, the battery is fully charged. You can disconnect it from the charger.
•
To charge the battery, connect the micro-USB plug of the USB cable to port (E) of the charger.
•
Connect the plug of the USB cable to the mains adapter.
