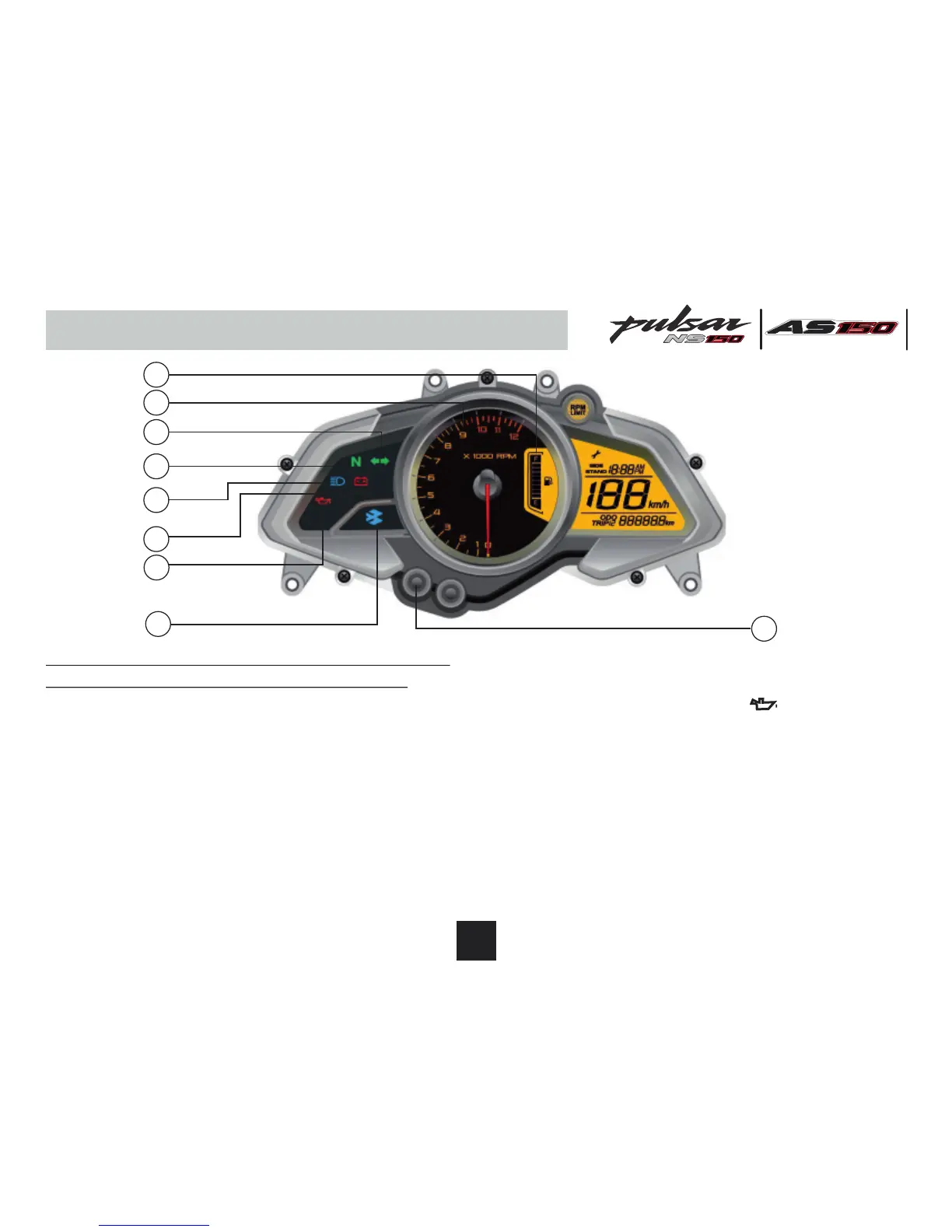

Speedometer Details
Speedometer display will work when, only both
Ignition switch & kill switch are in ‘ON’ position.
1. Fuel Level Indicator: It shows fuel level in fuel tank.
2. Tachometer Dial: It shows engine speed in RPM.
3. Turn Signal Indicator (LH & RH): When Turn signal
switch is turned to Left or Right, Turn pilot Indicator -
LH or RH will flash.
4. Neutral Indicator: When the transmission is in
Neutral, Neutral indicator will glow.
5. Hi Beam Indicator: When Headlight is ‘ON’ & Hi
beam is selected with engine running, Hi beam
indicator will glow.
6.
charging.
7. Low Oil Pressure Indicator ( ) : It blinks when
engine oil pressure is low.
8. Bajaj Logo : Bajaj logo flying ‘B’ continuously glows.
9. Mode Button : Mode button used for changing the
mode while selecting & setting Trip1, Trip2, ODO,
Clock & Service reminder.
Low Battery Indicator : It indicates battery needs
