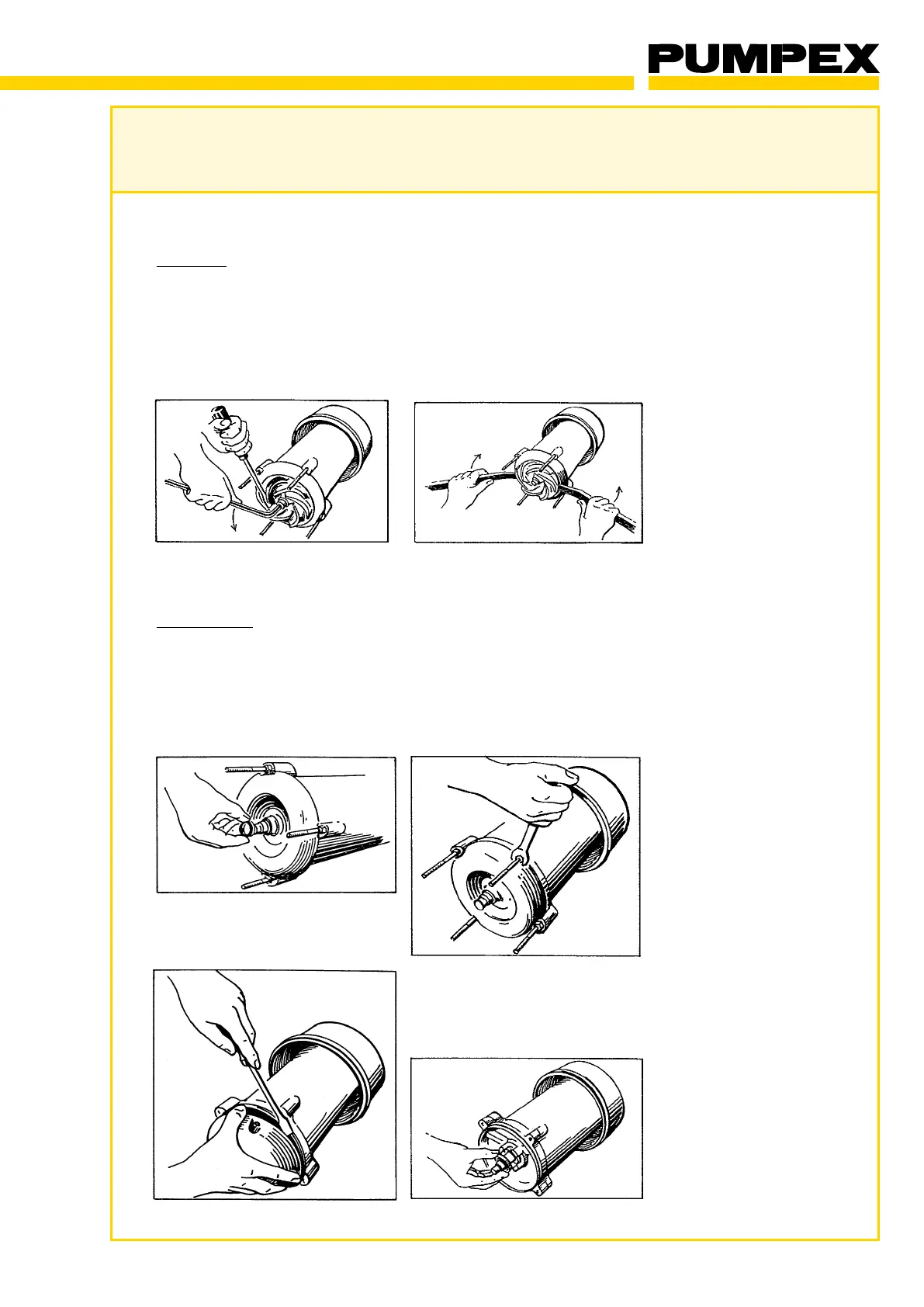

Impeller
Remove the rubber covers from the stud bolts. Hold the impeller with
a large screwdriver or similar between the vanes and unscrew the
impeller nut with an 8 mm Allen key.
Prize the impeller loose with two screwdrivers under the impeller hub.
Remove the key from the shaft. Replace if damaged.
Shaft Seals
Pull out the rotating ring of the primary seal with sleeve and spring and
remove the 0-ring from the shaft.
Unscrew the stud bolts. Withdraw the wear plate and remove the
stationary ring of the primary seal.
