SERVICE INSTRUCTION
P 601 - P 3001
P 601/701/801/1001/1501/2001/3001.58.0308.Eng/Digital
8 (22)

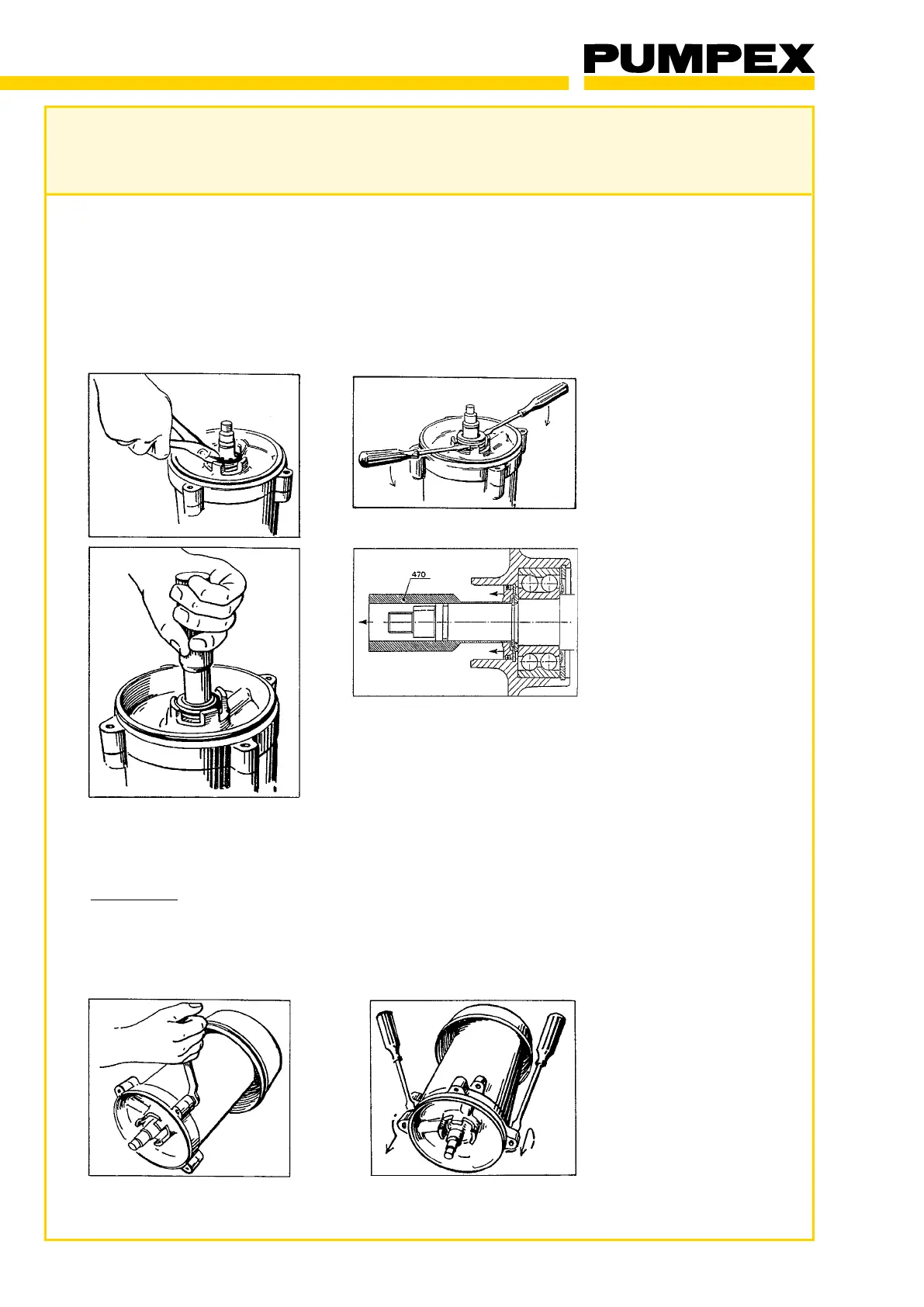

Cut the lock washer part No. 00471 with a pair of nippers. Pull out the
lock washer carefully in order to avoid scratching the shaft. Remove
any possible scratches before pulling out the rotating part of the
secondary shaft seal. Screw puller part No. 00470 into the stationary
ring of secondary seal and pull out the ring.
Rotor Unit
Unscrew the screws which hold stator housing and oil casing together.
Turn the housing about 15
o
and prize it loose from the casing with a
screwdriver. Remove the stator unit.
