3
1. Open box, remove the bits bag, seat, and rear leg from the cardboard insert.
Remove the cardboard insert.
2. Carefully pull the tank out of box.

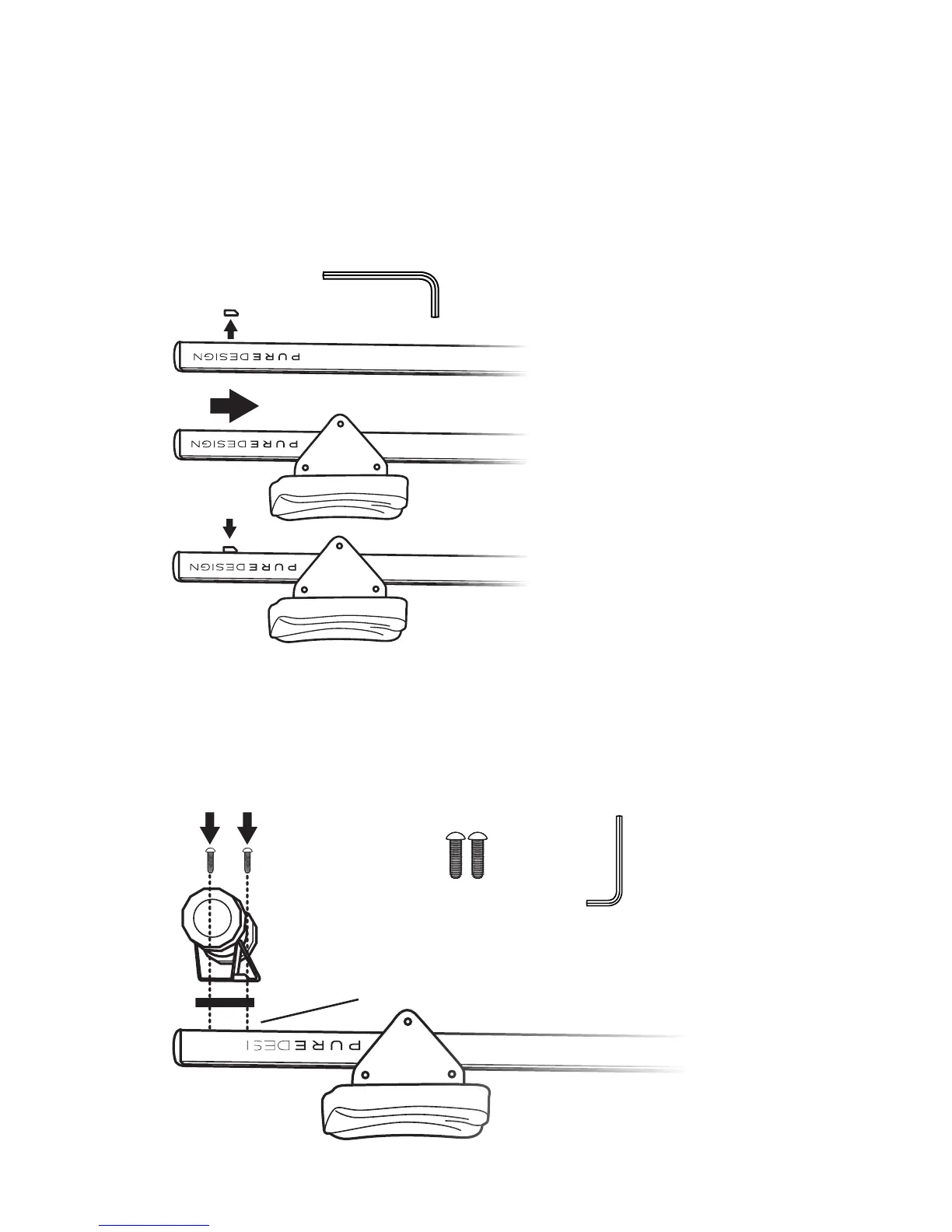

3. Using the Allen key, remove the stops from each side of the rail and slide the seat
onto the rail (front/wider end) rst. With the Allen key, replace the stops back
onto each side of the rail.
(E) 5mm Allen Key
4. Attach the rear leg to the underside of the rail using the Rear Leg Bolts (D).
Firmly tighten the bolts with the 5mm Allen key.
(D) Rear Leg Bolt (x2) (E) Allen Key
The rear leg should be perpendicular to the rail.
