FlashArray Quick Installation Guide
Before You Begin
Recommended clearance for the front (cold aisle) is 91.5 cm
(36 in.). The minimum requirement is 81.5 cm (32 in.).
Recommended clearance for the rear (hot aisle) is 91.5 cm
(36 in.). The minimum requirement is 61 cm (24 in.).
No special clearance is required on top, bottom, or sides.
Recommended clearance for rack posts is 74 cm (29 in.) (the
default on most racks). Minimum is 61 cm (24 in.), Maximum
is 81.25 cm (32 in.).
Document Conventions
Symbol Meaning
Potential for injury, physical damage, or loss of data
or array configuration information
Supplementary instruction
Best practice
For your information
Safety and Handling
Before you install the FlashArray, refer to FlashArray
Safety and Compliance.
Contacting Customer Support
For assistance, contact Pure Storage Support. You can
reach Support the following ways:
l Visit https://support.purestorage.com
l Email support@purestorage.com
l Call (800) 379-7873 in the U.S. For international sup-
port, see https://support.purestorage.com
Support is available 24 hours a day, seven days a week.
Estimated Installation Time
You should be able to install the FlashArray in approximately
one hour and 15 minutes.
Preparing for Installation
The FlashArray chassis weighs 37.8 kg (83.2 lbs.),
DirectFlash Shelves weigh 39.8 kg (85.8 lbs.), and
expansion shelves weigh 20 kg (44 lbs.) each. Make
arrangements for safe lifting during installation.
Make sure you install DirectFlash Modules, Flash Mod-
ules, or blanks after rack mounting each chassis. The
FlashArray chassis with modules installed weighs
43.2 kg (95.2 lbs.).
Make sure that the rack can support the total weight of all
installed equipment including cables and rails (approx-
imately 48.5 kg or 107 lbs.), and that the total weight is
within the floor loading limit.
Have all necessary Fibre Channel and Ethernet cables
(not supplied by Pure Storage) available.
Verify that front and rear rack mounting posts are
between 61 and 91 cm (24-36 in.) apart, and that you
have 3 RU (13.3 cm or 5.25 in.) of vertical rack space for
the FlashArray chassis and 2 RU (8.9 cm or 3.5 in.) for
each expansion shelf.
Verify that the installation environment
l Is within the operating temperature range of 5-35°C.
l Does not have airflow ducts aimed directly at any
FlashArray chassis, controller, or shelf.
Have a local console (VGA monitor and USB keyboard
or a computer with terminal emulation capability) avail-
able in case it is required for software configuration or
diagnosis.
Make sure that cable lengths are adequate by mounting
the chassis and shelves in a contiguous stack as shown
in the DirectFlash Shelf, Expansion Shelf, and Add-on
Shelf Quick Installation Guides.
Before unpacking, inspect packages for shipping dam-
age. If damage is present, photograph it and contact
Pure Storage Technical Support before proceeding.
Save cartons and packing material in case return ship-
ment to Pure Storage is necessary.
Save all tools in FlashArray kit.
1. Unpack the FlashArray

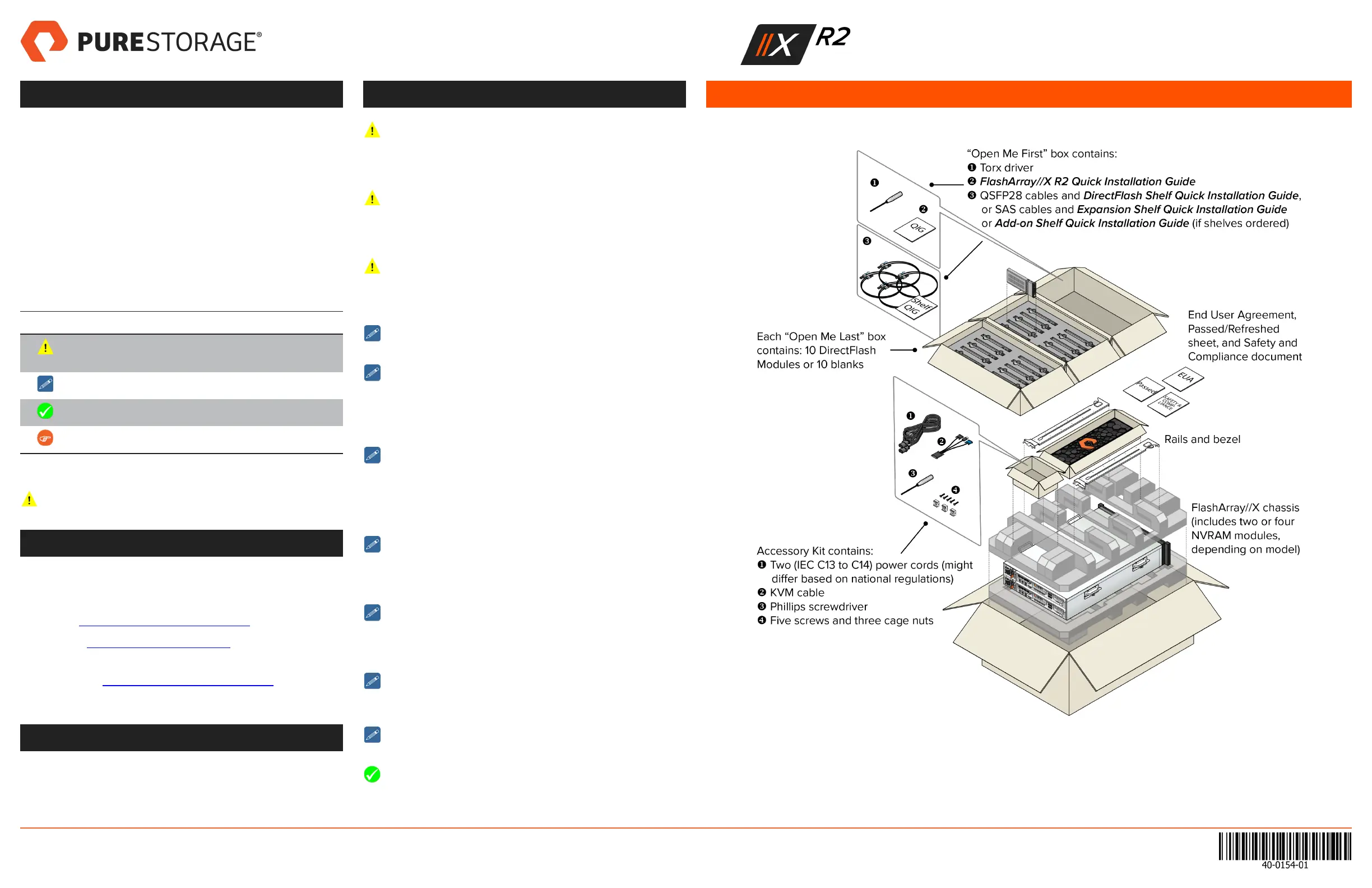

Verify that the FlashArray package contains the items shown in Figure 1.
Figure 1. Unpacking the FlashArray
If storage shelves are included, refer to the DirectFlash Shelf Quick Installation Guide, Expansion Shelf Quick Installation
Guide, or Add-on Shelf Quick Installation Guide (in the "Open Me First" box) for the list of contents in the shelf package.
40-0154-01 Page 1 of 6
