Programming
6.1 Plug into an uninterrupted electrical outlet.
Note: the system transformers are not weather resistant and should be
adequately protected. All electrical connections must be connected accordingly to
local codes.
6.2 Proceed to ‘Programming’ section.
9

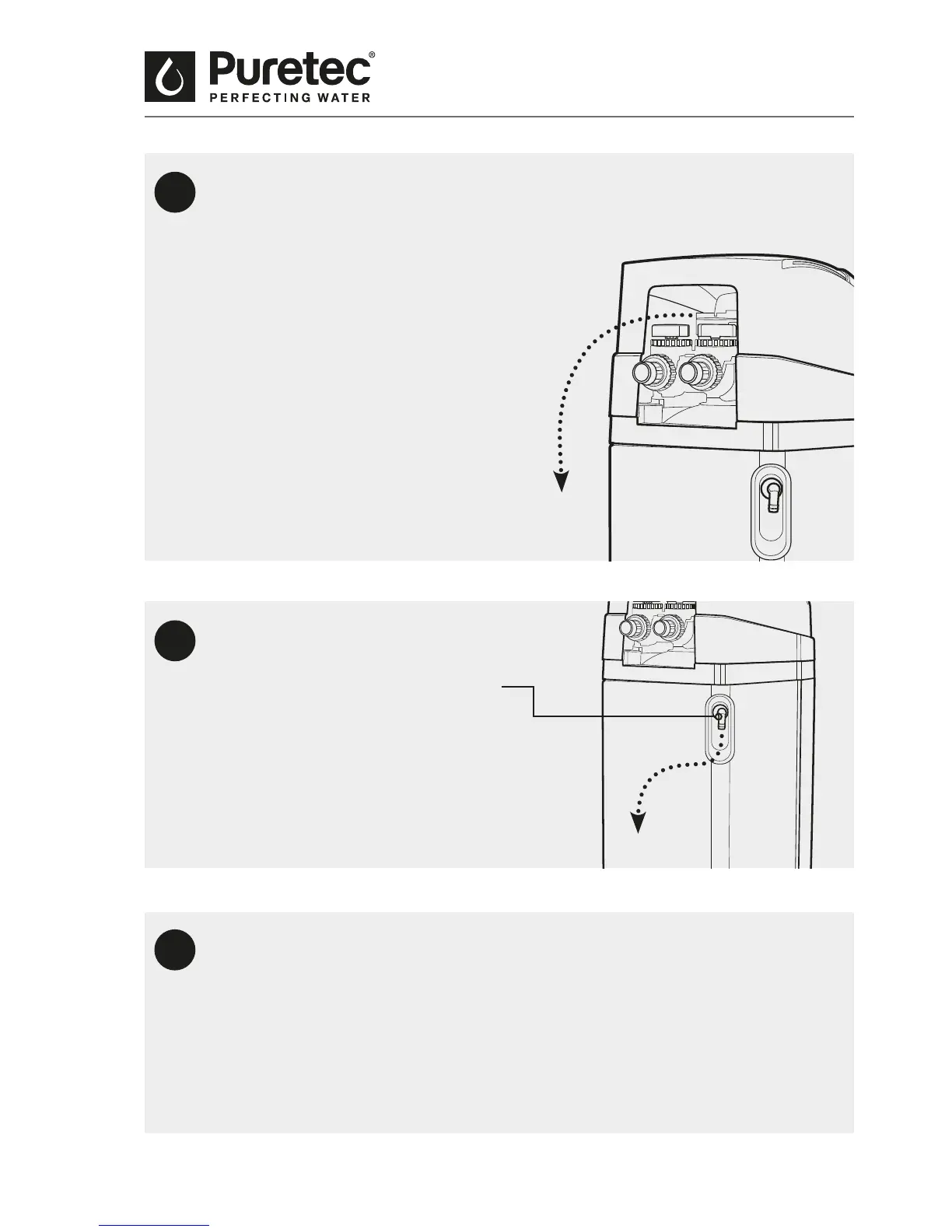

Connecting the Drain Line
Locate the 300 mm drain tube and attach to the drain connection, refer to page 9 for
identication of the drain port.
Connecting the Overow
7
8
Connect tubing onto the 5/8” overow
tting (tubing not supplied) and run the
line to the drain. Do not connect the
overow into the drain line, as it must
be a direct and separate line to the
drain. Allow an air gap as per the drain
line. Make sure the drain is not higher
than the overow.
Connect extra tube (tubing not supplied)
onto the 5/8” drain line from the valve
to the drain. Ensure the drain line is not
kinked. The line must not travel more
than 2.4 m up from the valve, otherwise
increase the diameter of the drain line.
Connect drain and overow to sewer or
storm water, whatever is approved by
local authority for salty discharge water.
Ensure drain line has an adequate air gap
of 2 times the pipe diameter or 25 mm,
whichever is larger.
DRAIN
DRAIN
Installation Procedure
