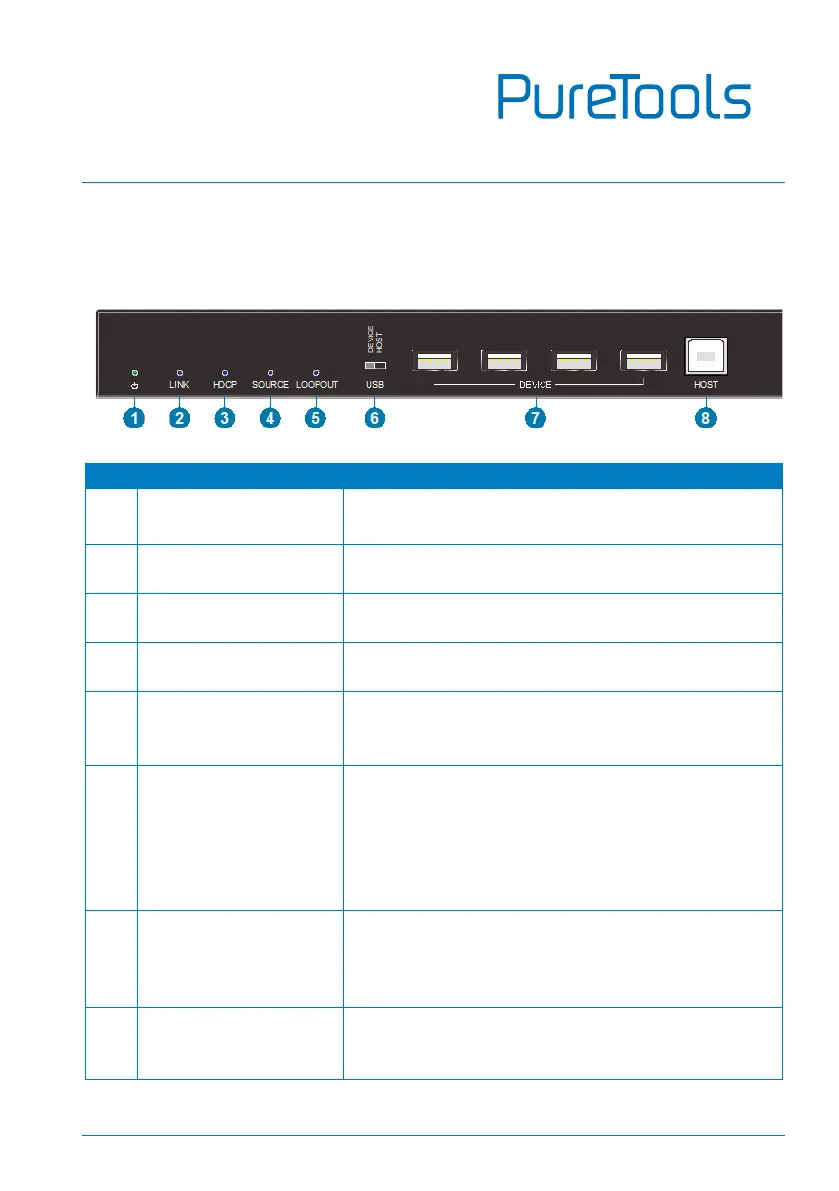

Illuminates green when power is applied, or blinks
when in firmware upgrade mode.
Illuminates when there is a valid HDBaseT link
between the transmitter and the receiver.
Illuminates when the video contains HDCP content,
or blinks when the video has no HDCP content.
Illuminates when there is an HDMI source device is
connected to HDMI input port.
Illuminates when both HDMI source device and
HDMI display device (HDMI loop out port) are
connected.
DIP switch for DEVICE or HOST mode selection.
DEVICE: The USB devices at transmitter
position are used to control the HOST PC at
receiver position.
HOST: The HOST PC at transmitter position is
controlled by the USB devices at receiver position.
Four type-A USB 2.0 ports for USB devices (e.g.
Mouse, Keyboard and Camera) connection to
control the PC which is connected to the HOST port
of receiver.
Type-B USB 2.0 port for PC connection. The PC can
be controlled by the USB devices which are
connected to type-A USB 2.0 ports of receiver.
To Next Page
