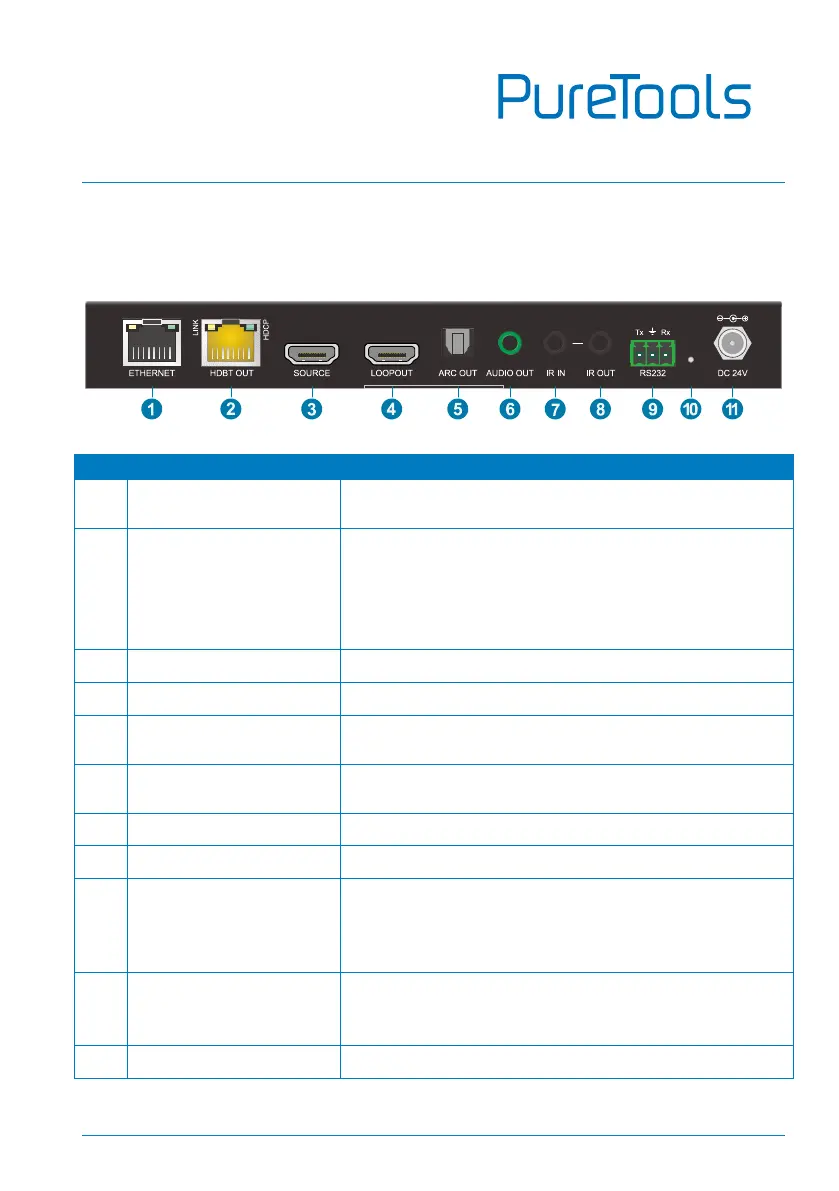

Used for Ethernet extension together with the
ETHERNET port of receiver.
RJ45 port to connect the HDBT input port of receiver
by CAT6A Ethernet cable. The LINK LED illuminates
when there is a valid HDBaseT link between the
transmitter and the receiver. The HDCP LED
illuminates when the video contains HDCP content.
Connects to HDMI source device.
Connects to HDMI display device.
Connects to audio player (e.g. amplifier) for ARC
audio output.
Connects to audio player (e.g. amplifier) for audio
de-embedding from HDMI input.
Connects to the IR receiver for IR pass-through.
Connects to the IR emitter for IR pass-through.
Connects to RS232 control device (e.g. PC) or a
third-party device for RS232 control.
Press the button with paper clip or other sharp tool
for 3s to enter firmware upgrade mode. Press the
button for 3s again can exit the mode.
DC connector for the power adapter connection.
