PurTest PT-8 - Parts Breakdown PT-12; PT-12 Component Identification

11

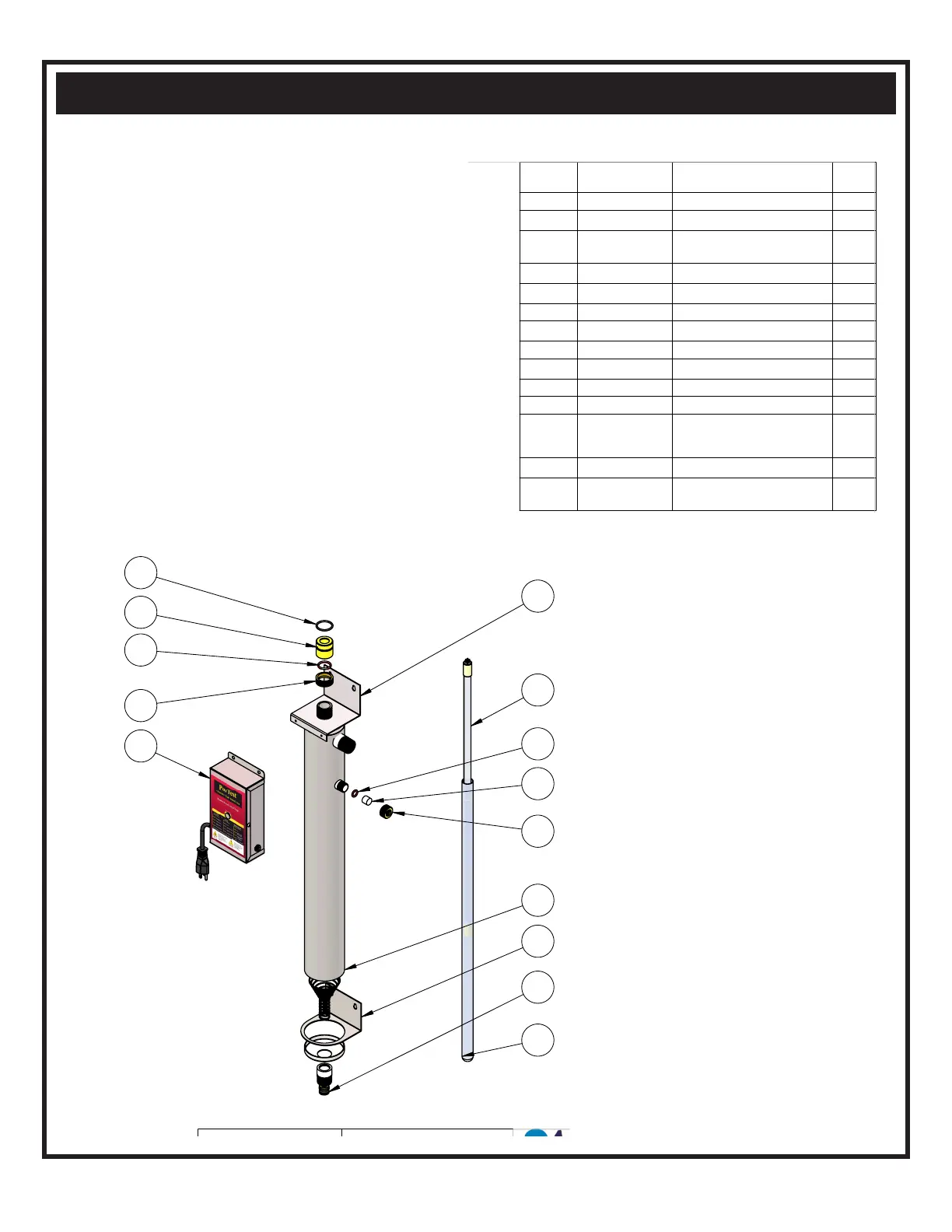

Parts Breakdown PT-12
6
8
13
3
5
2
11
1
12
14
7
9
4
10
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1 PT1-759D Domed Quartz 1
2
PT4-739 UV Lamp 1
3
PT-5173
Orange .7" OD
Viewport O Ring
1
4
PT-5172 Sightport Lens 1
5
PT-5171 Sightport Nut 1
6
PT5-410 Lock Nut 1
7
PT8-544 Orange 1.2" OD ORing 1
8
PT5-409 Brass End Nut 1
9
PT8-546 Black 1.5" OD ORing 1
10 PT-279 279 Control Box 1
11 PT-12GPM 12 GPM Flow Control 1
12 PT-12GPM
12 Gallon Per Minute
Feed Assembled
Chamber
1
13
PT-268
Top Mounting Bracket 1
14 PT-269
Bottom Mounting
Bracket
1
PT-12 CUSTOMER BOM
A
7/9/15
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
.25"
TWO PLACE DECIMAL
.010"
THREE PLACE DECIMAL
.002"
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
AQUA TREATMENT SERVICES. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
AQUA TREATMENT SERVICES IS
PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
A
DRAWN TDB
1
2
3
4
5
MATERIAL
FINISH
CHECKED
ENG APPR.
MFG APPR.
DATE NAME
TITLE
SIZE DWG. NO. REV
WEIGHT: SCALE: SHEET 1 OF 1
DO NOT SCALE DRAWING
