PurTest PT-8 - Parts Breakdown PT-20; PT-20 Component Identification

12

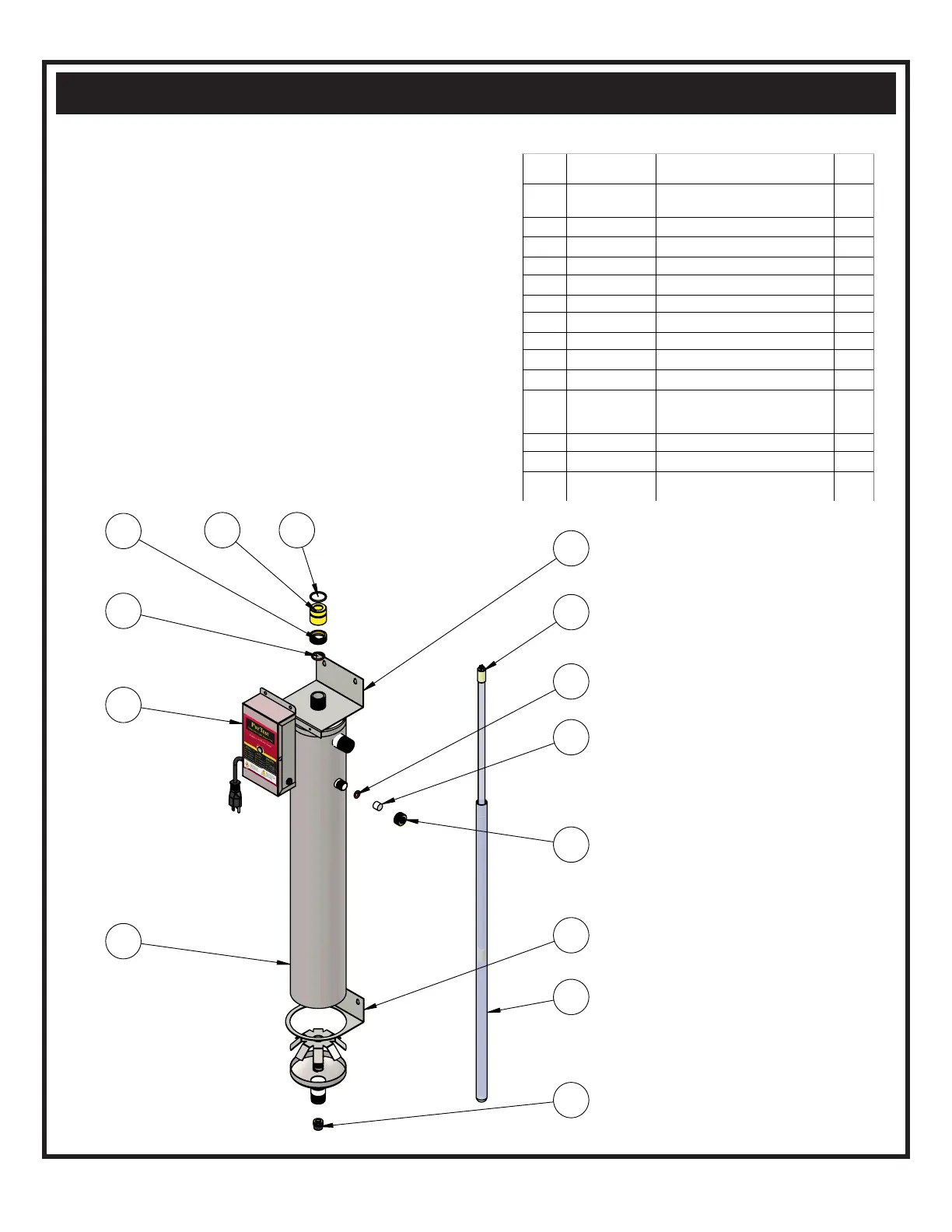

Parts Breakdown PT-20
6
4
2
3
8
9
1
5
7
12
11
10
13
14
ITEM
NO.
PART
NUMBER
DESCRIPTION QTY.
1 PT-5173
Orange .7" OD Viewport
O Ring
1
2
PT-5172 Sightport Lens 1
3
PT-5171 Sightport Nut 1
4
PT5-410 Lock Nut 1
5
PT8-544 Orange 1.2" OD ORing 1
6
PT5-409 Brass End Nut 1
7
PT8-546 Black 1.5" OD ORing 1
8
PT-832D Domed Quartz 1
9
PT4-810 UV Lamp 1
10 PT-270 Top Mounting Bracket 1
11 PT-20GPM
20 Gallon Per Minute
Bottom Feed Assembled
Chamber
1
12 PT-279 279 Control Box 1
13 PT-271 Bottom Mounting Bracket 1
14 PT-20GPM 20 GPM Flow Control 1
DO NOT SCALE DRAWING
SHEET 1 OF 1 SCALE: WEIGHT:
REV DWG. NO. SIZE
TITLE
NAME DATE
MFG APPR.
ENG APPR.
CHECKED
FINISH
MATERIAL
5
4
3
2
1
TDB DRAWN
A
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
AQUA TREATMENT SERVICES. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
AQUA TREATMENT SERVICES IS
PROHIBITED.
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
.25"
TWO PLACE DECIMAL
.010"
THREE PLACE DECIMAL
.002"
UNLESS OTHERWISE SPECIFIED:
7/9/15
A
PT-20 CUSTOMER MANUAL
6
4
2
3
8
9
1
5
7
12
11
10
13
14
ITEM
NO.
PART
NUMBER
DESCRIPTION QTY.
1 PT-5173
Orange .7" OD Viewport
O Ring
1
2
PT-5172 Sightport Lens 1
3
PT-5171 Sightport Nut 1
4
PT5-410 Lock Nut 1
5
PT8-544 Orange 1.2" OD ORing 1
6
PT5-409 Brass End Nut 1
7
PT8-546 Black 1.5" OD ORing 1
8
PT-832D Domed Quartz 1
9
PT4-810 UV Lamp 1
10 PT-270 Top Mounting Bracket 1
11 PT-20GPM
20 Gallon Per Minute
Bottom Feed Assembled
Chamber
1
12 PT-279 279 Control Box 1
13 PT-271 Bottom Mounting Bracket 1
14 PT-20GPM 20 GPM Flow Control 1
DO NOT SCALE DRAWING
SHEET 1 OF 1 SCALE: WEIGHT:
REV DWG. NO. SIZE
TITLE
NAME DATE
MFG APPR.
ENG APPR.
CHECKED
FINISH
MATERIAL
5
4
3
2
1
TDB DRAWN
A
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
AQUA TREATMENT SERVICES. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
AQUA TREATMENT SERVICES IS
PROHIBITED.
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
.25"
TWO PLACE DECIMAL
.010"
THREE PLACE DECIMAL
.002"
UNLESS OTHERWISE SPECIFIED:
7/9/15
A
PT-20 CUSTOMER MANUAL
