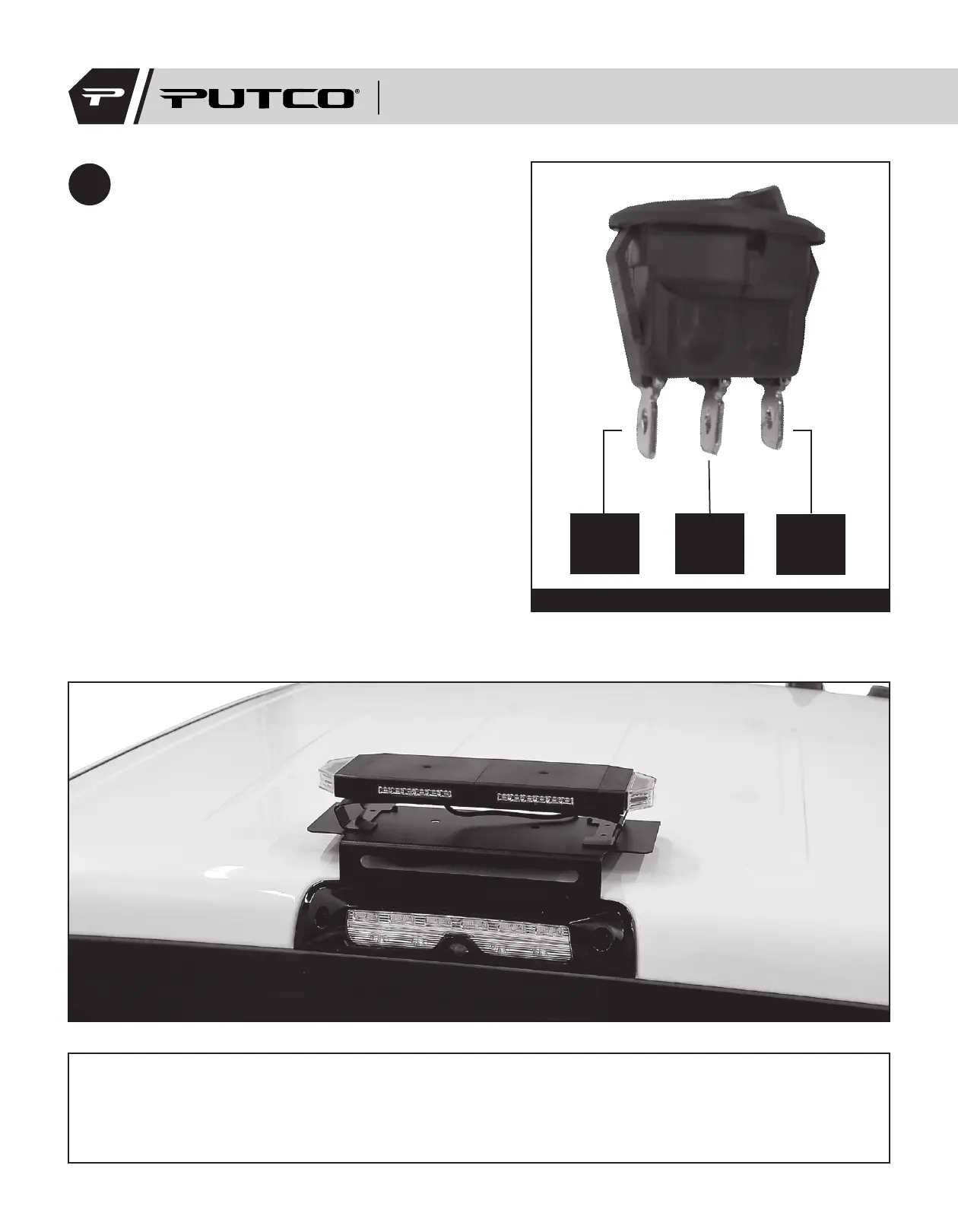

To wire the switches properly, refer to the
wiring diagram in Figure 7.
Figure 7: Switch wiring diagram.
Ground
(Gold post
on switch)
+12V
From
Batttery
Acc.
Red Wire
from
Hornet
NOTE: When the switch is configured correctly it
should function as follows: The primary switch, or the
switch hooked up to the red wire, controls power to
the Hornet light. This switch will turn the light on and
off. To switch modes, the primary switch must be in
the ON position. While the Hornet light is receivng
power via the red wire, give 12V power to the yellow
wire If it does not change modes, check to make sure
that the light is receiving power from the primary
switch. The light will remember the mode even with
the switch turned off.
Your new Hornet is now successfully installed on your vehicle!
