Pyle PDA 4800 User Manual

2 Channel Amplifer - Applications
PDA 3000/PDA 6000

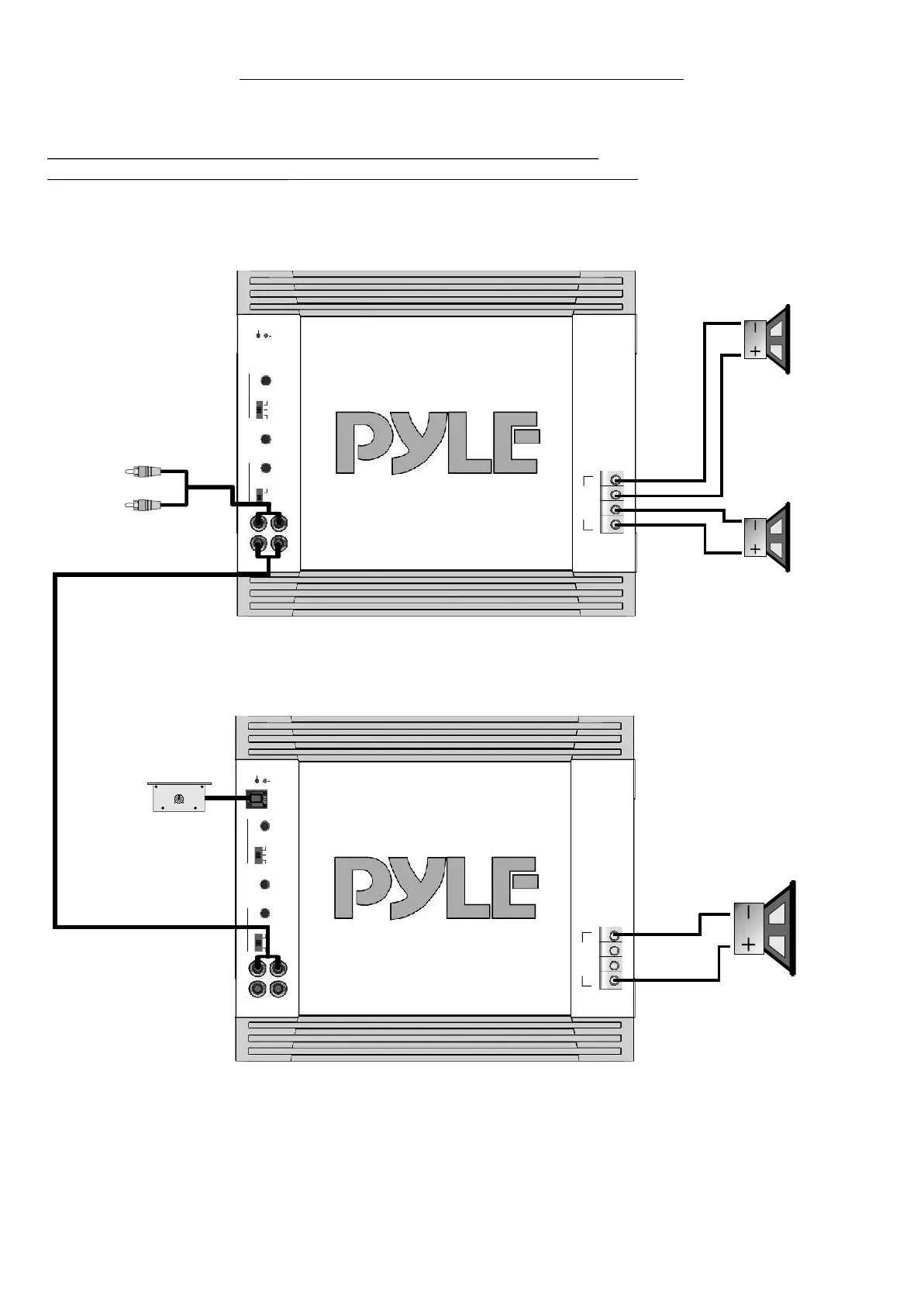

One 2 Channel Amplifier in Stereo Mode (Front Amplifier) with
One 2 Channel Amplifier in Mono/Subwoofer Mode (Rear Amplifier)
25
Subwoofer 4 - 8 Ohms
Connect cable from
REMOTE CONTROL with
the input jack from the
amplifier (only PDA 6000).
Speakers (Left) 2 - 8 Ohms
Speakers (Right) 2 - 8 Ohms
Connect RCA cable from
head-unit with RCA input
(INPUT).
Bass (Rear) Amplifier
Connect OUTPUT of Stereo
Amplifier with INPUT of
Bass Amplifier.
Stereo (Front) Amplifier
25
+ RIGHT - + LEFT -
+ BRIDGED -
REMOTE
CONTROL
BASS
BOOST
FREQ
ADJUST
INPUT
LEVEL
MODE
SELECT
X-OVER
SELECT
POWER
PROTECT
• •
0dB 12dB
• • • •
50Hz 250Hz 5V 0.2V
LP FULL HP STEREO MONO
INPUT OUTPUT
R
L
R
L
CONTROL PANEL
REMOTEREMOTE
0dB 12dB
+ RIGHT - + LEFT -
+ BRIDGED -
REMOTE
CONTROL
BASS
BOOST
FREQ
ADJUST
INPUT
LEVEL
MODE
SELECT
X-OVER
SELECT
POWER
PROTECT
• •
0dB 12dB
• • • •
50Hz 250Hz 5V 0.2V
LP FULL HP STEREO MONO
INPUT OUTPUT
R
L
R
L
CONTROL PANEL
