Pyle PDA 4800 User Manual

MODE
SELECT
STEREO MONO
INPUT
LEVEL
• •
5V 0.2V
FREQ
ADJUST
• •
50Hz 250Hz
BASS
BOOST
• •
0dB 12dB
X-OVER
SELECT
LP FULL HP
X-OVER
SELECT
LP FULL HP
BASS
BOOST
• •
0dB 12dB
FREQ
ADJUST
• •
50Hz 250Hz
INPUT
LEVEL
• •
5V 0.2V
MODE
SELECT
4CH 2CH
CONTROLS CH3/4 CONTROLS CH1/2
INPUTINPUT
OUTPUT
CH1
CH2
CH3 CH4
+ CH1 - + CH2 - + CH3 - + CH4 -
+ BRIDGED -+ BRIDGED -
+ RIGHT - + LEFT -
+ BRIDGED -
REMOTE
CONTROL
BASS
BOOST
FREQ
ADJUST
INPUT
LEVEL
MODE
SELECT
X-OVER
SELECT
POWER
PROTECT
• •
0dB 12dB
• • • •
50Hz 250Hz 5V 0.2V
LP FULL HP STEREO MONO
INPUT OUTPUT
R
L
R
L
CONTROL PANEL
REMOTEREMOTE
0dB 12dB
4 Channel Amplifier - Applications
PDA 4400/PDA 4800

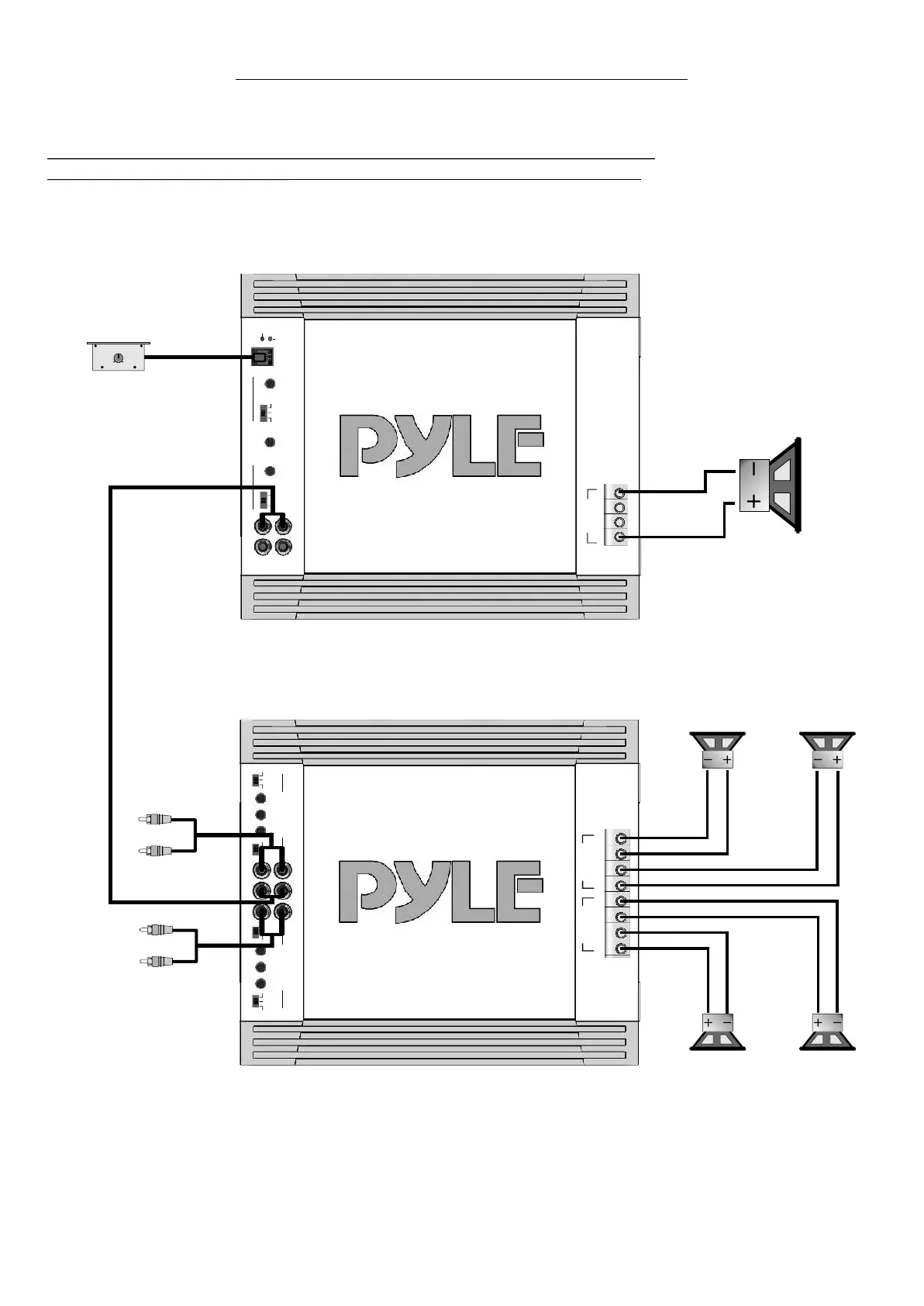

One 4 Channel Amplifier in Stereo Mode (Front-/Rear- Speakers) with
One 2 Channel Amplifier in Mono/Subwoofer Mode (Bass Amplifier)
Connect RCA outputs from
head-unit with RCA inputs
(INPUT CH1/2 and CH3/4).
Connect OUTPUT of 4
Channel Amplifier with
INPUT of Bass Amplifier.
Subwoofer 4 - 8 Ohms
Front-Speakers 2 - 8 Ohms
Rear-Speakers 2 - 8 Ohms
Connect cable from REMOTE
CONTROL with the input jack
from the amplifier (only PDA
6000).
31
