1.8 UNIT INSTALLATION
Description of Connecting the Parking Brake Line to the Parking Brake System Built in the Car
Parking brake
Parking b rake switch
(inside the c ar)
Parking brake line(green)
To metallic body or chassis of the car
NOTE: after connecting the Parking Line, the video on the small monitor of the front panel will be display only after br aking the car.

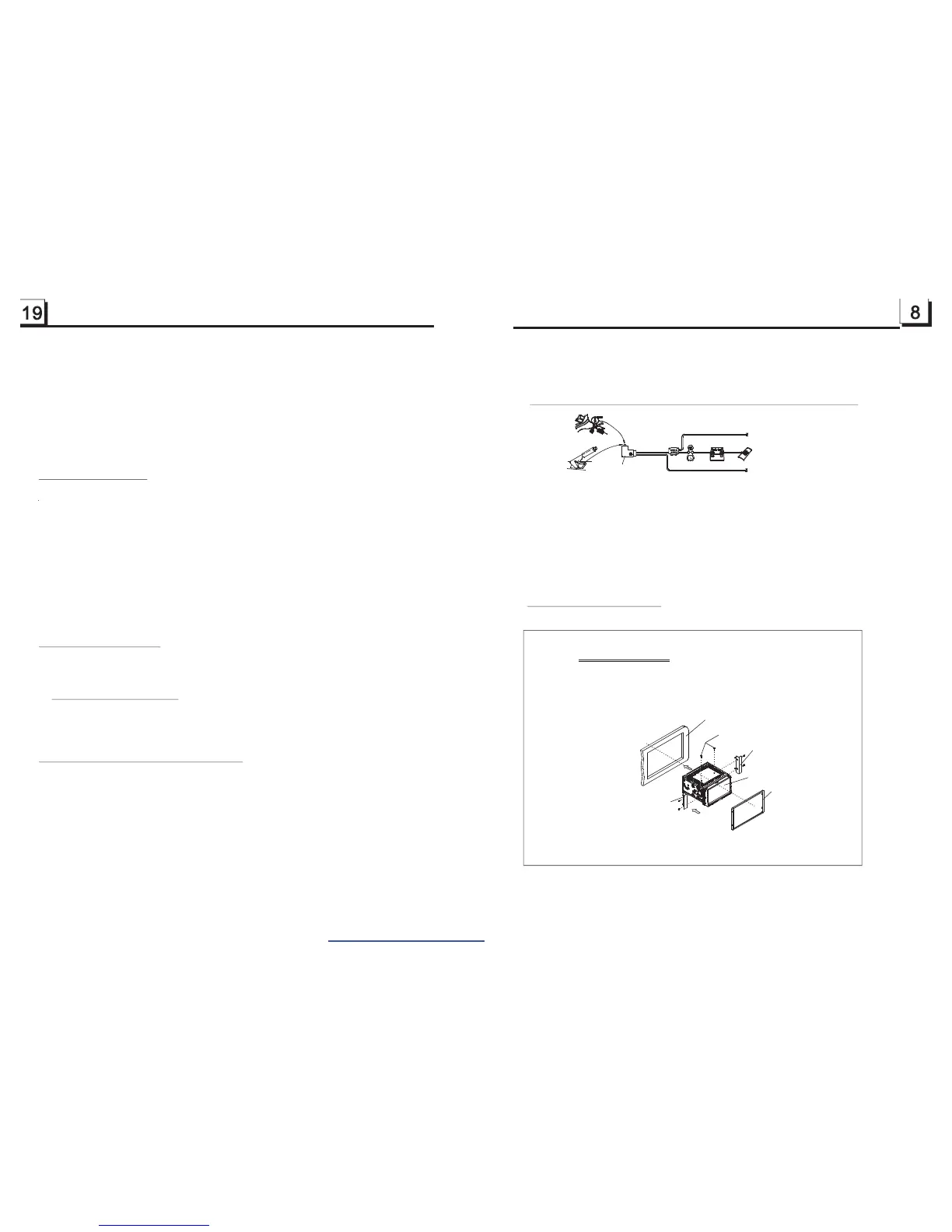

INSTALLATION INSTRUCTIONS
DASH BOARD
PLASTIC FRAME
1)RE MOVE THE 2 DECK TRANSPO RT SCREWS BEFORE INSTALLATIO N.
2)PLEASE DO THE CONNECTION OF TH E POWER, SPEAKERS AND ANTENNA
ACCORDING TO TH E REQUIREMENT OF TH E INSTRUCTION BOOK .
3)IF THE LEFT AND RIGHT INSTALLATION BRACKETS SU PPLIED BYFACTORY
ARE FIT FORYOUR CAR, PLEASE FIX THEM ON THE CHASSIS AND THEN
FIX THE UNIT IN THE CAR WITH SCRE WS ACCOR DING TO THE FOLLOWING
DIAG RA M ; OT H E RW ISE, P L EAS E U SE THE L EF T A ND RI GHT I NSTA LL AT I O N
BRACKETS SUPPLIED BY YOUR CAR SUPPLIER.
RIGH T INSTALLATION BRACKET
LEFT INSTALLATION BRACKET
COMPLETED UNIT
TRANSPORT SCREWS
3. During IMAGE playback, press one of the >/</^/v buttons to change the angle of
viewing picture that is displaying as follows:
>: 90 deg cw; <: 90deg ccw; ^:UP<-->DOWN; v: LEFT<-->RIGHT
During IMAGE playback, press the PROG button to change the mode of refresh picture.
During IMAGE playback, press the STOP button to stop playing and return to the root
menu.
* During IMAGE playback, the following buttons are not available: SLOW-FWD,
SUBTITLE, TITLE, ANGLE, AUDIO, RDM, INT and A-B.
* In IMAGE mode, the other operations are same as ones in MP3/WMA mode.
1. The root menu is displayed on TV when beginning to switch on Mp4 mode, then it will
automatically play the first file.
During playback, press the STOP button to stop playing and return to the root menu.
2. When displaying the root menu, press the direction buttons to select your desired
FOLDER ,file or file sort icon, then press the OK or PLAY button to open the FOLDER,
open the files of the file sort icon or play the selected file.
When displaying the root menu, you can also use the number buttons to select the
serial number of the file and play the file.
* The ANGLE, PROG, RDM, INT and TITLE/PBC button are not valid.
* The other functions are same as ones in DVD mode; but the RPT function is same as
one in MP3/WMA mode.
There is ESP function for all formats of discs.
In MP3/WMA mode, during playback, the information of the file name, folder name,
will be scrolling on the LCD display. As long as the
current playing music contains relevant tag information in version 1.0/2.0
format, the 3 items underlined above will be scrolling on the LCD display; otherwise,
they will not.
1. Press the SETUP button on the remote control to access the DVD System Menu on
the monitor.
2. There are 6 setup pages in all for the System Menu. Press the > or < button to select
an desired setup page.
3. Press the ^ or v button to select an setup item in the selected setup page.
4. Press the > button to enter the setup item. Then press the v or ^ button to select a
desired mode of the setup item, finally press the OK button to confirm it.
* Press the < button to return to the upper level.
* Press the SETUP button again or use the direction buttons to highlight the item of the
EXIT SETUP and then press the OK button to exit the System Menu.
4.22 Playback MP4 files
4.23 ESP and Function
song s title, artist and album
4.24 The DVD System Menu Setup Operation
ID3
MP3 ID3
