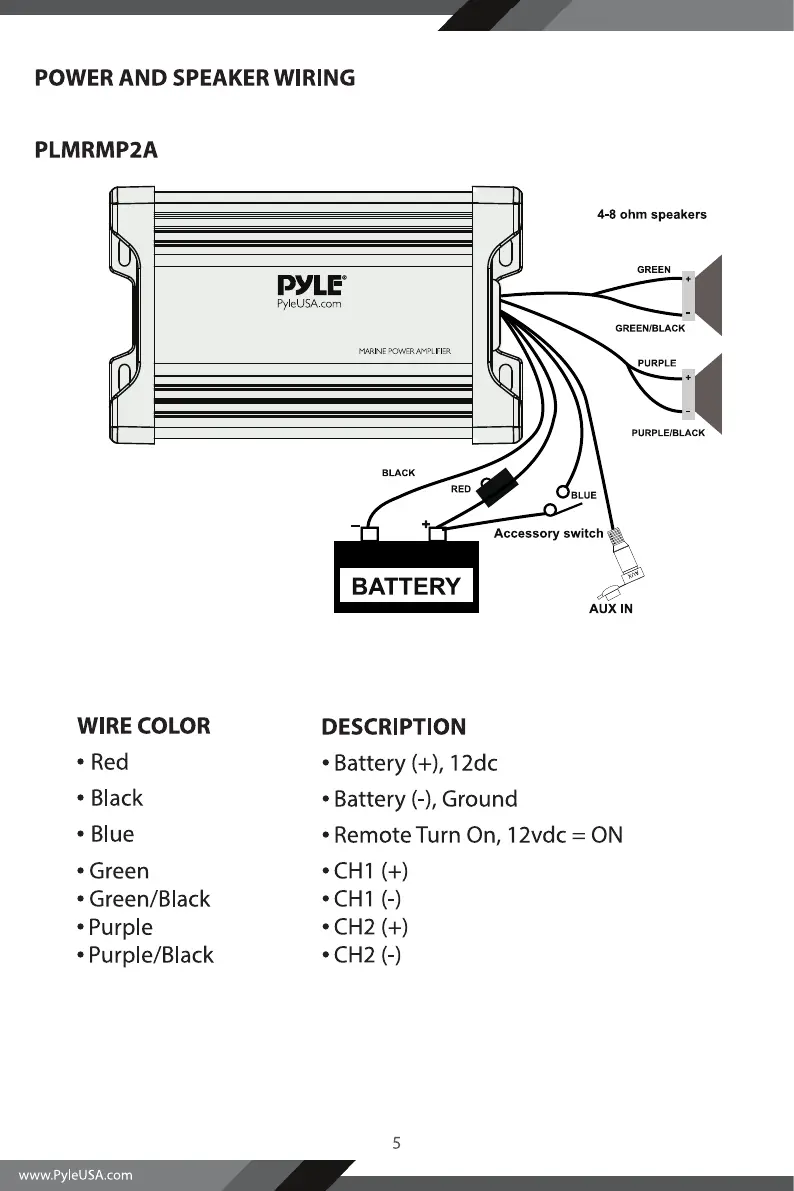

POWER AND SPEAKER WIRING
PLMRMP2A
WIRE COLOR
Red
• Black
• Blue
• Green
• Green/Black
• Purple
• Purple/Black
www.PyIeUSA.com
4-8 Ohm speakers
GREEN
PYLE
PyelJSA.com
GREEN/BLACK
MARINE PONER AMPLIFIER
PURPLE
PURPLE/BLACK
BLACK
RED
BLUE
Accessory switch
BATTERY
AUX IN
DESCRIPTION
• Battery (+), 12dc
• Battery (-), Ground
• Remote Turn On, 12vdc = ON
•CHI (+)
•CHI (-)
• CH2 (+)
• CH2 (-)
