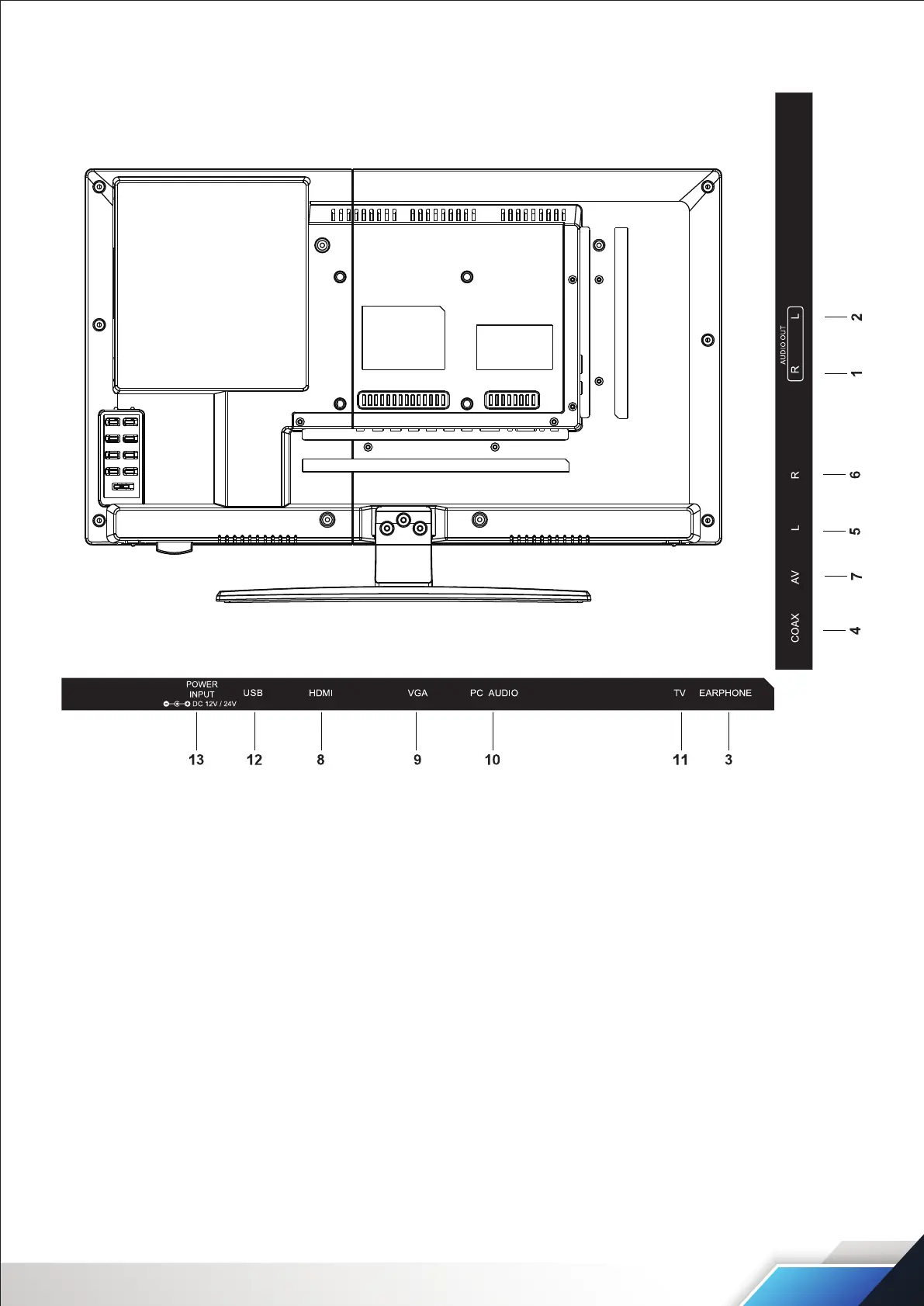

CONNECTIONS
1/2. Audio output to connect power amplier stereo equipment.
3. Connect a stereo headphone (3.5mm) for private listening.
4. Connect an optional coaxial digital cable through a compatible amp/receiver to enjoy superior
audio sound.
5/6/7. Connect to an AV device that features component video and audio output jacks.
8. Connect it to the HDMI of DVD or other equipment.
9. Connect an optional VGA cable from your personal computer.
10. Connect an optional 3.5mm audio cable for sound when using VGA.
11. Connect antenna or cable for television reception.
12. For service technician use only.
13. Connect to the mains adaptor or the car adapter (Input for the 12V/24V power supply)
